FRONT FORK

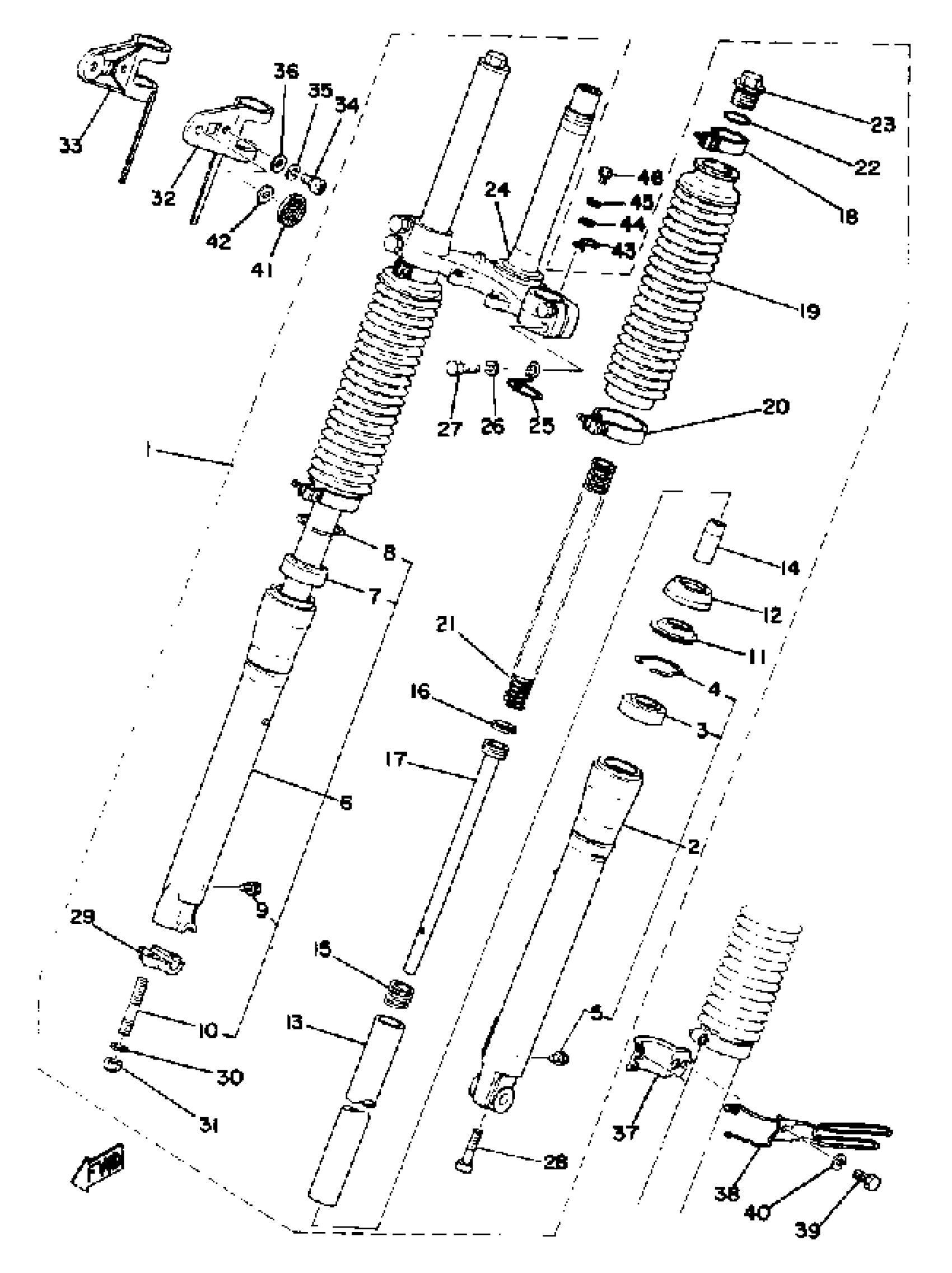

Yamaha DT175E (DT175E) 1978 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
2A8-23101-40-00
Unavailable
2
TUBE, OUTER 1
(2A6-23126-00-38)
Unavailable
6
TUBE, OUTER 2
(2A6-23136-00-38)
Unavailable
10
.. BOLT, STUD
90116-08260-00
Unavailable
12
. GUIDE, BOOT
2A6-23193-00-00
Unavailable
13
. TUBE, INNER 1
2A6-23124-00-00
Unavailable
14
. SPACER, OIL LOCK
1L9-23166-00-00
Unavailable
15
SPRING, REBOUND
(2A6-23151-00-00)
Unavailable
16
. RING, PISTON FRTFRK
2A6-23157-00-00
Unavailable
17
CYLINDER, FRTFRK
(2A6-23170-00-00)
Unavailable
18
BAND
3RW-23192-00-00
Unavailable
19
. BOOT, FRONT FORK
2A6-23191-00-00
Unavailable
20
. BAND
2A6-23489-01-00
Unavailable
21
. SPRING, FRONT FORK
2A6-23141-00-00
Unavailable
22
O-RING
(2A6-23147-00-00)
Unavailable
23
BOLT, CAP
(2A6-23111-00-00)
Unavailable
24
. UNDER BRACKET (2A6-23340-00-33)
2A6-23340-00-90
Unavailable
25
. HOLDER, CABLE
2A6-23317-00-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
BOLT(3JP)
97024-08035-00
Unavailable
28
BOLT
3M7-23181-00-00
Unavailable
29
HOLDER, AXLE
(2A6-23167-01-00)
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
32
STAY, HEADLIGHT 1
2A6-84118-00-00
Unavailable
33
STAY, HEADLIGHT 2
2A6-84119-00-00
Unavailable
34
SCREW PAN HEAD
98580-06020-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
37
HOLDER, CABLE 2
2A6-23319-00-00
Unavailable
38
HOLDER, CABLE 1
2A6-23318-00-00
Unavailable
39
BOLT, HEXAGON
97017-06020-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
REFLECTOR, FRONT 1
355-85111-01-00
Unavailable
42
WASHER, PLATE(3AJ)
90202-05191-00
Unavailable
43
CLAMP
(2A6-83595-00-00)
Unavailable
44
WASHER, PLAIN (646)
92990-06600-00
Unavailable
45
WASHER, SPRING
92995-06100-00
Unavailable
46
BOLT (661)
97013-06012-00
Unavailable
