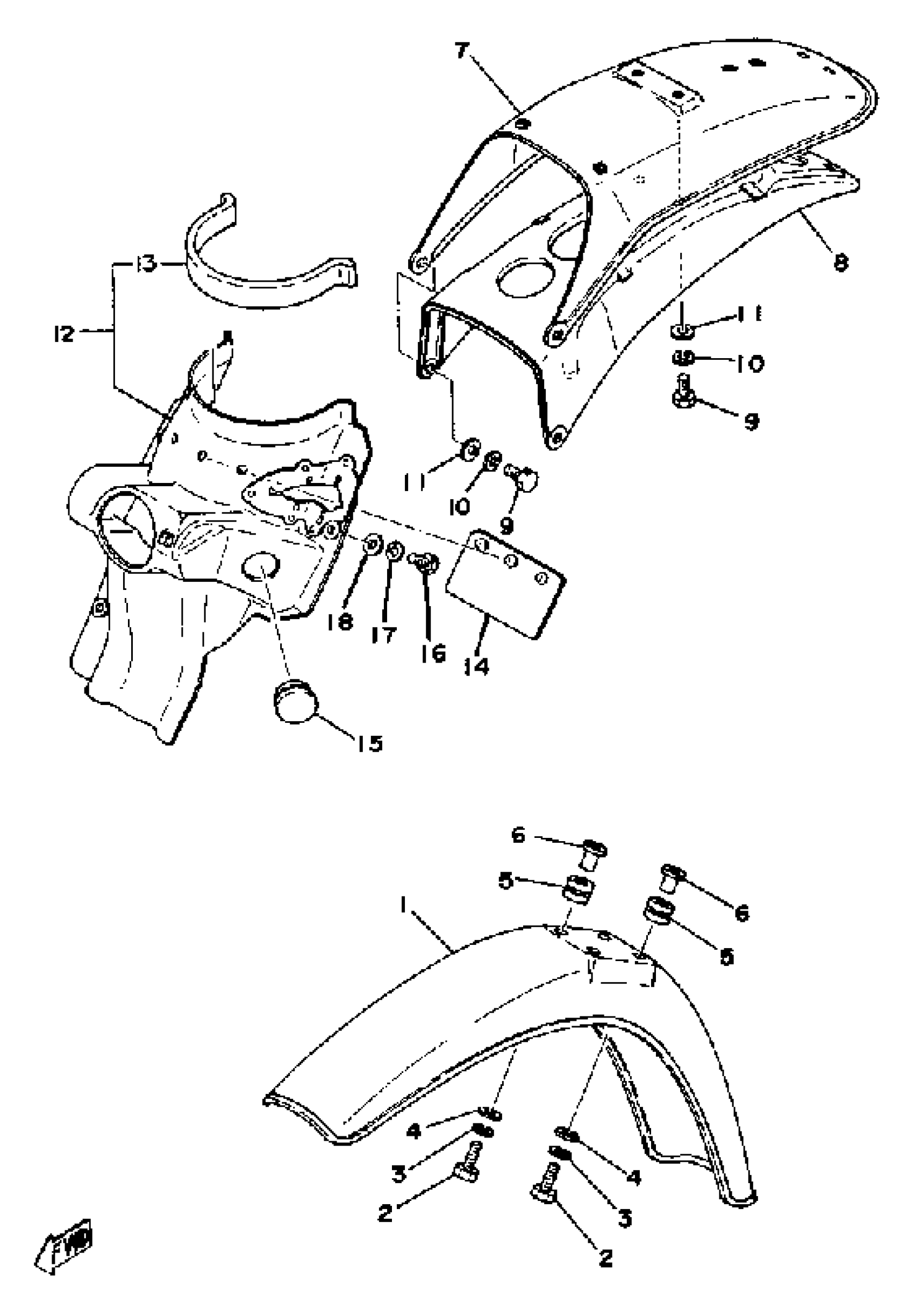

Yamaha DT175E (DT175E) 1978 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$2.78

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

GROMMET

90480-14198-00

$7.10

6

COLLAR

90387-06158-00

$5.75

7

FENDER, REAR

2A7-21611-00-00

Unavailable

7

FENDER, REAR

2A8-21611-A0-00

Unavailable

8

BRACKET,FENDER

4J3-21617-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLAIN (646)

92990-06600-00

$1.84

12

GUARD, MUD

(2A7-21620-00-00)

Unavailable

13

DAMPER

2A6-21639-00-00

Unavailable

14

FLAP

1M1-21621-00-00

Unavailable

15

GROMMET (2A6)

90480-30167-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

17

WASHER, SPRING

92995-06100-00

$2.95

18

WASHER, PLATE

90201-06380-00

$0.54
