1978 Yamaha DT175E (DT175E) Frame Side Cover Diagram

← All diagrams

Find the part on the Frame Side Cover diagram for your 1978 Yamaha DT175E (DT175E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

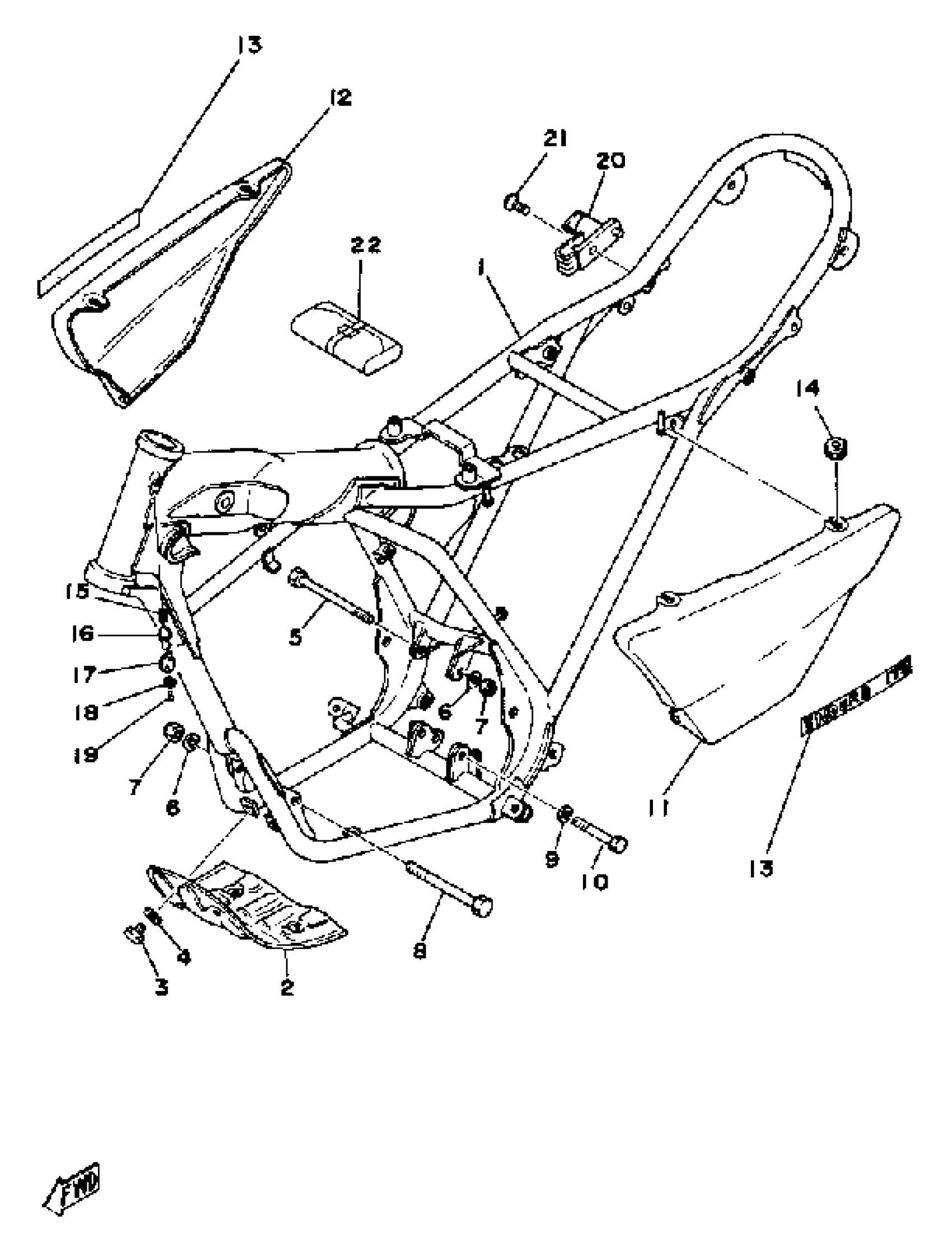

1978 Yamaha DT175E (DT175E) Frame Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(2A6-21110-00-33)

1
Out of stock

2

PROTECTOR, ENGINE

(2A6-21471-00-90)

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

8

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

BOLT

90105-10037-00

—

$7.51

In stock

11

COVER, SIDE 1

2A7-21711-00-01

1
Out of stock

11

COVER, SIDE 1

2A7-21711-10-01

1
Out of stock

12

COVER, SIDE 2

2A7-21721-00-01

1
Out of stock

12

COVER, SIDE 2

2A7-21721-10-01

1
Out of stock

13

EMBLEM 6

(2A7-21786-00-00)

1
Out of stock

13

EMBLEM 6

(2A7-21786-10-00)

1
Out of stock

14

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

15

SPRING, CONICAL (1E6)

90502-09024-00

—

$5.62

In stock

16

STEERING LOCK ASSY

2A6-23408-00-00

—

$103.38

In stock

17

CAP, HANDLE LOCK

3DM-23484-00-00

—

$22.35

In stock

18

WASHER, WAVE

90206-04003-00

1
Out of stock

19

RIVET 214234830000

90269-04003-00

—

$6.88

In stock

20

HELMET HANGER ASSY

5H0-21308-01-00

—
Out of stock

21

SCREW, OVAL HEAD

98603-06018-00

1
Out of stock

22

TOOL KIT

2A6-W2810-00-00

—

$87.63

In stock
