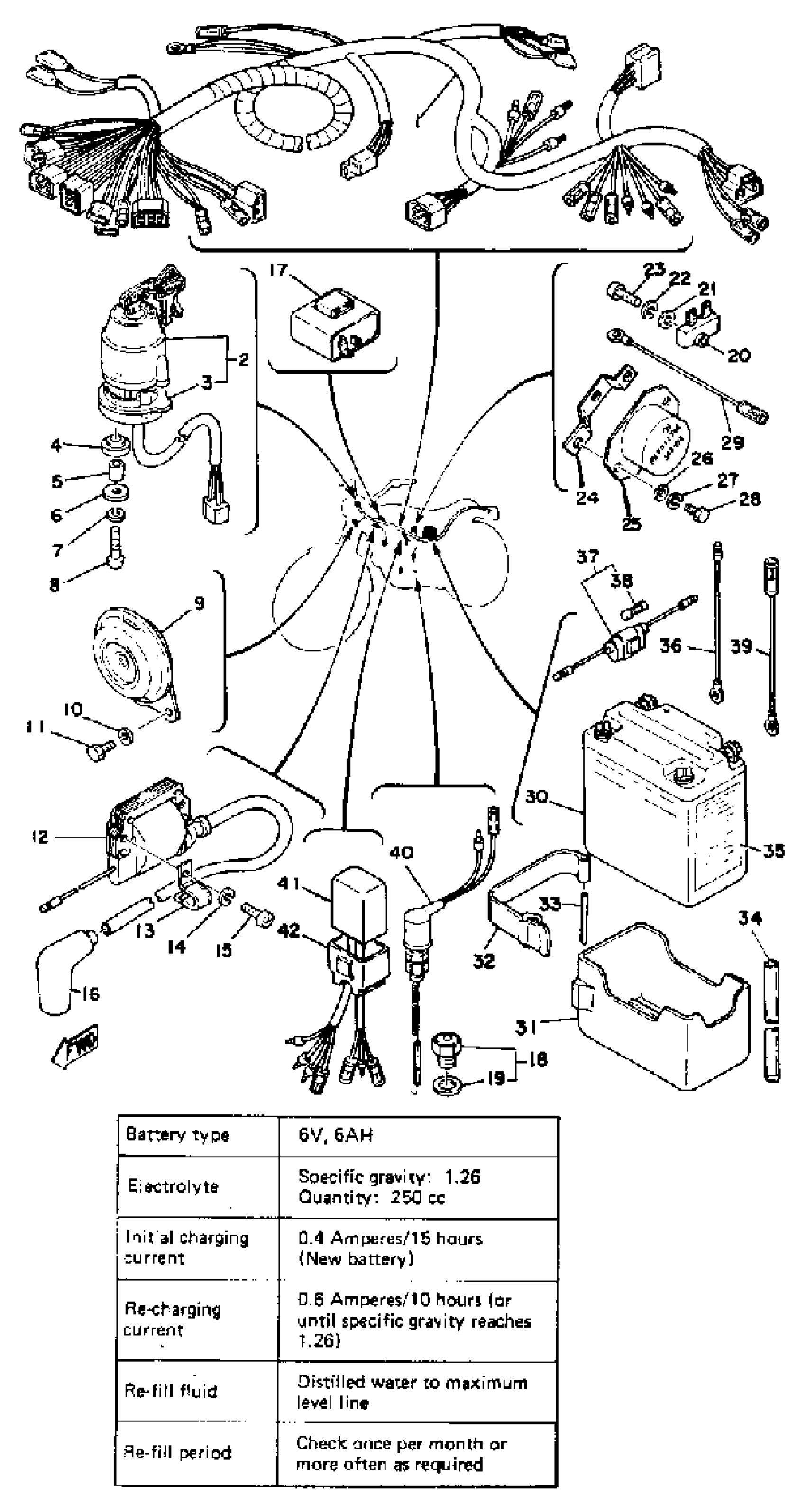

Yamaha DT175E (DT175E) 1978 ELECTRICAL Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY 001

(2A7-82590-20-00)

Unavailable

1

WIRE HARNESS ASSEMBLY 001

(2N5-82590-50-00)

Unavailable

2

MAIN SWITCH ASSEMBLY

443-82508-21-00

Unavailable

3

. DAMPER, MAIN SWCH 1

1M1-82555-00-00

Unavailable

4

DAMPER, STOPPER

1M1-82556-00-00

Unavailable

5

COLLAR, MAIN SWITCH

437-82516-00-00

Unavailable

6

WASHER PLATE 829771780000

90201-05033-00

$10.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

9

HORN

2A7-83371-10-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

IGNITION COIL ASSY

355-82310-40-00

Unavailable

13

CLAMP 363154850100

90462-05005-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

SCREW PAN HEAD

98580-06020-00

Unavailable

16

PLUG CAP ASSY

56J-82370-00-00

Unavailable

17

FLASHER RELAY ASSY

3BK-83350-00-00

Unavailable

18

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

19

WASHER, PLATE

90201-12790-00

Unavailable

20

RECTIFIRE ASSY

1M1-81970-60-00

Unavailable

21

WASHER, PLAIN (646)

92990-05600-00

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

23

SCREW, PAN HEAD

98580-05020-00

Unavailable

24

PLATE, REG FITTING

2A6-81915-00-00

Unavailable

25

VOLTAGE REG ASY

443-81910-62-00

Unavailable

25

UNAVAILABLE IN PRICE BOOK (498-81910-22)VOLTAGE REG

498-81810-23-00

Unavailable

26

WASHER, PLAIN (646)

92990-05600-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

28

BOLT, HEXAGON

97013-05012-00

Unavailable

29

CORD

1H2-83346-00-00

Unavailable

30

6N6-3B-1 YUASA BATTERY

6N6-3B1Y0-00-00

Unavailable

31

SEAT, BATTERY

(2A6-82122-00-00)

Unavailable

32

BAND, BATTERY

2A6-82131-00-00

Unavailable

33

PIN, COTTER (AM5)

91490-30045-00

Unavailable

34

HOSE

(90445-08357-00)

Unavailable

35

LABEL, BATTERY

40A-82141-G0-00

Unavailable

36

WIRE, SUB-LEAD

J42-82318-00-00

Unavailable

37

FUSE HOLDER ASSY

55K-82150-02-00

Unavailable

38

FUSE

1A0-82151-00-00

Unavailable

39

CORD

1H2-83346-00-00

Unavailable

40

STOP SWITCH ASSEMBLY

371-82530-03-00

Unavailable

41

CDI UNIT ASSEMBLY

2A7-85540-20-00

Unavailable

42

BAND

2A7-85546-00-00

Unavailable
