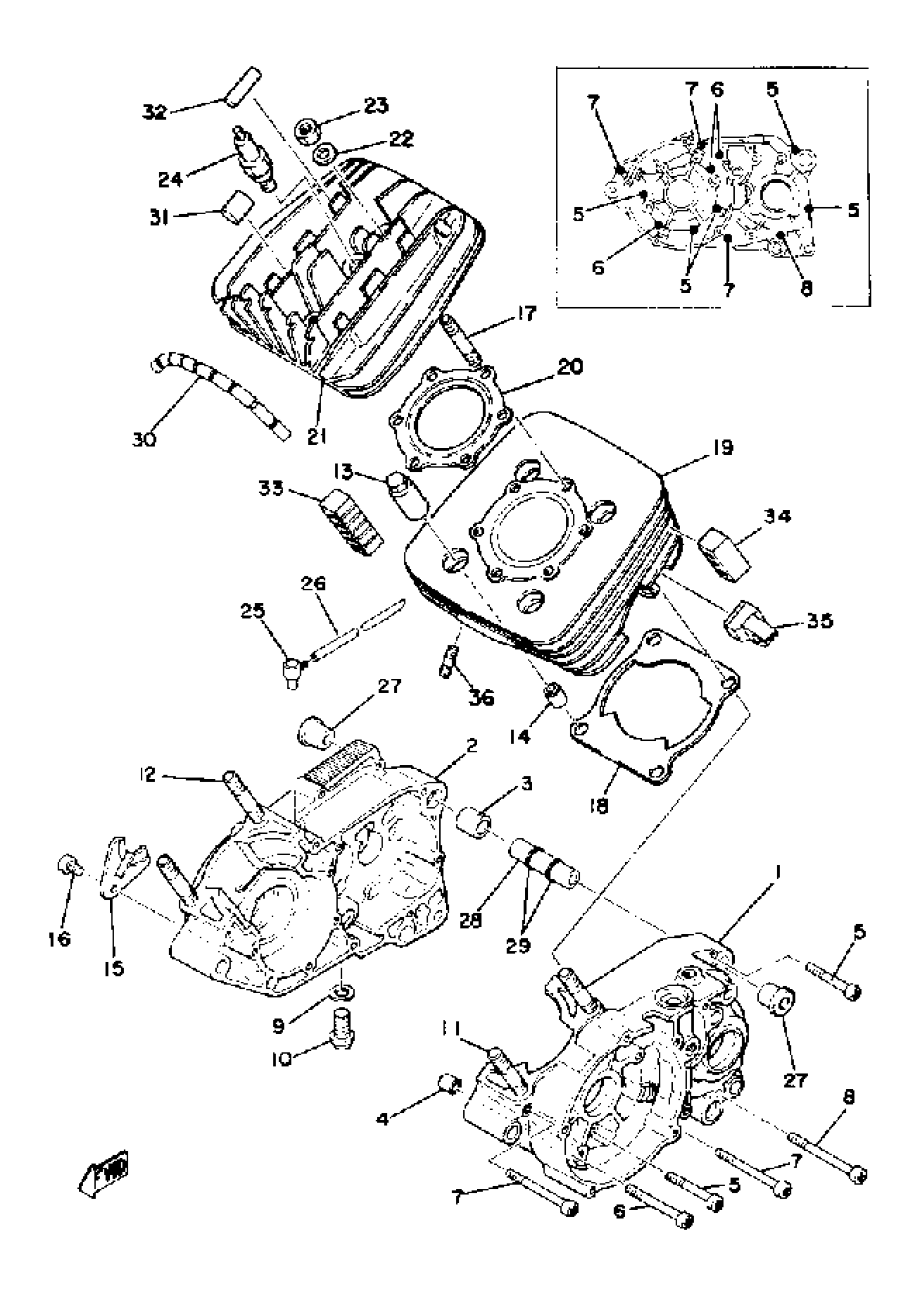

Yamaha DT175E (DT175E) 1978 CRANKCASE CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(2A6-15111-02-00)

Unavailable

2

CRANKCASE 2

2A6-15121-01-00

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

SCREW, BIND (JH1)

98580-06560-00

Unavailable

7

SCREW PAN HEAD

98580-06570-00

$18.99

8

SCREW PAN HEAD

98580-06575-00

$12.49

9

GASKET (3JD1)

90430-12207-00

$7.99

10

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

11

BOLT, STUD

95617-10630-00

Unavailable

12

BOLT,STUD

95617-10640-00

Unavailable

13

NUT

90179-10021-00

$25.99

14

PIN, DOWEL

99530-14016-00

$3.80

15

HOLDER (R.H)

304-15128-00-00

$6.99

16

SCREW, PAN

98507-08010-00

Unavailable

17

BOLT STUD 363111790000

90116-08104-00

Unavailable

18

GASKET, CYLINDER

18G-11351-02-00

Unavailable

19

CYLINDER 1

2A7-11311-00-00

Unavailable

20

GASKET, CYLINDER HEAD

1W2-11181-00-00

Unavailable

21

HEAD, CYLINDER 1

2A7-11111-00-00

Unavailable

22

WASHER, PLATE (397)

90201-08100-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable

24

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

25

BREATHER

583-15371-00-00

Unavailable

26

HOSE (L1050)

90445-072G8-00

Unavailable

27

DAMPER

90388-08003-00

Unavailable

28

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

29

O-RING (P95)

93210-11073-00

Unavailable

30

ABSORBER 1

2A6-11161-00-00

Unavailable

31

ABSORBER 2

2A6-11162-00-00

Unavailable

32

ABSORBER 2

3LN-2139U-00-00

Unavailable

33

ABSORBER 3

2A6-11127-00-00

Unavailable

34

ABSORBER 3

2A6-11127-00-00

Unavailable

35

ABSORBER 5

2A6-11129-00-00

Unavailable

36

BOLT STUD 306111790000

90116-06016-00

Unavailable

36

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

36

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

Unavailable
