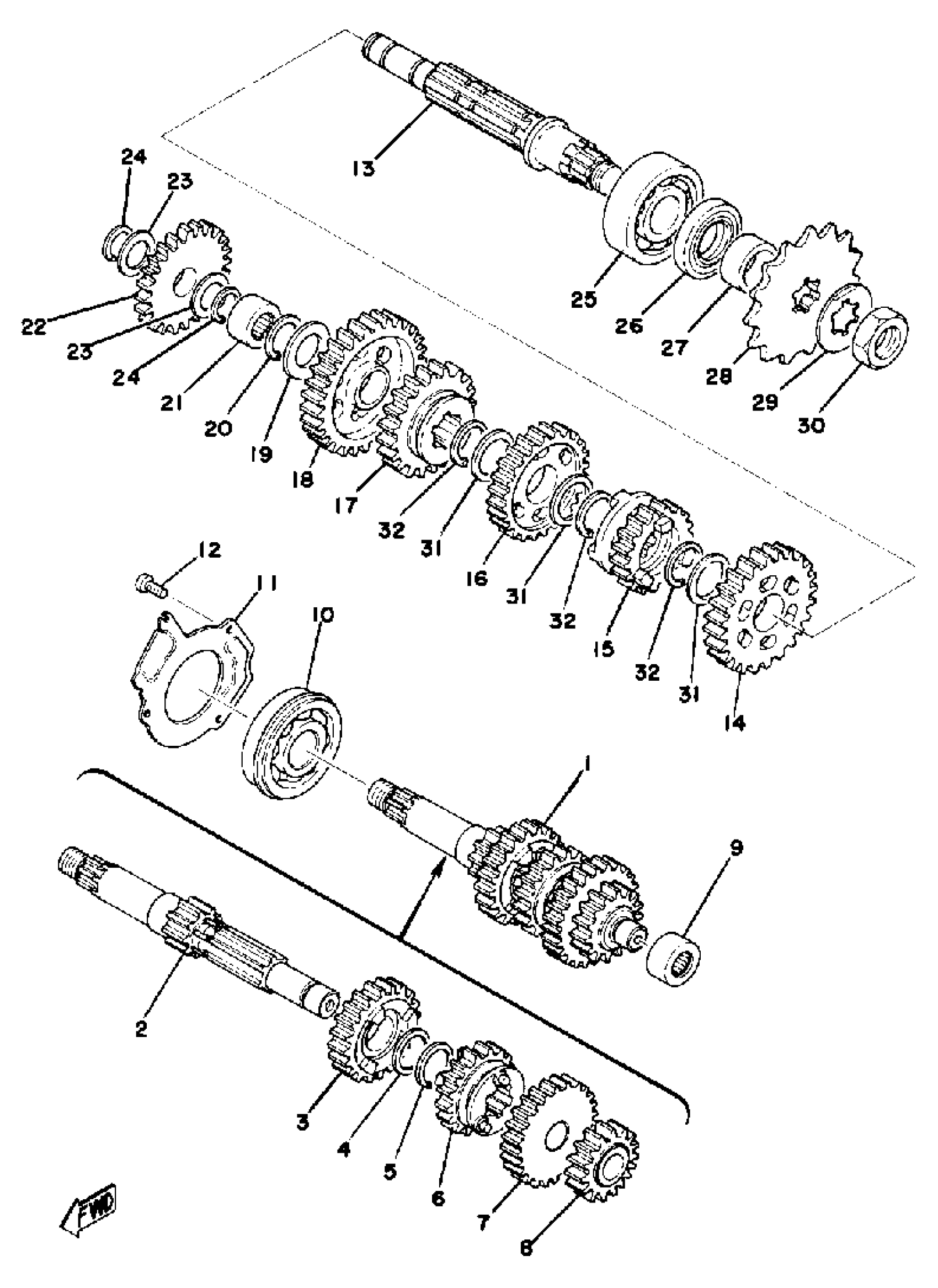

Yamaha DT175C (DT175C) 1976 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

(559-17410-00-00)

Unavailable

2

. AXLE, MAIN

559-17411-01-00

Unavailable

3

GEAR, 4TH PINION

(437-17141-00-00)

Unavailable

4

WASHER PLATE 132172160000

90201-20266-00

$9.49

5

CIRCLIP (525)

93410-20038-00

$3.76

6

. GEAR, 3RD PINION (19T)

427-17131-00-00

Unavailable

7

GEAR, 5TH PINION (25T)

437-17151-00-00

Unavailable

8

GEAR, 2ND PINION

437-17121-02-00

Unavailable

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

10

BEARING

(93306-30414-00)

Unavailable

11

PLATE, COVER

401-17471-00-00

Unavailable

12

UNAVAILABLE IN PRICE BOOK (98503-05012)

98480-05012-00

Unavailable

13

AXLE, DRIVE

558-17421-00-00

Unavailable

14

GEAR, 2ND WHEEL

427-17221-00-00

$45.99

15

GEAR, 5TH WHEEL (20T)

437-17251-00-00

Unavailable

16

GEAR, 3RD WHEEL

427-17231-00-00

Unavailable

17

GEAR,4TH WHEEL

4EG-17241-00-00

Unavailable

18

. GEAR, 1ST WHEEL

248-17211-00-00

Unavailable

19

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

20

CIRCLIP

93440-15012-00

Unavailable

21

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

22

GEAR, KICK IDLE

525-15651-00-00

Unavailable

23

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

Unavailable

24

CIRCLIP

93440-15012-00

Unavailable

25

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

26

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

27

COLLAR (525)

90387-20491-00

Unavailable

28

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

28

SPROCKET,DRIVE 16T(10V1746160)

93822-16095-00

Unavailable

28

SPROCKET, DRIVE

93822-17117-00

Unavailable

29

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

30

UNAVAILABLE IN PRICE BOOK

90179-15018-00

Unavailable

31

WASHER PLATE 132172160000

90201-20266-00

$9.49

32

CIRCLIP (525)

93410-20038-00

$3.76
