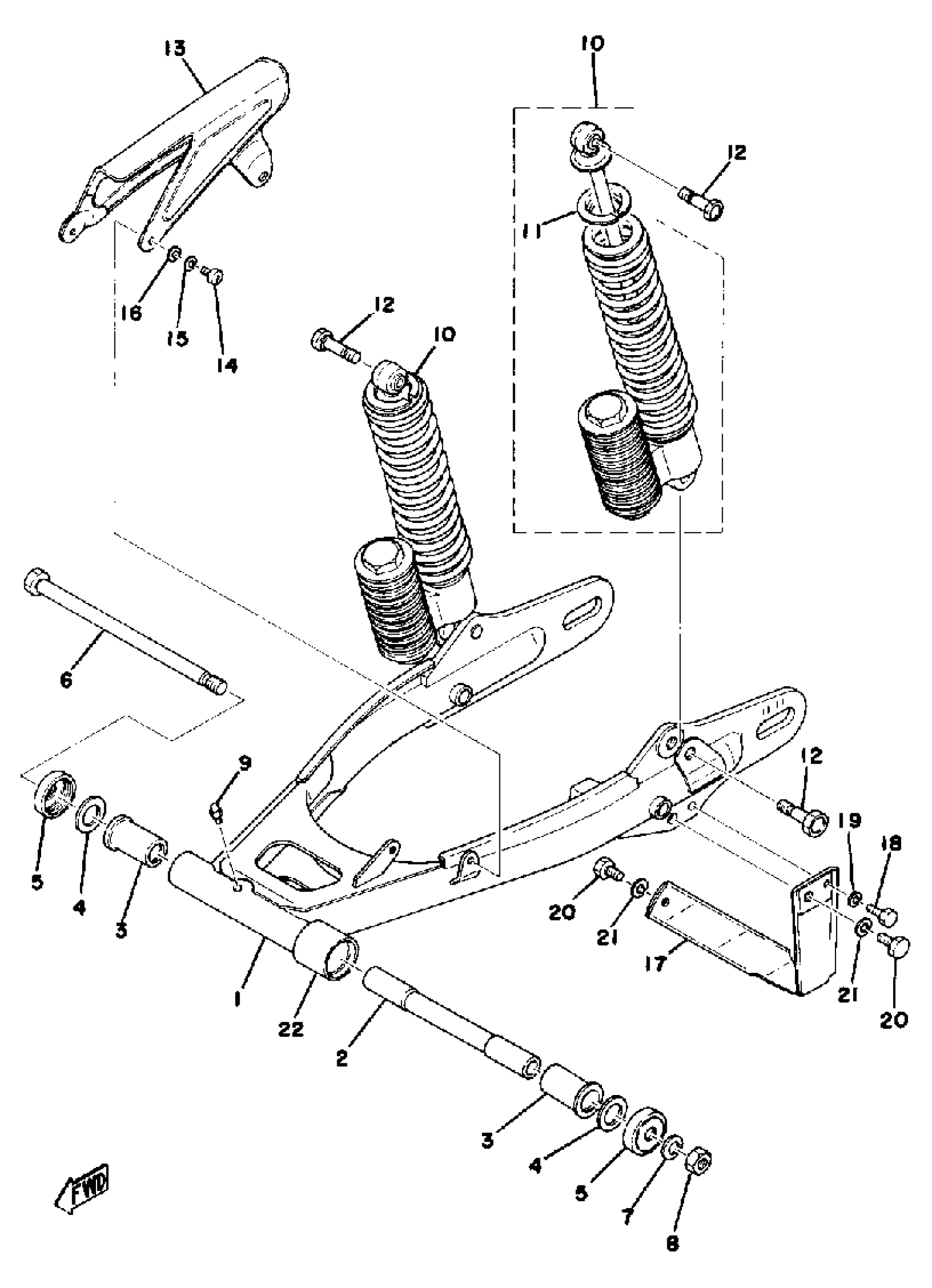

Yamaha DT175C (DT175C) 1976 SWING ARM-REAR SHOCKS-CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(559-22110-00-33)

Unavailable

2

BUSHING (401-22124-00)

90389-12002-00

Unavailable

3

BUSHING (401-22123-00)

90386-18028-00

$26.99

4

SHIM

401-22127-00-00

$7.99

5

COVER, THRUST 1

401-22128-01-00

$29.99

6

AXLE,WHEEL

2J5-25381-01-00

Unavailable

7

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

8

NUT, HEXAGON 98801-12200

90170-12175-00

$9.49

9

NIPPLE, GREASE

93700-06005-00

$12.49

10

. UNAVAILABLE IN PRICE BOOK

559-22210-09-00

Unavailable

10

REAR CUSHION ASSEMBLY

(99999-01337-00)

Unavailable

11

SPRING

(322-22212-20-00)

Unavailable

12

BOLT

90109-10195-00

Unavailable

13

CASE, CHAIN

(437-22311-02-33)

Unavailable

14

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

. WASHER, PLAIN

92990-05200-00

Unavailable

17

GUARD, CHAIN

(248-22318-00-33)

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

BOLT(JA9)

90101-08691-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

SEAL, GUARD

443-22151-00-00

Unavailable
