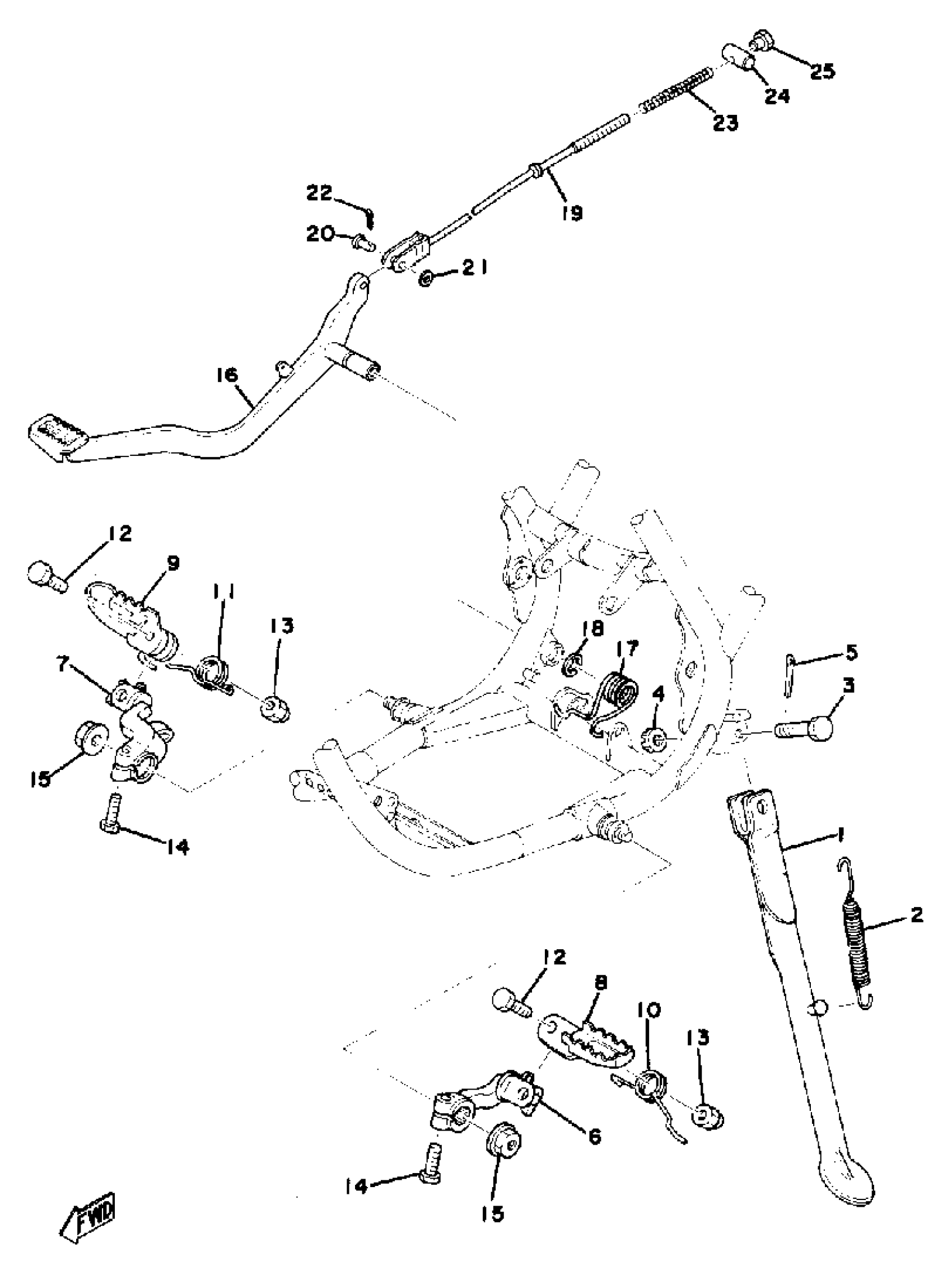

Yamaha DT175C (DT175C) 1976 STAND-FOOTREST-BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

(458-27311-00-00)

Unavailable

2

SPRING, TENSION (498)

90507-29021-00

$23.99

3

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

4

NUT,CASTLE

90171-10049-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

BRACKET, FOOTREST 1

(437-27412-10-00)

Unavailable

7

BRACKET, FOOTREST 2

437-27422-10-00

Unavailable

8

FOOTREST 1

434-27411-00-35

Unavailable

9

FOOTREST 2

434-27421-00-35

Unavailable

10

SPRING, TORSION

90508-26138-00

Unavailable

11

SPRING, TORSION

90508-26139-00

Unavailable

12

BOLT

90101-08250-00

Unavailable

13

NUT, U

95617-08100-00

$9.49

14

BOLT, HEXAGON

97017-08025-00

$10.49

15

NUT(3GG)

90179-12588-00

$7.49

16

PEDAL, BRAKE

(558-27211-00-33)

Unavailable

17

SPRING, TORSION

90508-45290-00

Unavailable

18

CIRCLIP (137)

93430-10015-00

Unavailable

19

ROD, BRAKE

248-27231-00-00

Unavailable

20

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

21

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

22

PIN, COTTER

91490-25020-00

Unavailable

23

SPRING, (180-27236-00)

90501-10245-00

Unavailable

24

PIN 1562723700

90249-12008-00

Unavailable

25

NUT (25K)

90179-06411-00

Unavailable
