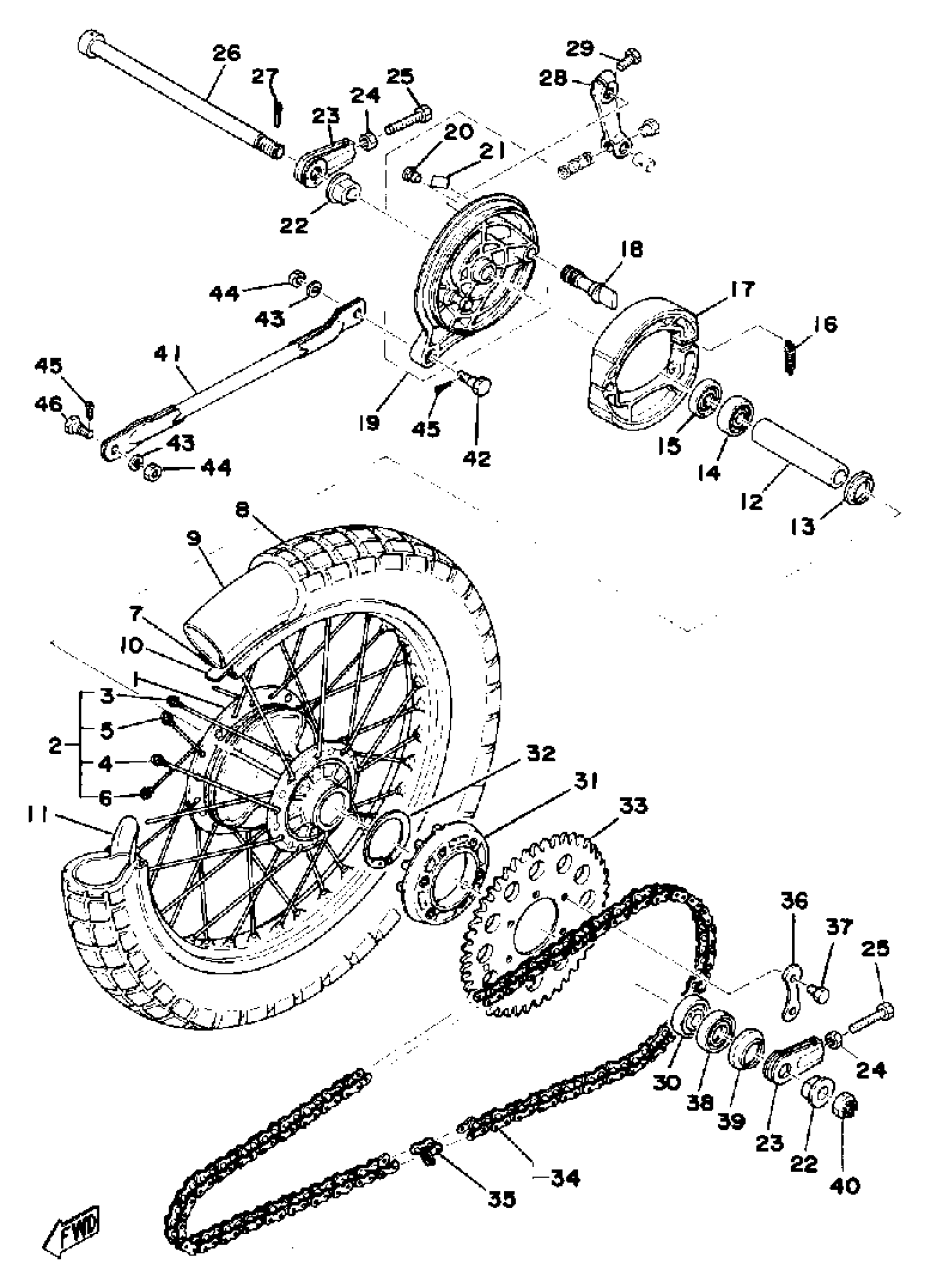

Yamaha DT175C (DT175C) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(443-25311-00-00)

Unavailable

2

SPOKE SET, REAR

443-25304-00-00

Unavailable

3

SPOKE SET, INNER 2

(443-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(443-25397-90-00)

Unavailable

5

SPOKE SET, INNER 1

(443-25391-90-00)

Unavailable

6

SPOKE SET, OUTER 1

(443-25392-90-00)

Unavailable

7

RIM (1.85-18)

94418-18007-00

Unavailable

8

350X18 YOKO Y620

(94135-18319-00)

Unavailable

9

TUBE (2RH)

94232-18113-00

$29.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

SPACER, BEAD

1T2-25394-00-00

Unavailable

12

SPACER

90560-15313-00

$46.99

13

FLANGE, SPACER

146-25115-00-00

$6.99

14

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

15

OIL SEAL (22X35X5)

93104-22018-00

$11.49

16

SPRING (5T9)

90506-17328-00

Unavailable

17

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

18

CAMSHAFT

2RH-25351-00-00

Unavailable

19

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

20

GROMMET (397)

90480-10068-00

Unavailable

21

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

22

COLLAR

90387-15115-00

Unavailable

23

PULLER, CHAIN

248-25388-00-00

Unavailable

24

. NUT

95380-08700-00

Unavailable

25

BOLT

90101-08060-00

Unavailable

26

AXLE, WHEEL (2R7-25381-00)

401-25381-00-00

Unavailable

27

PIN, COTTER

91490-30030-00

Unavailable

28

LEVER, CAM SHAFT

214-25355-00-00

Unavailable

29

BOLT, HEXAGON

97017-06025-00

Unavailable

30

BEARING

93306-30212-00

Unavailable

31

UNAVAILABLE IN PRICE BOOK

248-26364-00-00

Unavailable

32

CIRCLIP (8L9)

93410-52061-00

Unavailable

33

SPROCKET, DRVN45T

248-25445-11-00

Unavailable

33

SPROCKET, DRVN 48T

248-25448-11-00

Unavailable

33

SPROCKET, DRVN 44T (44T)

4V1-25444-10-00

Unavailable

34

SET, CHAIN

94A40-07114-00

Unavailable

35

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable

36

WASHER, LOCK

22W-25412-00-00

Unavailable

37

BOLT

90101-08282-00

Unavailable

38

SEAL,OIL

93106-26005-00

Unavailable

39

COVER, DUST

401-25367-00-00

Unavailable

40

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

41

BAR, TENSION

(401-25371-01-00)

Unavailable

42

BOLT 1092537300

90109-08063-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

44

. NUT

95380-08700-00

Unavailable

45

PIN, COTTER

91490-20025-00

Unavailable

46

BOLT (183-25378-00)

90109-08368-00

Unavailable
