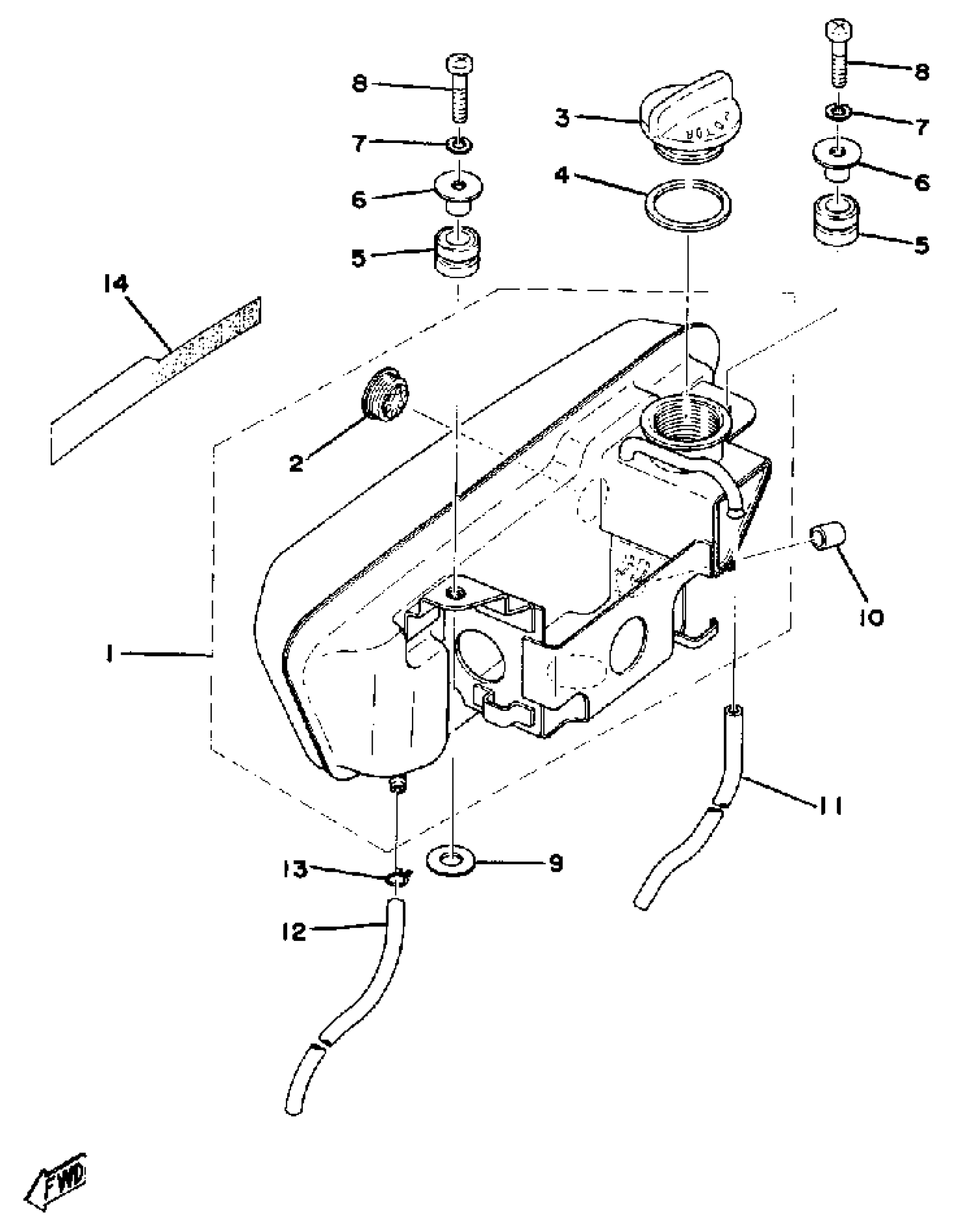

Yamaha DT175C (DT175C) 1976 OIL TANK Diagram

OIL TANK ASSEMBLY

(558-21705-01-G3)

Unavailable

. GAUGE, LEVEL

360-21761-00-00

Unavailable

BODY, OIL TANK CAP

1A0-21771-00-00

$35.99

GASKET 214217720000

90430-29114-00

$8.49

GROMMET 839774310000

90480-14023-00

$7.49

COLLAR 437216330000

90387-07391-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

WASHER, PLATE

90201-06380-00

$0.60

DAMPER, OIL TANK

437-21779-00-00

Unavailable

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

$10.49

EMBLEM 7

(498-21787-01-00)

Unavailable
