1976 Yamaha DT175C (DT175C) Headlight Diagram

← All diagrams

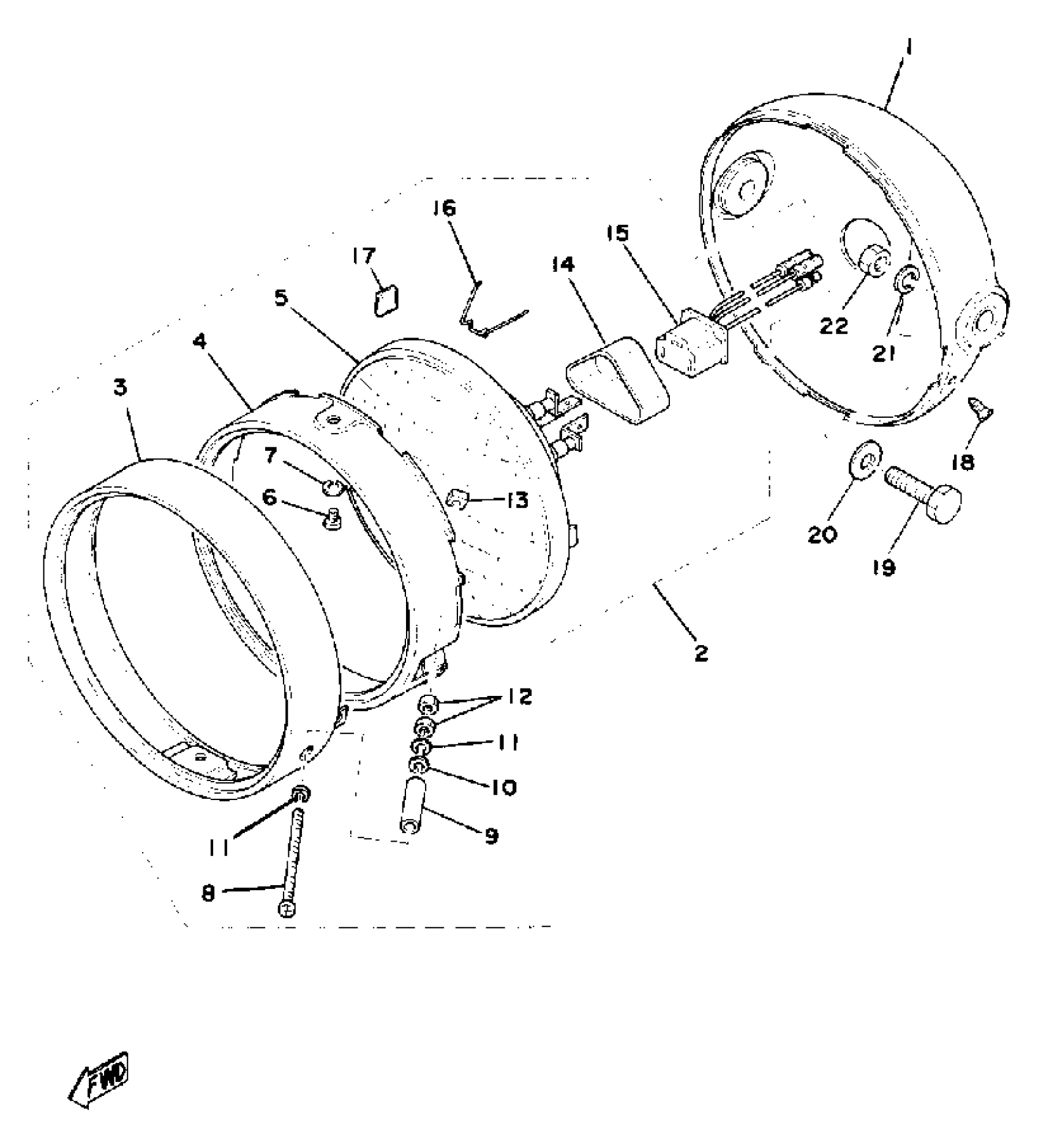

Find the part on the Headlight diagram for your 1976 Yamaha DT175C (DT175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha DT175C (DT175C) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(498-84130-60-20)

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

4

. RING, RETAINING

498-84195-60-00

1
Out of stock

5

. LENS ASSEMBLY

498-84120-61-00

1
Out of stock

6

. SCREW

438-84194-60-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

9

COLLAR, SCREW

438-84133-60-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

NUT(6TA)

95307-04600-00

1

$6.69

In stock

13

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

14

. COVER, SOCKET

341-84397-61-00

1
Out of stock

15

SOCKET

371-84312-60-00

—

$26.52

In stock

16

SPRING, SET

1UY-84124-00-00

—

$6.55

In stock

17

. SPACER

498-84128-60-00

1
Out of stock

18

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

19

BOLT

97013-08035-00

—

$4.80

In stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock
