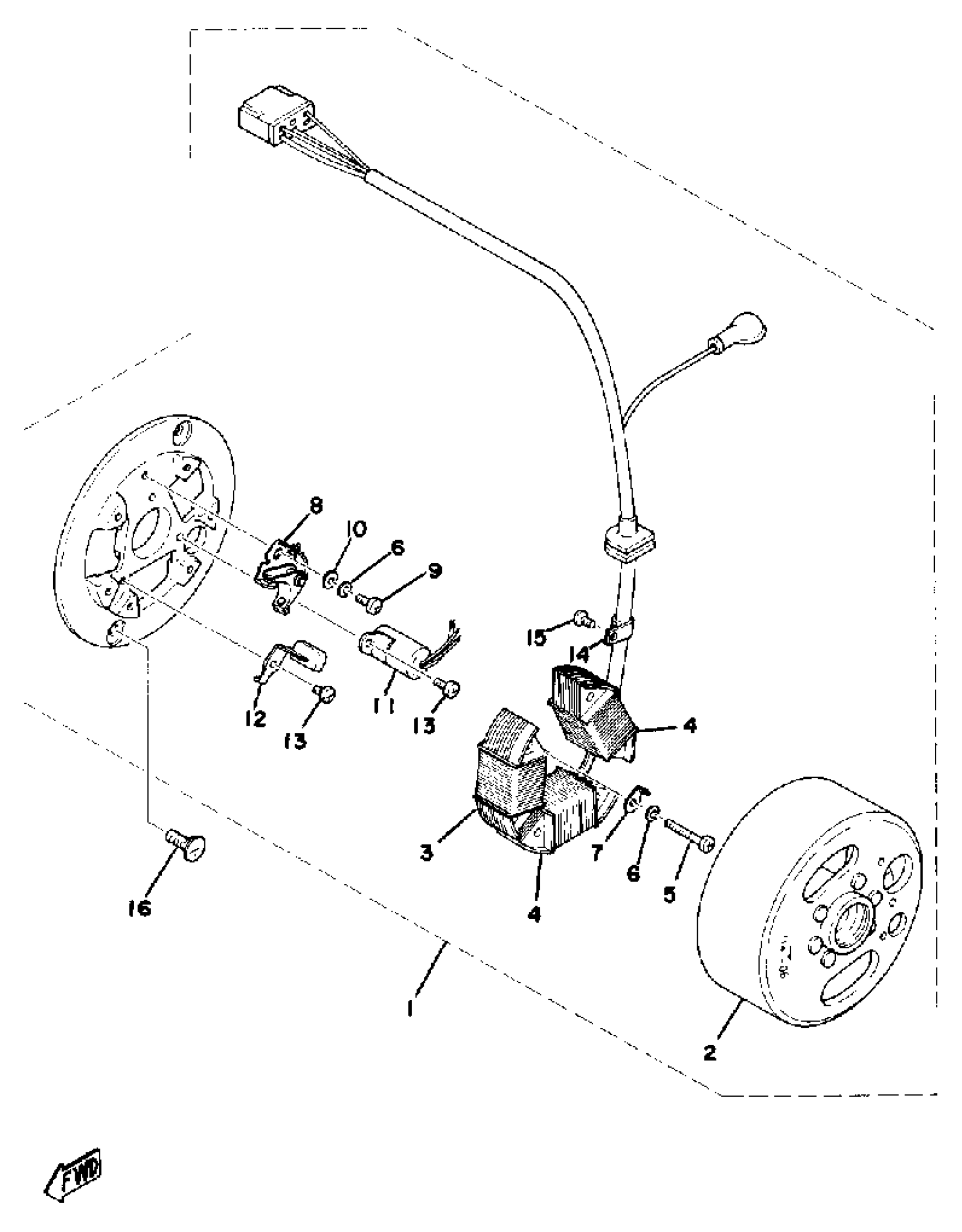

Yamaha DT175C (DT175C) 1976 FLYWHEEL MAGNETO Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLYASSY

443-81300-13-00

Unavailable

2

. ROTOR ASSEMBLY

576-81350-11-00

Unavailable

3

. COIL, SOURCE

443-81312-10-00

Unavailable

4

COIL, LIGHTING 1

(443-81313-12-00)

Unavailable

5

SCREW, PAN HEAD

(98501-04028-00)

Unavailable

6

WASHER, PLAIN (646)

92990-04600-00

$5.99

7

PLATE, TIMING

(443-81332-10-00)

Unavailable

8

. CONTACT BRKR ASSEMBLYASSY

443-81321-10-00

Unavailable

9

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

. CONDENSER 2

277-81326-90-00

Unavailable

12

. LUBRICATOR

207-81331-10-00

Unavailable

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

. CLAMP

109-81328-11-00

Unavailable

15

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

16

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable
