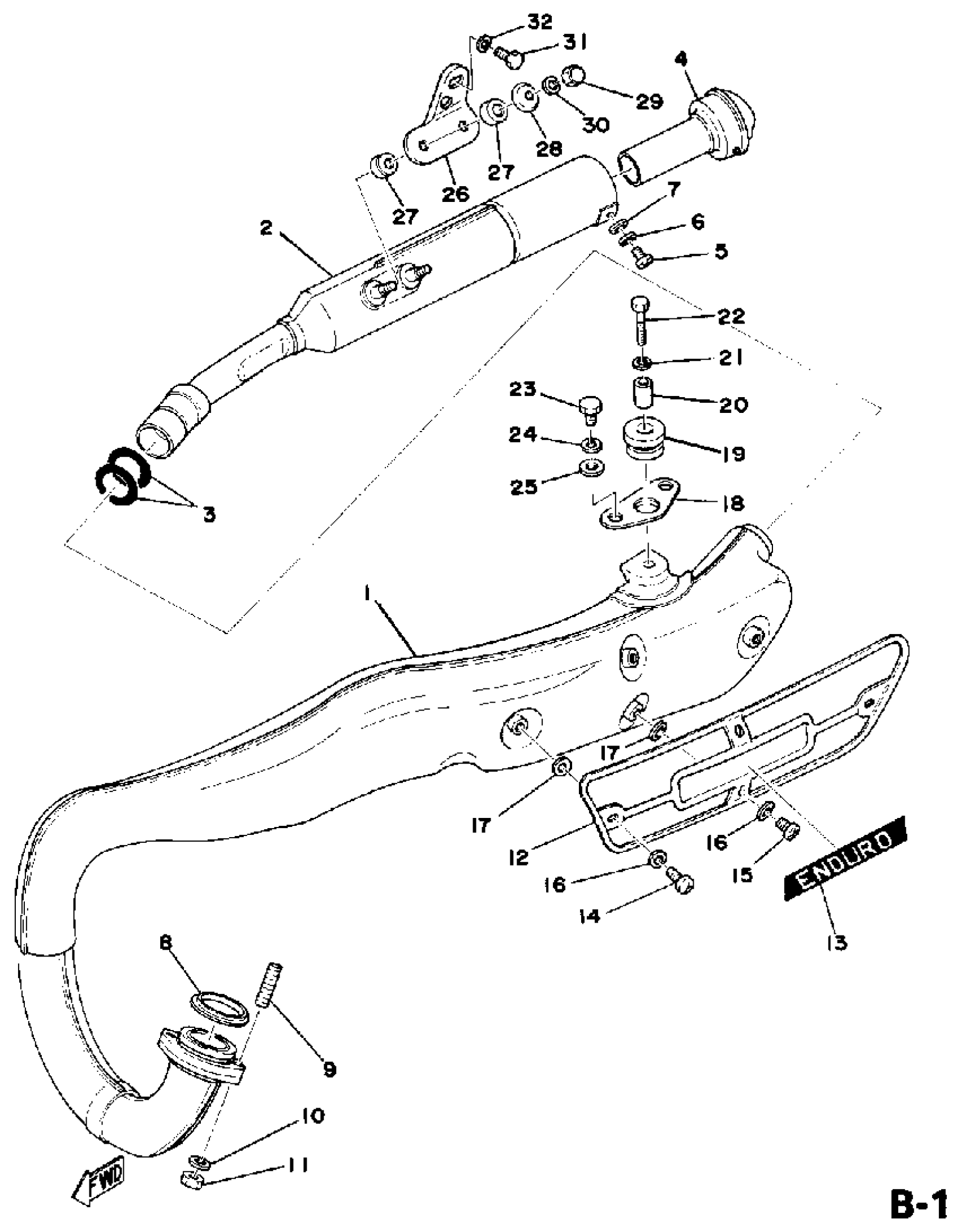

Yamaha DT175C (DT175C) 1976 EXHAUST Diagram
#
1
EXHAUST PIPE ASSEMBLY L
(576-14610-01-00)
Unavailable
2
SILENCER, EXHAUST 001
(558-14753-01-00)
Unavailable
2
DAMPER
565-14747-00-00
Unavailable
2
SILENCER SET (558)
(99999-01080-00)
Unavailable
4
PIPE, OUTLET
438-14752-00-00
Unavailable
5
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
12
PROTECTOR, MUFF 1
(558-14718-00-00)
Unavailable
13
EMBLEM, PROTECTOR
(558-14729-00-00)
Unavailable
14
SCREW, BIND(J39)
98980-06030-00
Unavailable
15
SCREW, BIND(J45)
98980-06012-00
Unavailable
16
WASHER, PLATE(3MT)
90202-05188-00
Unavailable
17
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
18
STAY, MUFFLER 1
437-14771-00-00
Unavailable
19
GROMMET 437147470000
90480-20132-00
Unavailable
20
COLLAR
90387-08242-00
Unavailable
21
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
22
BOLT
97013-08035-00
Unavailable
23
BOLT, HEXAGON
97017-06020-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
WASHER, PLATE
90201-06380-00
Unavailable
26
STAY, MUFFLER 2
(558-14781-01-00)
Unavailable
27
DAMPER, MUFFLER
438-14757-00-00
Unavailable
28
WASHER
90209-06061-00
Unavailable
29
NUT (J17)
95380-06800-00
Unavailable
30
WASHER, SPRING
92995-06100-00
Unavailable
31
BOLT(62E)
97013-08012-00
Unavailable
32
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
