CRANKSHAFT-PISTON

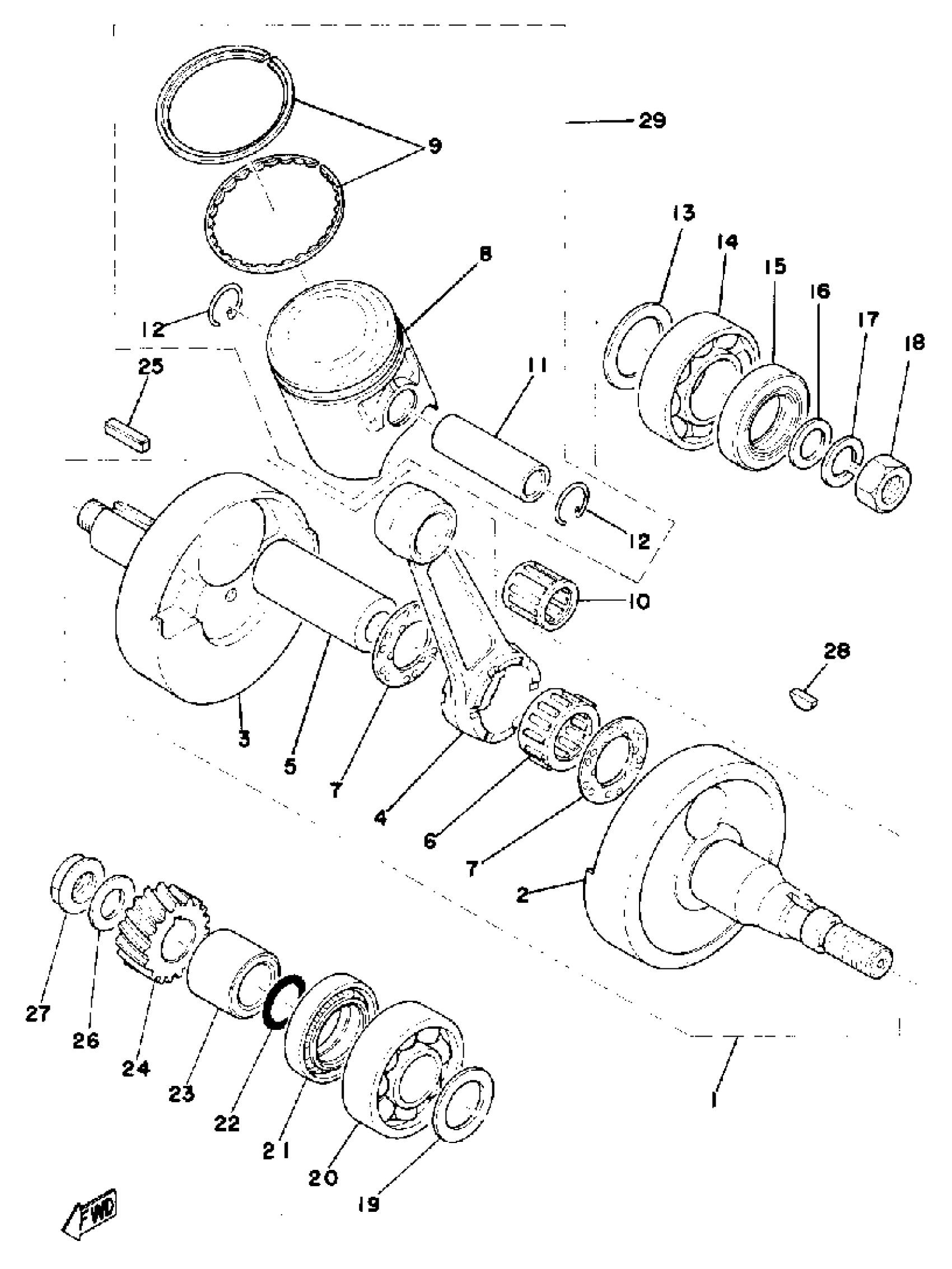

Yamaha DT175C (DT175C) 1976 CRANKSHAFT-PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(559-11400-01-00)
Unavailable
2
CRANK (L.H)
1W1-11412-01-00
Unavailable
3
CRANK 2
(525-11422-00-00)
Unavailable
4
. ROD, CONNECTING 1
25V-11651-00-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
PISTON STD
443-11631-03-96
Unavailable
8
PISTON 1 O/S 0.25 (66.25MM 1ST O.S)
443-11635-03-00
Unavailable
8
PISTON 2 O/S 0.50 (66.50MM 2ND O.S)
443-11636-03-00
Unavailable
8
PISTON 3 O/S 0.75
443-11637-03-00
Unavailable
8
PISTON 4 O/S 1.00
443-11638-03-00
Unavailable
9
PISTON RINGSET STD
443-11610-00-00
Unavailable
9
PISTON RINGSET 1ST (1ST O.S)
443-11610-10-00
Unavailable
9
PISTON RINGSET 2ND (2ND O.S)
443-11610-20-00
Unavailable
9
PISTON RINGSET 3RD (3RD O.S)
443-11610-30-00
Unavailable
9
PISTON RINGSET 4TH (4TH O.S0)
443-11610-40-00
Unavailable
10
BRG,CYL-CAL ROLLER 14-7G KY
93310-216E1-00
Unavailable
11
PIN, PISTON
251-11633-00-00
Unavailable
12
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
13
. SHIM, CRANK 1
132-11561-00-03
Unavailable
13
SHIM, CRANK 1
132-11561-00-05
Unavailable
14
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
15
OIL SEAL (25X40X8-248)
93102-25061-00
Unavailable
16
WASHER (492)
90201-12535-00
Unavailable
17
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
18
NUT(55K)
90170-12347-00
Unavailable
19
SHIM, CRANK 1
136-11561-00-04
Unavailable
19
SHIM, CRANK 1
136-11561-00-05
Unavailable
19
SHIM, CRANK 1
136-11561-00-06
Unavailable
19
SHIM, CRANK 1
136-11561-00-07
Unavailable
20
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
21
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
22
O-RING(3KX)
93210-180A6-00
Unavailable
23
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
24
GEAR, PRIMARY DRIVE (C)
401-16111-00-30
Unavailable
25
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
26
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
27
NUT(1EE)
90179-12659-00
Unavailable
28
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
29
PISTON KIT STD
(443-11630-00-00)
Unavailable
29
PISTON KIT 1ST
(443-11630-10-00)
Unavailable
29
PISTON KIT 2ND
(443-11630-20-00)
Unavailable
29
PISTON 3 O/S 0.75
443-11637-03-00
Unavailable
29
PISTON 4 O/S 1.00
443-11638-03-00
Unavailable
