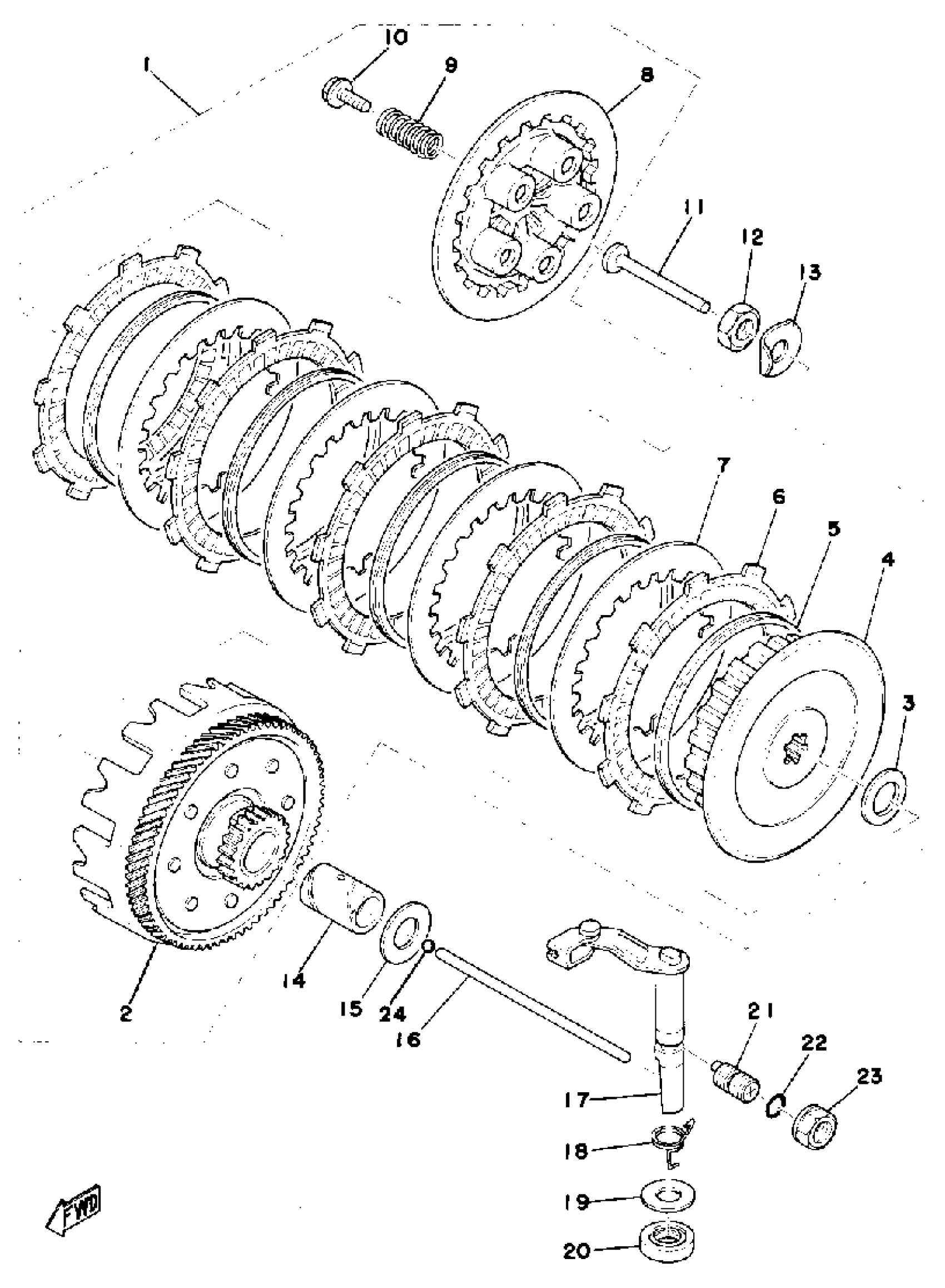

Yamaha DT175C (DT175C) 1976 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(559-16301-00-00)

Unavailable

2

. PRI DRIVEN GEAR (74T)

525-16150-00-00

Unavailable

3

PLATE, THRUST

122-16164-00-00

$7.99

4

. BOSS, CLUTCH

525-16371-02-00

Unavailable

5

. UNAVAILABLE IN PRICE BOOK

307-16467-00-00

Unavailable

6

PLATE, FRICTION

36X-16321-00-00

$17.49

7

PLATE, CLUTCH 2

137-16325-80-00

$16.49

8

. PLATE, PRESSURE 1

525-16351-00-00

Unavailable

9

SPRING, COMPRESSION (400)

90501-20361-00

$13.49

10

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

11

ROD,PUSH (1)

137-16356-00-00

$31.99

12

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

13

WASHER, LOCK (21T)

90215-12211-00

$8.49

14

SPACER (525)

90560-17147-00

Unavailable

15

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

16

ROD, PUSH 2

1W1-16357-00-00

Unavailable

16

BALL

93503-16003-00

Unavailable

16

PUSH ROD ASSEMBLY

99999-00910-00

Unavailable

17

PUSH LEVER ASSEMBLY

525-16380-00-00

Unavailable

18

SPRING, TORSION

90508-14132-00

Unavailable

19

WASHER PLATE 150251530000

90201-14217-00

Unavailable

20

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

21

SCREW

90149-12097-00

Unavailable

22

O-RING (611)

93210-10096-00

Unavailable

23

NUT

90179-12197-00

Unavailable

24

BALL

93503-16003-00

Unavailable
