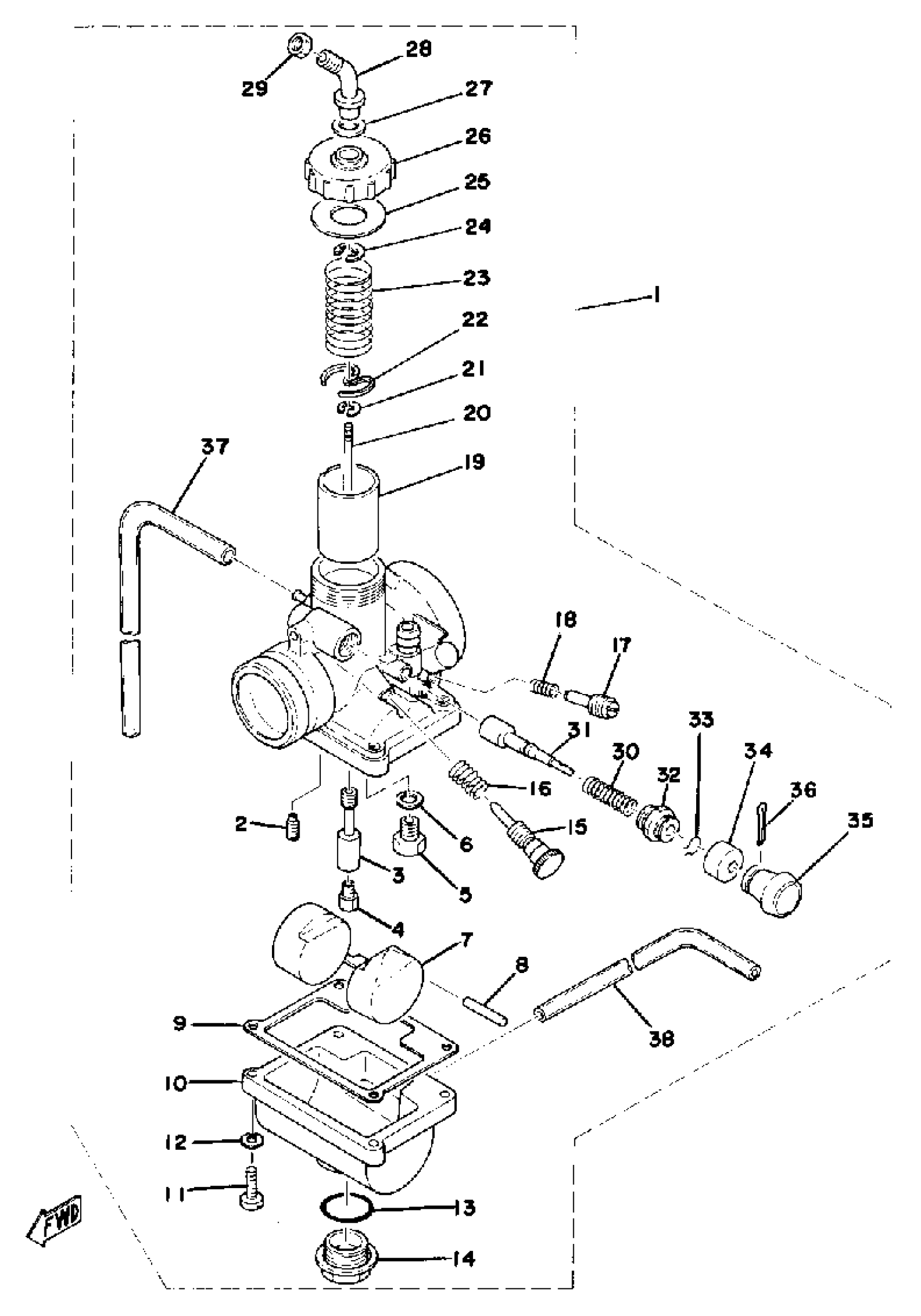

Yamaha DT175C (DT175C) 1976 CARBURETOR Diagram

CARBURETOR ASSEMBLY 1

(559-14101-60-00)

Unavailable

JET, PILOT (# 25)

260-14142-25-00

$9.99

. NOZZLE, MAIN

558-14141-32-00

Unavailable

JET, MAIN #150

137-14143-30-00

$7.99

JET, MAIN #160

137-14143-32-00

$9.99

JET, MAIN #170

137-14143-34-00

$7.99

NEEDLE VALVE SET

23L-14107-25-00

$42.99

WASHER, VALVE SEAT

214-14195-00-00

$7.99

FLOAT

314-14185-00-00

$66.99

PIN, FLOAT

127-14186-00-00

$6.65

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

BODY, FLOAT CHMBR 1

(558-14181-00-33)

Unavailable

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

WASHER, PLAIN (646)

92990-04600-00

$5.99

O-RING (541)

558-14147-00-00

$9.99

PLUG, SCREW

500-14115-00-00

Unavailable

. SCREW, THROTTLE

493-14122-00-00

Unavailable

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

AIR SCREW SET

22K-14104-00-00

Unavailable

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

VALVE,THROTTLE

314-14112-20-00

Unavailable

. NEEDLE

452-14116-04-00

Unavailable

CLIP

3FA-14137-00-00

Unavailable

. STOPPER, CABLE

246-14132-00-00

Unavailable

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

CLIP

363-14137-00-00

Unavailable

GASKET

246-14126-00-00

Unavailable

. TOP, MXXING CHAMBER

401-14158-00-00

Unavailable

GASKET

363-14198-00-00

Unavailable

. GUIDE, CABLE

363-14155-00-00

Unavailable

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

SPRING, PLUNGER

156-14135-00-00

Unavailable

. PLUNGER, STARTER

304-14171-00-00

Unavailable

CAP, PLUNGER

152-14174-00-00

Unavailable

CLIP, PLUNGER

353-14138-00-00

Unavailable

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

HOLDER

304-14261-00-00

Unavailable

PIN, COTTER

91490-16020-00

Unavailable

PIPE, AIR VENT

183-14197-01-00

Unavailable

PIPE

23F-14197-00-00

Unavailable
