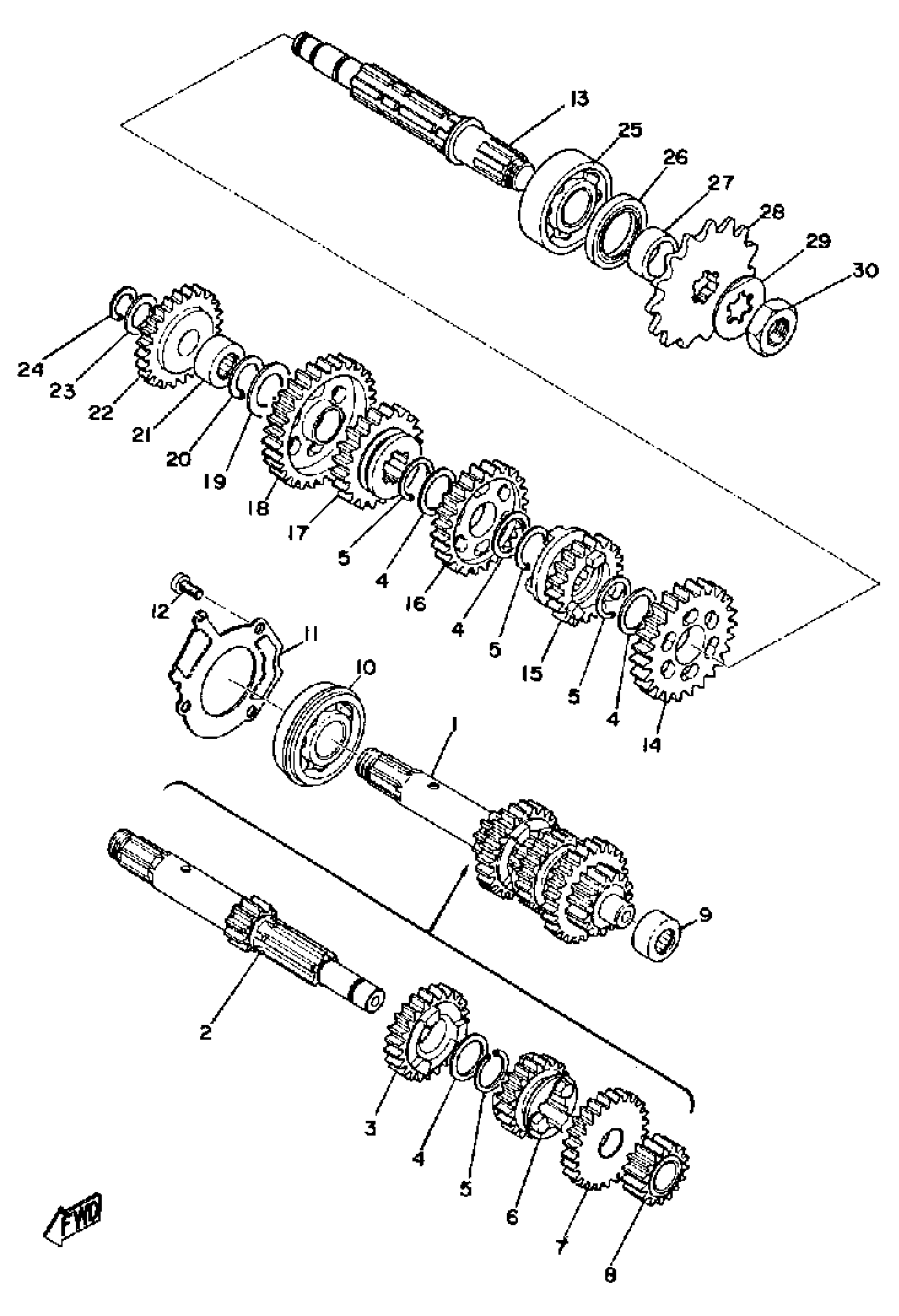

Yamaha DT175A (DT175A) 1974 TRANSMISSION Diagram

MAIN AXLE

(443-17410-00-00)

Unavailable

AXLE, MAIN

(443-17411-00-00)

Unavailable

GEAR, 4TH PINION

(437-17141-00-00)

Unavailable

WASHER PLATE 132172160000

90201-20266-00

$9.49

CIRCLIP (525)

93410-20038-00

$3.76

. GEAR, 3RD PINION (19T)

427-17131-00-00

Unavailable

GEAR, 5TH PINION (25T)

437-17151-00-00

Unavailable

GEAR, 2ND PINION

437-17121-02-00

Unavailable

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

BEARING(3BC)

93306-30437-00

$66.99

PLATE, COVER

401-17471-00-00

Unavailable

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

AXLE, DRIVE

315-17421-01-00

Unavailable

GEAR, 2ND WHEEL

427-17221-00-00

$45.99

GEAR, 5TH WHEEL (20T)

437-17251-00-00

Unavailable

GEAR, 3RD WHEEL

427-17231-00-00

Unavailable

GEAR,4TH WHEEL

4EG-17241-00-00

Unavailable

. GEAR, 1ST WHEEL

248-17211-00-00

Unavailable

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

CIRCLIP

93440-15012-00

Unavailable

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

GEAR, KICK IDLE

401-15651-00-00

Unavailable

WASHER

132-15653-00-12

Unavailable

WASHER

(132-15653-00-14)

Unavailable

CIRCLIP(13M)

99009-13400-00

Unavailable

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

COLLAR (525)

90387-20491-00

Unavailable

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

SPROCKET,DRIVE 16T(10V1746160)

93822-16095-00

Unavailable

SPROCKET, DRIVE

93822-17117-00

Unavailable

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable
