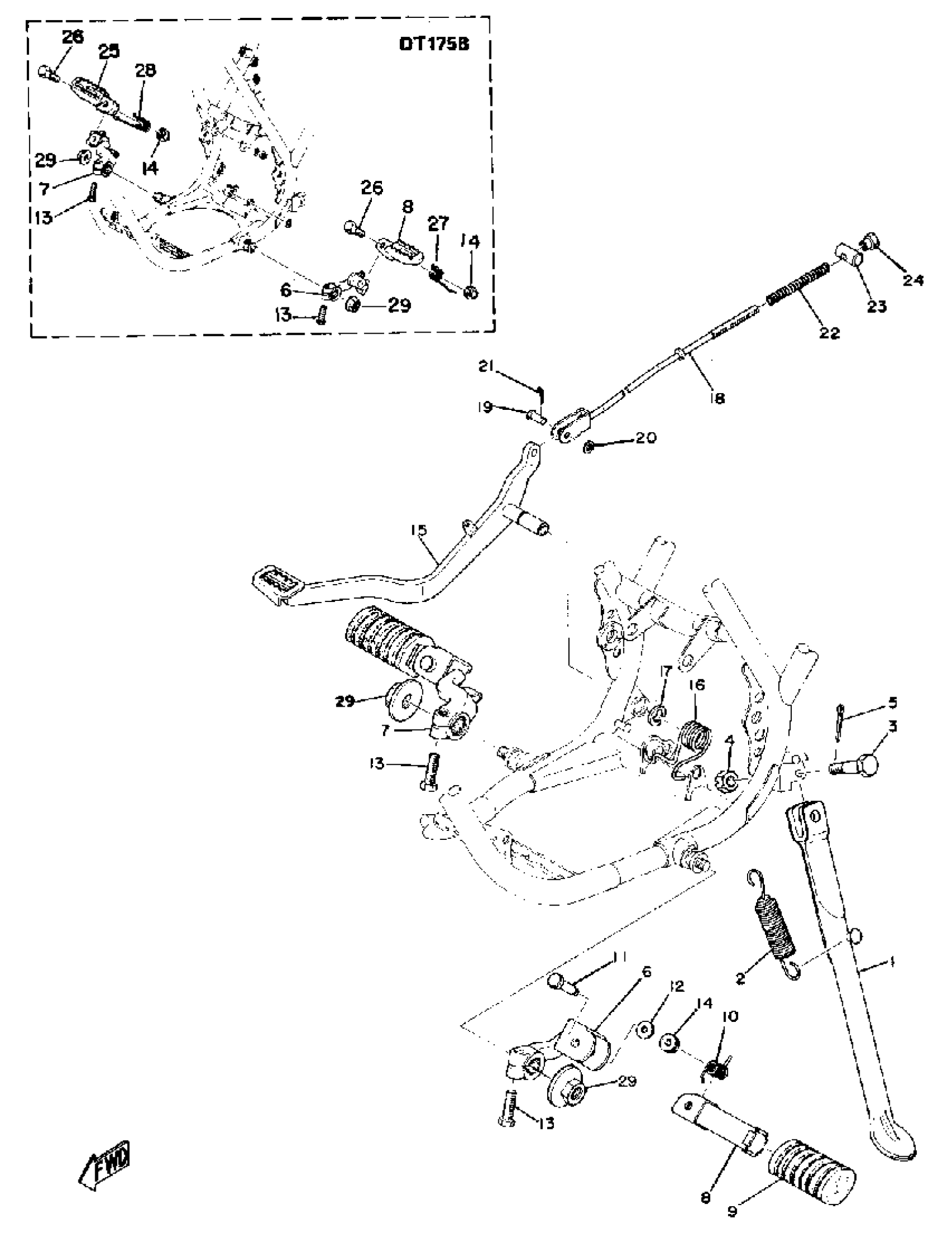

Yamaha DT175A (DT175A) 1974 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

248-27311-01-00

Unavailable

2

SPRING, TENSION (1L9)

90506-26270-00

$15.99

3

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

4

NUT, CASTLE

95307-10900-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

BRACKET, FOOTREST 1

(437-27412-00-00)

Unavailable

6

BRACKET, FOOTREST 1

(437-27412-10-00)

Unavailable

7

BRACKET, FOOTREST 2

(437-27422-00-00)

Unavailable

7

BRACKET, FOOTREST 2

437-27422-10-00

Unavailable

8

FOOT REST

214-27421-00-00

$37.99

8

FOOTREST 1

434-27411-00-35

Unavailable

9

COVER, FOOT REST

214-27413-00-00

$23.99

10

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

11

PIN (214-27418-00)

90243-08006-00

$12.49

12

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

13

BOLT (682)

97013-08025-00

Unavailable

14

NUT, U

95617-08100-00

Unavailable

14

NUT(3GG)

90179-12588-00

Unavailable

15

PEDAL, BRAKE

437-27211-00-33

Unavailable

16

SPRING, TORSION

90508-40165-00

Unavailable

17

CIRCLIP (137)

93430-10015-00

Unavailable

18

ROD, BRAKE

248-27231-00-00

Unavailable

19

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

22

SPRING, (180-27236-00)

90501-10245-00

Unavailable

23

PIN 1562723700

90249-12008-00

Unavailable

24

NUT (25K)

90179-06411-00

Unavailable

25

FOOTREST 2

434-27421-00-35

Unavailable

26

BOLT

90101-08250-00

Unavailable

27

SPRING, TORSION

90508-26138-00

Unavailable

28

SPRING, TORSION

90508-26139-00

Unavailable

29

NUT(3GG)

90179-12588-00

Unavailable
