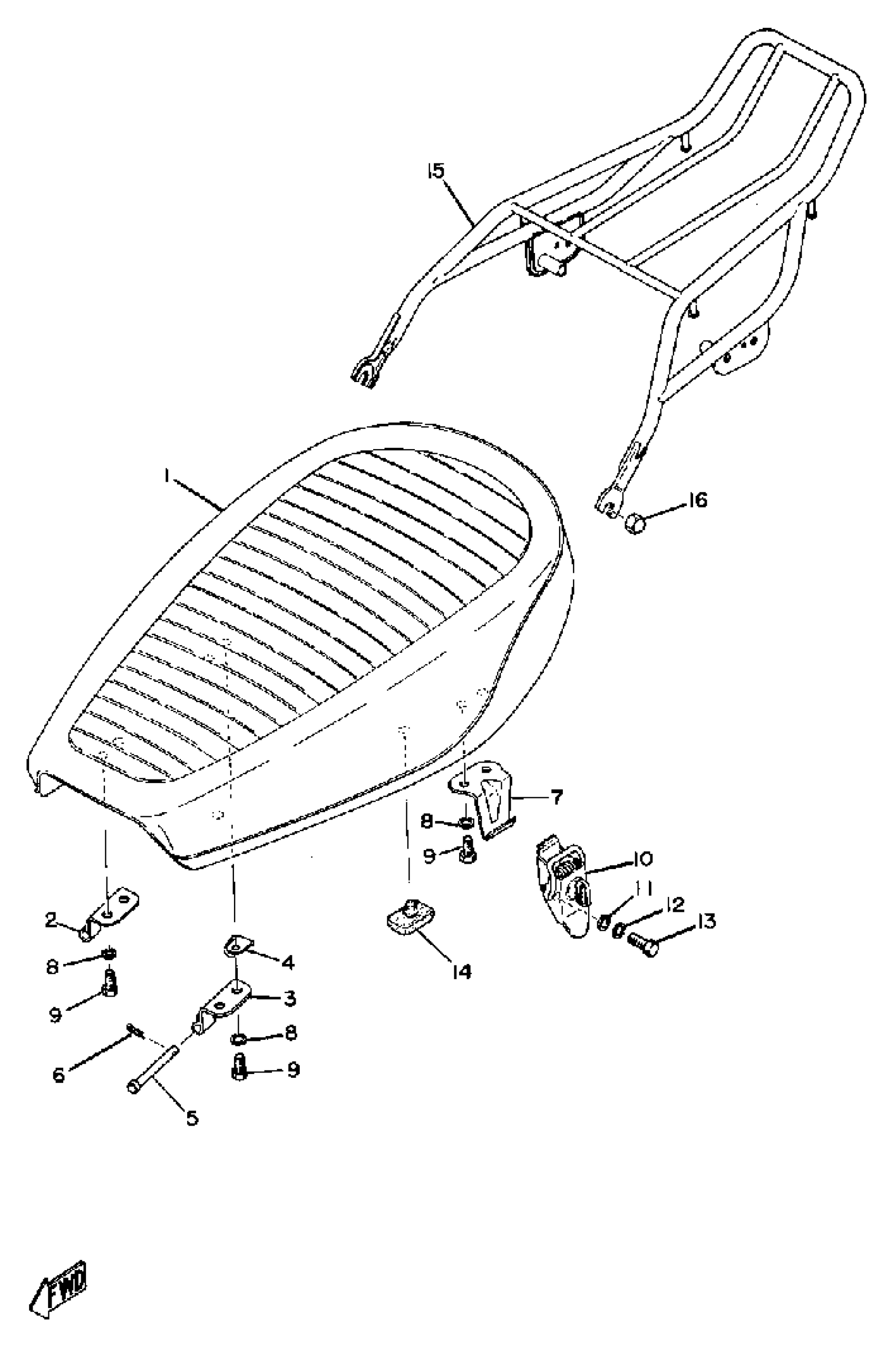

Yamaha DT175A (DT175A) 1974 SEAT Diagram
#
Description
Price
1
. COVER, SINGLE SEAT
437-24711-01-00
Unavailable
1
SINGLE SEAT ASSEMBLY
452-24730-01-00
Unavailable
2
HINGE, SEAT
248-24726-00-33
Unavailable
3
HINGE, SEAT
(437-24726-00-00)
Unavailable
4
STOPPER
(437-24768-00-00)
Unavailable
7
BRACKET, SEAT
(214-24728-00-33)
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
10
SEAT LEVER ASSY
1K8-24705-00-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
15
CARRIER ASSEMBLY
(443-24810-00-00)
Unavailable
16
NUT, CROWN (650)
95380-10800-00
Unavailable
