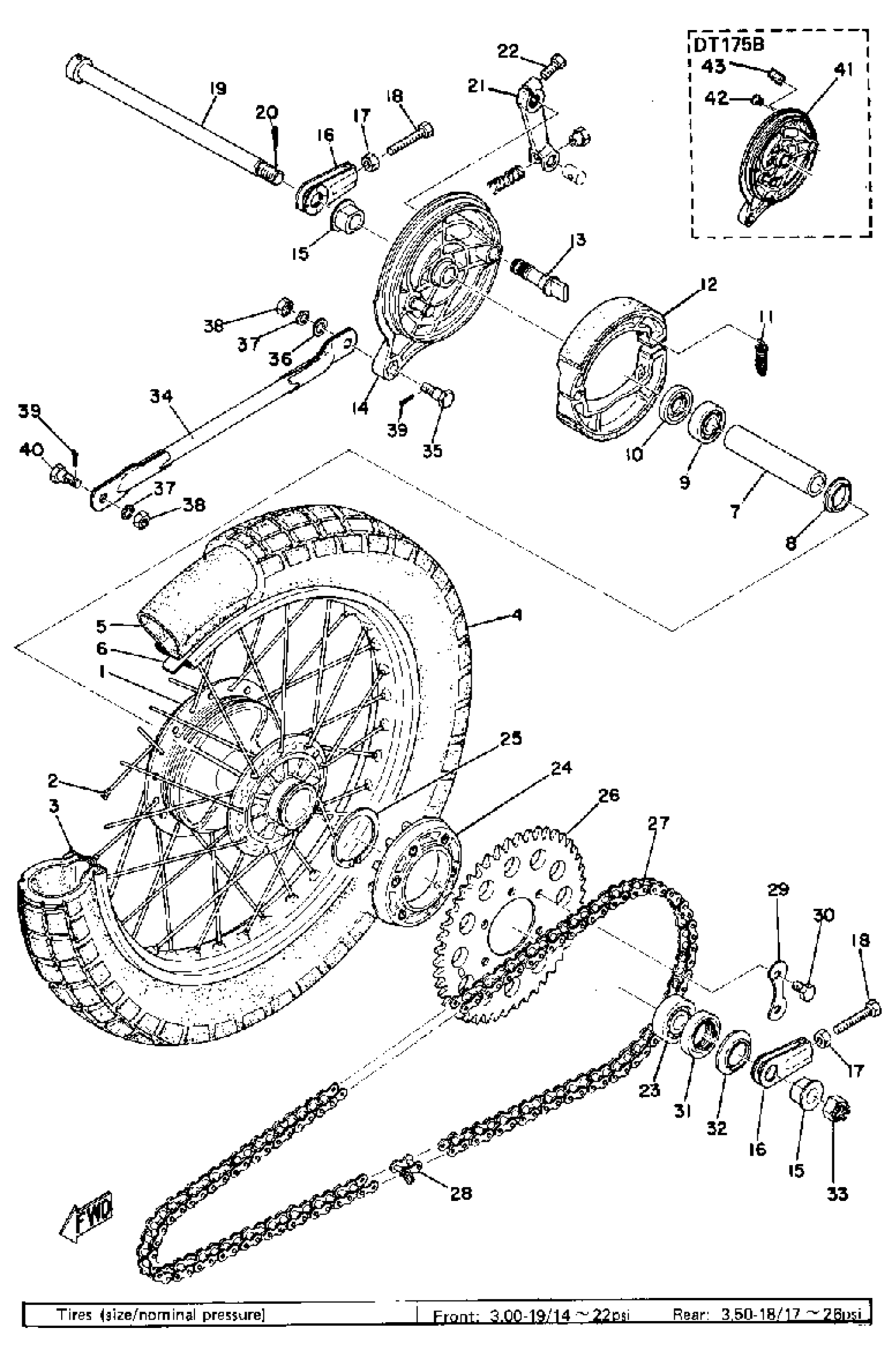

Yamaha DT175A (DT175A) 1974 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(443-25311-00-00)

Unavailable

2

SPOKE SET, REAR

248-25304-00-00

Unavailable

2

SPOKE SET, REAR

443-25304-00-00

Unavailable

3

RIM (1.85-18)

94418-18007-00

Unavailable

4

350X18 YOKO Y620

(94135-18319-00)

Unavailable

5

TUBE (2RH)

94232-18113-00

$29.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER

90560-15313-00

$46.99

8

FLANGE, SPACER

146-25115-00-00

$6.99

9

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

10

OIL SEAL (22X35X5)

93104-22018-00

$11.49

11

SPRING (5T9)

90506-17328-00

Unavailable

12

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

12

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

13

CAMSHAFT

2RH-25351-00-00

$34.99

14

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

15

COLLAR

90387-15115-00

Unavailable

16

PULLER, CHAIN

248-25388-00-00

Unavailable

17

. NUT

95380-08700-00

Unavailable

18

BOLT

90101-08060-00

Unavailable

19

AXLE, WHEEL (2R7-25381-00)

401-25381-00-00

Unavailable

20

PIN, COTTER

91490-30030-00

Unavailable

21

LEVER, CAM SHAFT

214-25355-00-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

BEARING

93306-30212-00

Unavailable

24

DAMPER

248-25364-00-00

Unavailable

25

CIRCLIP (8L9)

93410-52061-00

Unavailable

26

SPROCKET, DRVN45T

248-25445-11-00

Unavailable

26

SPROCKET, DRVN 48T

248-25448-11-00

Unavailable

26

SPROCKET, DRVN 48T

248-25448-11-00

Unavailable

26

SPROCKET,DRIVN 51T

248-25451-11-00

Unavailable

26

SPROCKET, DRVN 44T (44T)

4V1-25444-10-00

Unavailable

27

SET, CHAIN

94A40-07114-00

Unavailable

28

JOINT, CHAIN

94682-51001-00

Unavailable

29

WASHER, LOCK

22W-25412-00-00

Unavailable

30

BOLT(62E)

97013-08012-00

Unavailable

31

SEAL,OIL

93106-26005-00

Unavailable

32

COVER, DUST

401-25367-00-00

Unavailable

33

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

34

BAR, TENSION

(401-25371-01-00)

Unavailable

35

BOLT 1092537300

90109-08063-00

Unavailable

36

WASHER, PLAIN

92990-08200-00

Unavailable

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

. NUT

95380-08700-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

BOLT (183-25378-00)

90109-08368-00

Unavailable

41

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

42

GROMMET (397)

90480-10068-00

Unavailable

43

LABEL, INDICATOR

(437-25134-00-00)

Unavailable
