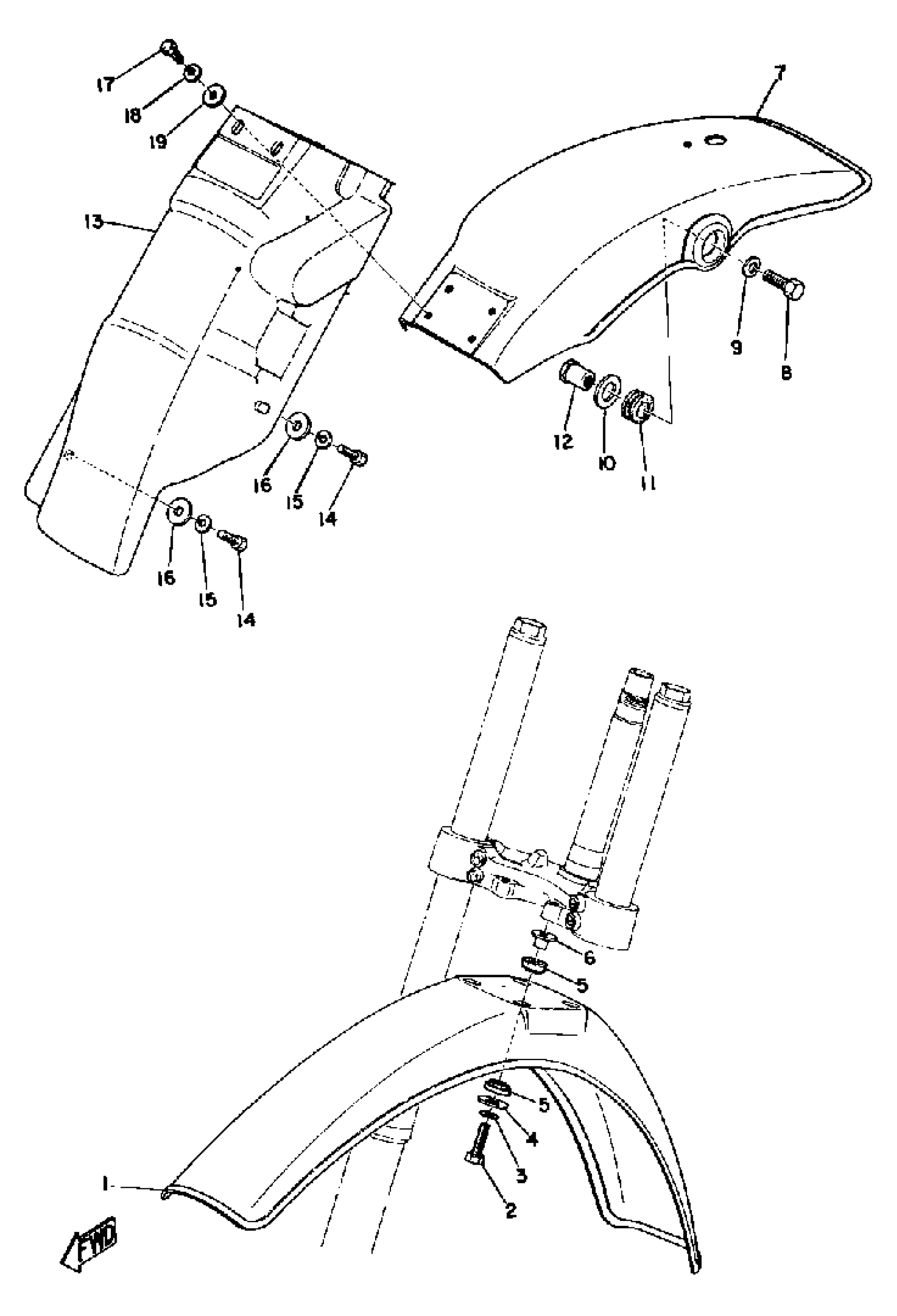

Yamaha DT175A (DT175A) 1974 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

403-21511-01-20

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$2.78

3

WASHER, SPRING

92995-06100-00

$2.95

4

WASHER, PLATE

90201-06380-00

$0.54

5

DAMPER, FENDER

322-21541-00-00

$6.28

6

COLLAR

90387-06158-00

$5.75

7

FENDER, REAR

(437-21610-00-20)

Unavailable

8

BOLT, HEXAGON

97017-08025-00

$6.95

8

BOLT

97013-08045-00

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

10

WASHER, PLATE

90201-15239-00

Unavailable

11

DAMPER, REAR

168-21639-00-00

$8.88

12

NUT, SPEC''L SHAPE

90179-08069-00

Unavailable

13

GUARD, MUD

(437-21620-00-00)

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

15

WASHER, SPRING

92995-06100-00

$2.95

16

WASHER, PLATE

90201-06380-00

$0.54

17

BOLT, HEXAGON

97017-06020-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

18

WASHER, SPRING

92995-06100-00

$2.95

19

FENDER, FRONT

401-21511-01-20

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

HIGH MNT FNDR ASSEMBLY

(ACC-11110-21-00)

Unavailable
