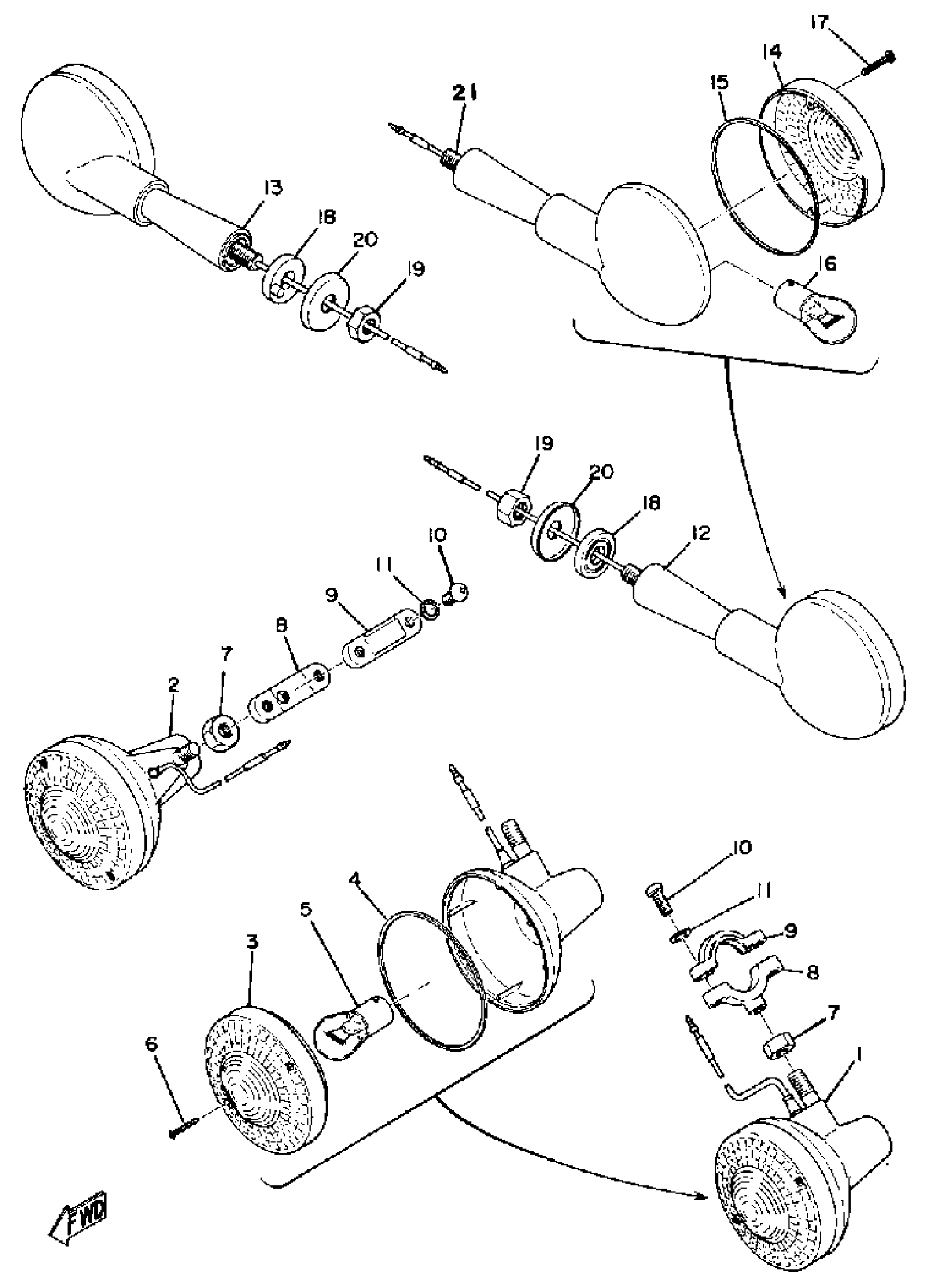

Yamaha DT175A (DT175A) 1974 FLASHER LAMP Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY

438-83310-62-93

Unavailable

2

FRONT FLASHER LIGHT ASSY

438-83310-62-93

Unavailable

3

LENS, FLASHER

341-83312-70-00

Unavailable

4

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

5

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

8

STAY, FLASHER 2

437-83328-01-00

Unavailable

9

STAY, FLASHER 1

275-83318-00-00

Unavailable

10

SCREW, PAN

98507-06014-00

$8.49

11

WASHER, TOOTH

92990-06300-00

Unavailable

12

R FLSHR LITE ASY

438-83330-61-93

Unavailable

13

R FLSHR LITE ASY

438-83330-61-93

Unavailable

14

. LENS, FLASHER

341-83332-70-00

Unavailable

15

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

16

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

17

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

18

COLLAR, FLASHER 2

437-83326-00-00

Unavailable

19

NUT(6L2)

95333-08600-00

$2.49

20

WASHER

90209-08008-00

Unavailable

21

. BOLT, STUD

360-83367-09-00

Unavailable
