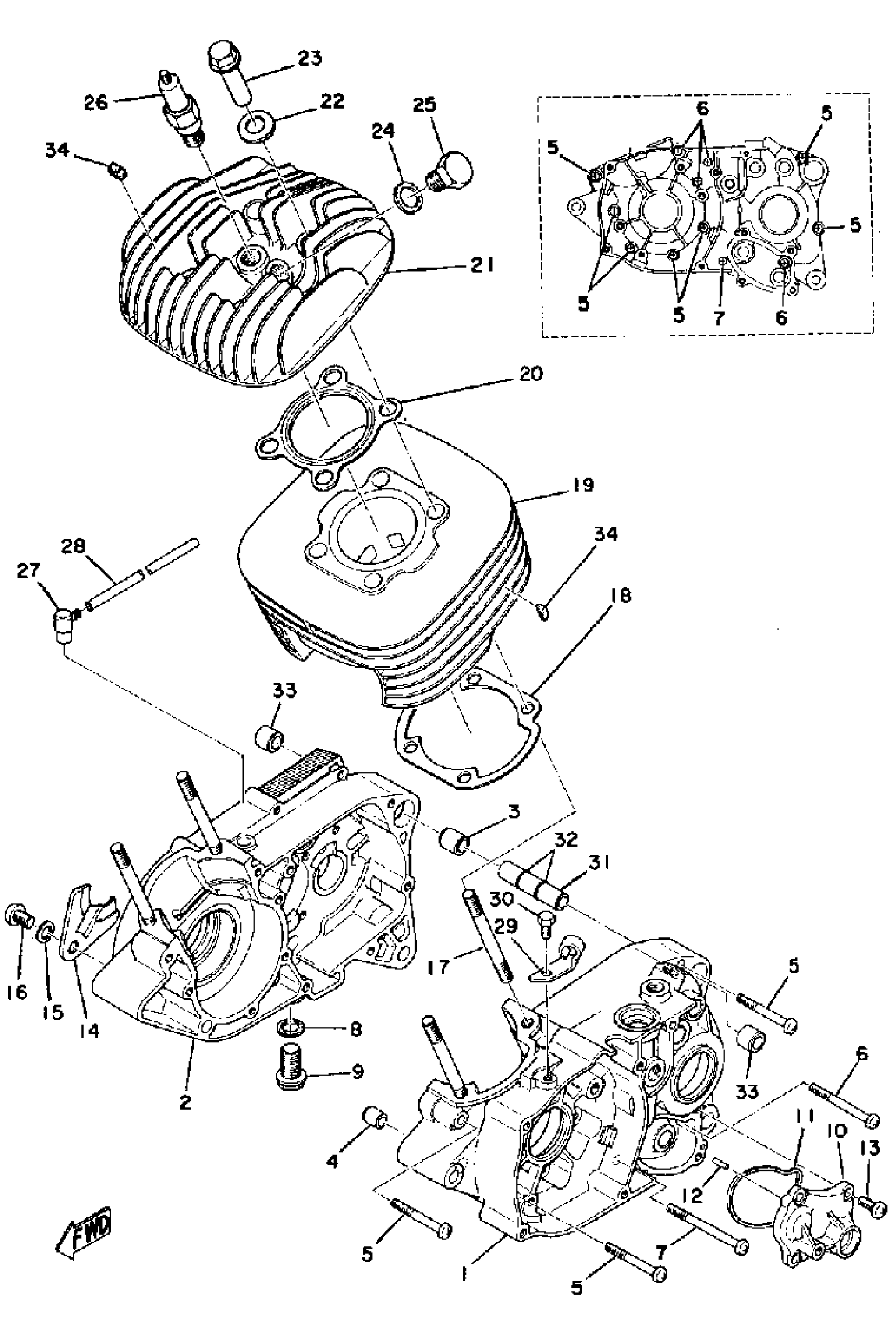

Yamaha DT175A (DT175A) 1974 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(443-15111-03-00)

Unavailable

2

CRANKCASE 2

(443-15121-01-00)

Unavailable

3

PIN, DOWEL

99530-20020-00

Unavailable

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

SCREW, BIND (JH1)

98580-06560-00

Unavailable

7

SCREW PAN HEAD

98580-06570-00

$18.99

8

GASKET (3JD1)

90430-12207-00

$7.99

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

10

COVER, SHIFTER

437-15419-01-00

$82.99

11

RING, RUBBER

401-15449-00-00

$29.99

12

PIN,DOWEL (603)

93603-12007-00

$2.55

13

SCREW, PAN

98507-06014-00

$8.49

14

HOLDER (R.H)

304-15128-00-00

$6.99

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

SCREW,PAN HEAD

98580-08012-00

Unavailable

17

BOLT (248-11361-00)

90116-08064-00

Unavailable

18

GASKET, CYLINDER

1WE-11351-00-00

Unavailable

19

CYLINDER 1

(443-11311-01-00)

Unavailable

20

GASKET, CYLINDER HEAD

251-11181-00-00

Unavailable

21

HEAD, CYLINDER 1

(443-11111-00-00)

Unavailable

22

WASHER PLATE 278111750000

90201-12362-00

Unavailable

23

NUT (3V6)

90179-08303-00

Unavailable

24

GASKET

214-11198-01-00

Unavailable

25

PLUG, BLIND

90340-14022-00

Unavailable

26

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

27

BREATHER

583-15371-00-00

Unavailable

28

HOSE

(90446-07009-00)

Unavailable

29

HOLDER, CLUTCH CABLE

401-15441-02-00

Unavailable

30

BOLT (661)

97013-06012-00

Unavailable

31

SPACER, ENGINE MOUNT

401-15317-00-00

Unavailable

32

O-RING (P95)

93210-11073-00

Unavailable

33

DAMPER

90388-08003-00

Unavailable

34

ABSORBER

434-11161-00-00

Unavailable
