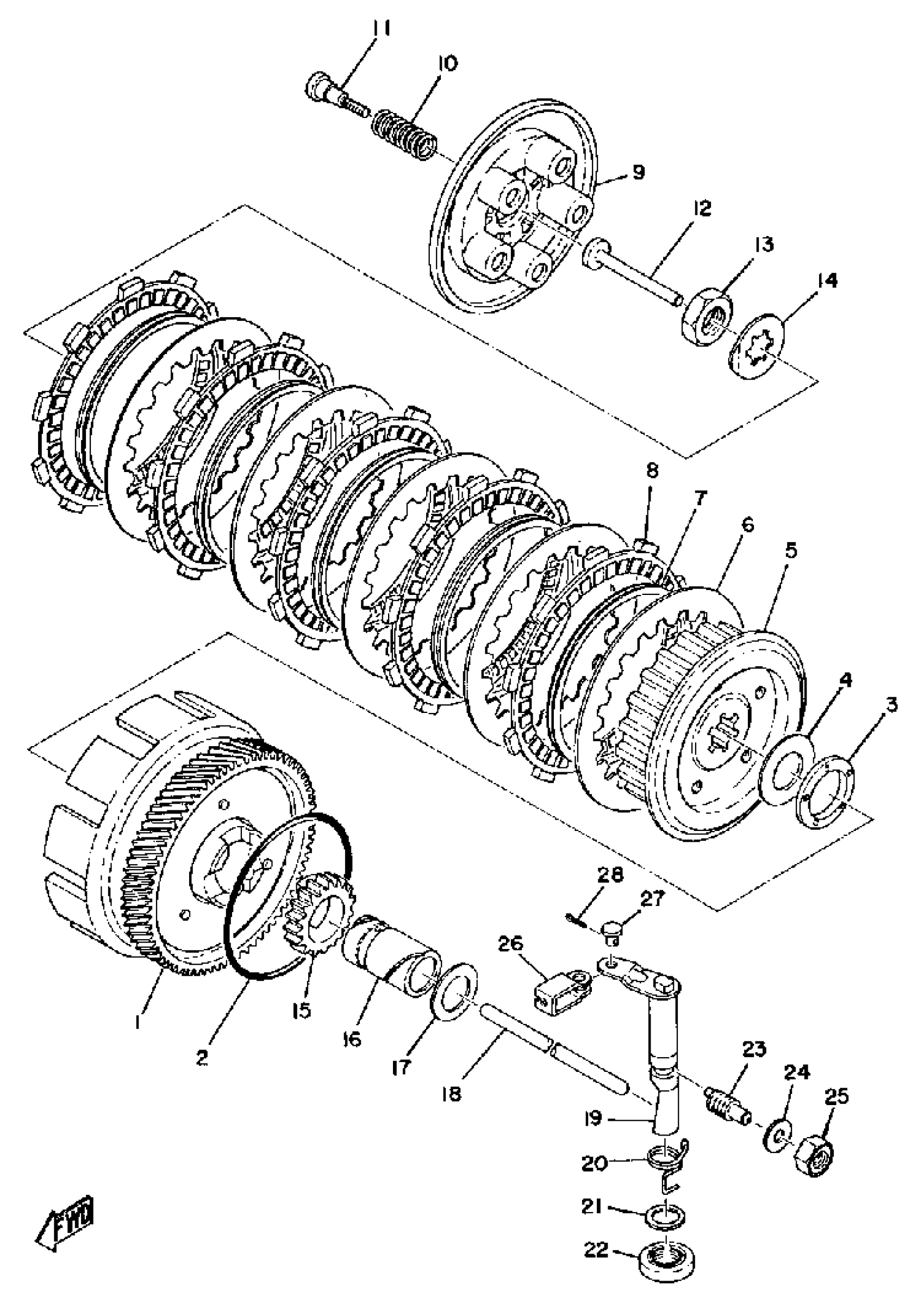

Yamaha DT175A (DT175A) 1974 CLUTCH Diagram

PRI DRVN GEAR

(401-16150-00-00)

Unavailable

PRI DRVN GEAR

(443-16150-00-00)

Unavailable

CLUTCH ASSEMBLY

(443-16301-01-00)

Unavailable

O-RING (173)

93210-85075-00

$4.99

O-RING (353)

93210-98202-00

$12.49

. BEARING, FLAT #41

93341-22603-00

Unavailable

. PLATE, THRUST 1

174-16154-00-00

Unavailable

. BOSS, CLUTCH

174-16371-01-00

Unavailable

PLATE, CLUTCH 1

336-16324-10-00

$18.49

RING, CUSHION

137-16367-00-00

$17.49

PLATE, FRICTION

3HA-16321-00-00

$31.99

PLATE, PRESSURE

132-16351-00-00

$55.99

SPRING COMPRESSION137163336000

90501-20124-00

$8.49

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

ROD,PUSH (1)

137-16356-00-00

$31.99

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

GEAR, KICK PINION

261-15631-01-00

Unavailable

COLLAR (174-16181-00)

90387-20439-00

Unavailable

PLATE, THRUST 2

248-16164-01-00

Unavailable

ROD, PUSH 2

401-16357-00-00

Unavailable

AXLE, PUSH LEVER

401-16382-02-00

Unavailable

SPRING, TORSION

90508-14132-00

Unavailable

WASHER PLATE 150251530000

90201-14217-00

Unavailable

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

SCREW, ADJUSTING

364-16343-00-00

Unavailable

GASKET (3JD1)

90430-12207-00

Unavailable

NUT, CLUTCH ADJUSTING

583-16344-00-00

Unavailable

JOINT

214-16389-00-00

Unavailable

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

. PIN, COTTER

91401-10015-00

Unavailable
