1981 Yamaha DT125H (DT125H) Speedometer-Tachometer Diagram

← All diagrams

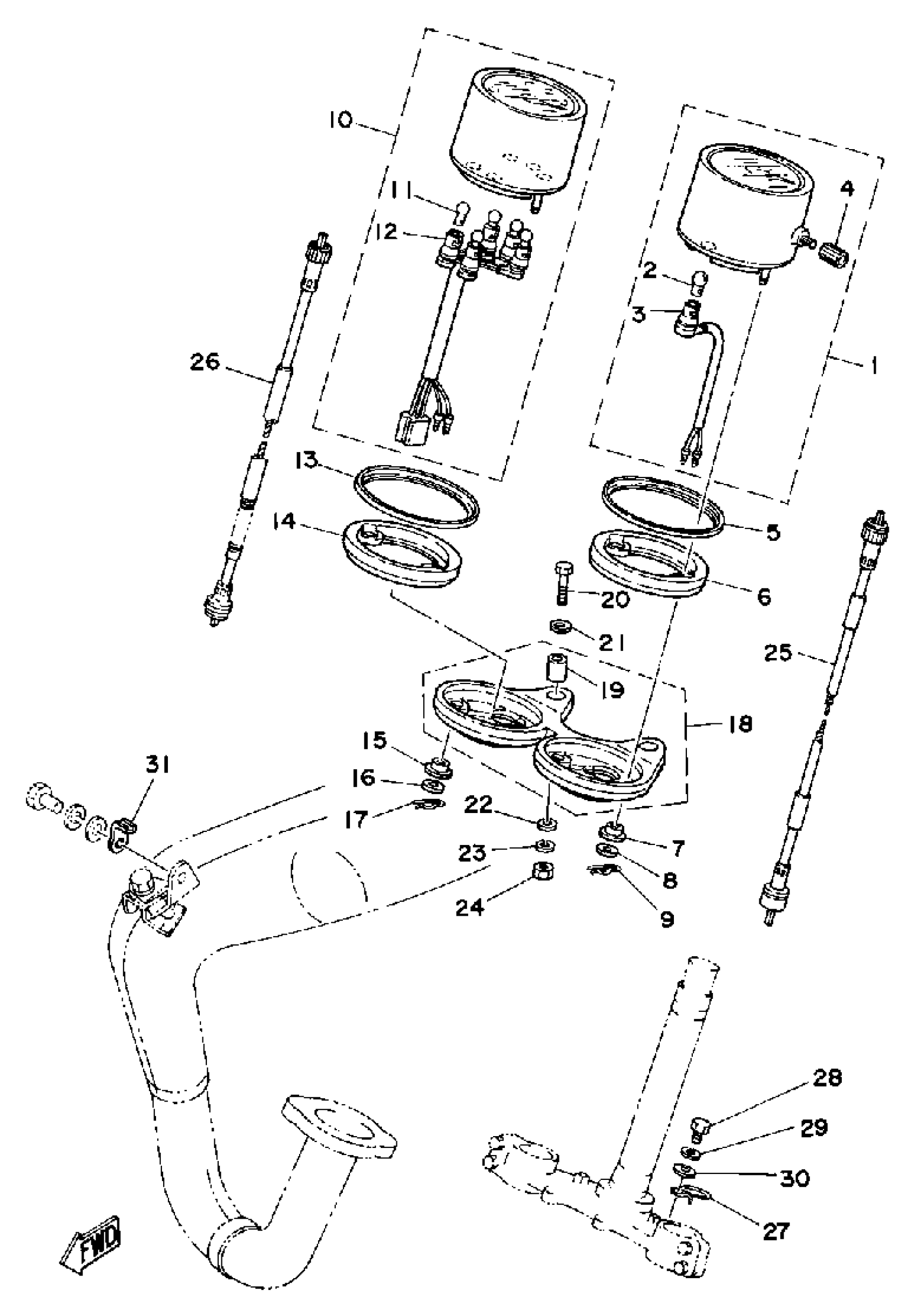

Find the part on the Speedometer-Tachometer diagram for your 1981 Yamaha DT125H (DT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha DT125H (DT125H) Speedometer-Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

2N4-83570-A0-00

1
Out of stock

2

BULB,(6V3W)

122-83516-10-00

1
Out of stock

3

SOCKET, METER

(1V1-83536-00-00)

1
Out of stock

4

. KNOB, TRIP METER

1E6-83578-10-00

1
Out of stock

5

RING, METER COVER

2A6-83506-00-00

1
Out of stock

6

DAMPER

2A6-83513-00-00

1
Out of stock

7

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

8

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

9

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

10

TACHOMETER ASY

2X1-83540-F0-00

1
Out of stock

11

BULB,(6V3W)

122-83516-10-00

1
Out of stock

12

SOCKET CORD ASSEMBLY

(2A6-83520-00-00)

1
Out of stock

13

RING, METER COVER

2A6-83506-00-00

1
Out of stock

14

DAMPER

2A6-83513-00-00

1
Out of stock

15

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

16

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

17

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

18

BRACKET, METER

3J0-83519-00-00

1
Out of stock

19

BUSH, SPEC''L RUBBER (214-83528-00)

90385-06001-00

1
Out of stock

20

BOLT, HEXAGON

97017-06045-00

—
Out of stock

21

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock

26

TACHOMETER CABLE

3J0-83560-00-00

1
Out of stock

27

CLAMP

(2A6-83595-00-00)

1
Out of stock

28

BOLT (661)

97013-06012-00

—

$4.71

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

CLAMP

2A6-83596-00-00

1
Out of stock
