1981 Yamaha DT125H (DT125H) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1981 Yamaha DT125H (DT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

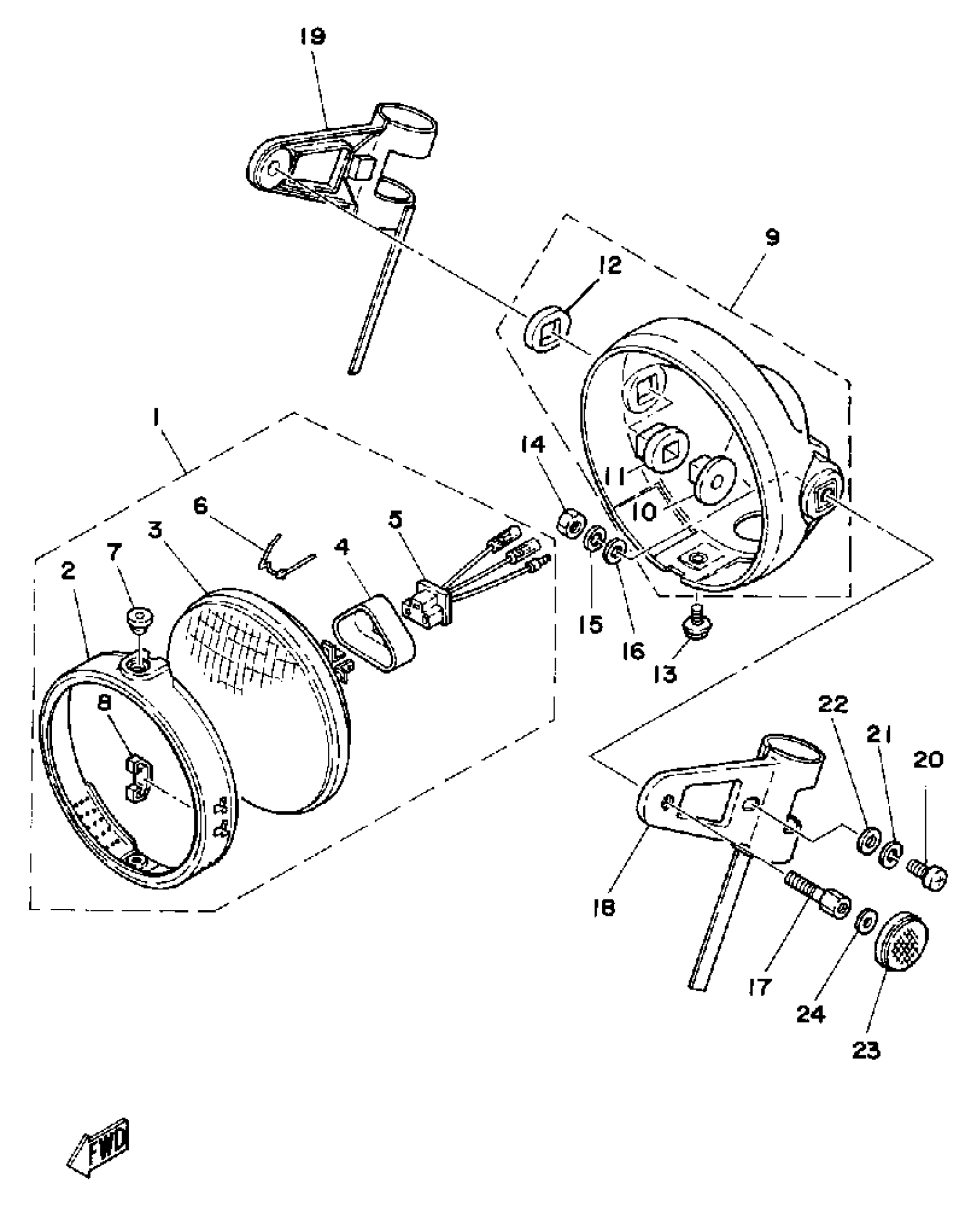

1981 Yamaha DT125H (DT125H) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

(3J0-84110-60-00)

1
Out of stock

2

RING, RETAINING

3J0-84195-60-00

—

$52.78

In stock

3

. LENS ASSEMBLY

2A6-84120-60-00

1
Out of stock

4

. COVER, SOCKET

341-84397-61-00

1
Out of stock

5

SOCKET

371-84312-60-00

—

$26.52

In stock

6

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

7

COLLAR

1M1-84133-60-00

—

$6.86

In stock

8

. SPACER

498-84128-60-00

1
Out of stock

9

BODY ASSY, HEADLIGHT

3J0-84130-60-00

—

$65.58

In stock

10

COLLAR, BODY FITTING

498-84145-60-00

1

$6.52

In stock

11

DAMPER, HEAD LAMP A

498-84163-60-00

1

$5.68

In stock

12

DAMPER

1M1-84164-60-00

1

$22.31

In stock

13

BOLT, HEXAGON

1M1-84137-60-00

1

$5.17

In stock

14

NUT(6L2)

95333-08600-00

1

$3.20

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

BOLT

90109-08448-00

1
Out of stock

18

STAY, HEADLIGHT 1

2N4-84118-00-00

1
Out of stock

19

STAY, HEADLIGHT 2

2N4-84119-00-00

1
Out of stock

20

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

24

WASHER, PLATE(3AJ)

90202-05191-00

—

$6.01

In stock
