Description

Price

1

SEMI-DBL-SEAT ASSEMBLY (2N4-24770-90)

2N4-W2473-00-00

Unavailable

2

. COVER, SM-DBL SEAT

3M2-24771-00-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$10.99

4

DAMPER, SEAT

214-24724-00-00

$7.99

5

BRACKET, SEAT

1M1-24748-00-00

Unavailable

6

BRACKET, SEAT REAR

2A6-24738-00-00

Unavailable

7

BOLT (661)

97013-06012-00

$5.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT(62E)

97013-08012-00

Unavailable

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

BAND, SEAT

(2A6-24734-00-00)

Unavailable

12

WASHER

2A8-24736-00-00

Unavailable

13

BOLT, HEXAGON

97013-08020-00

$1.16

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

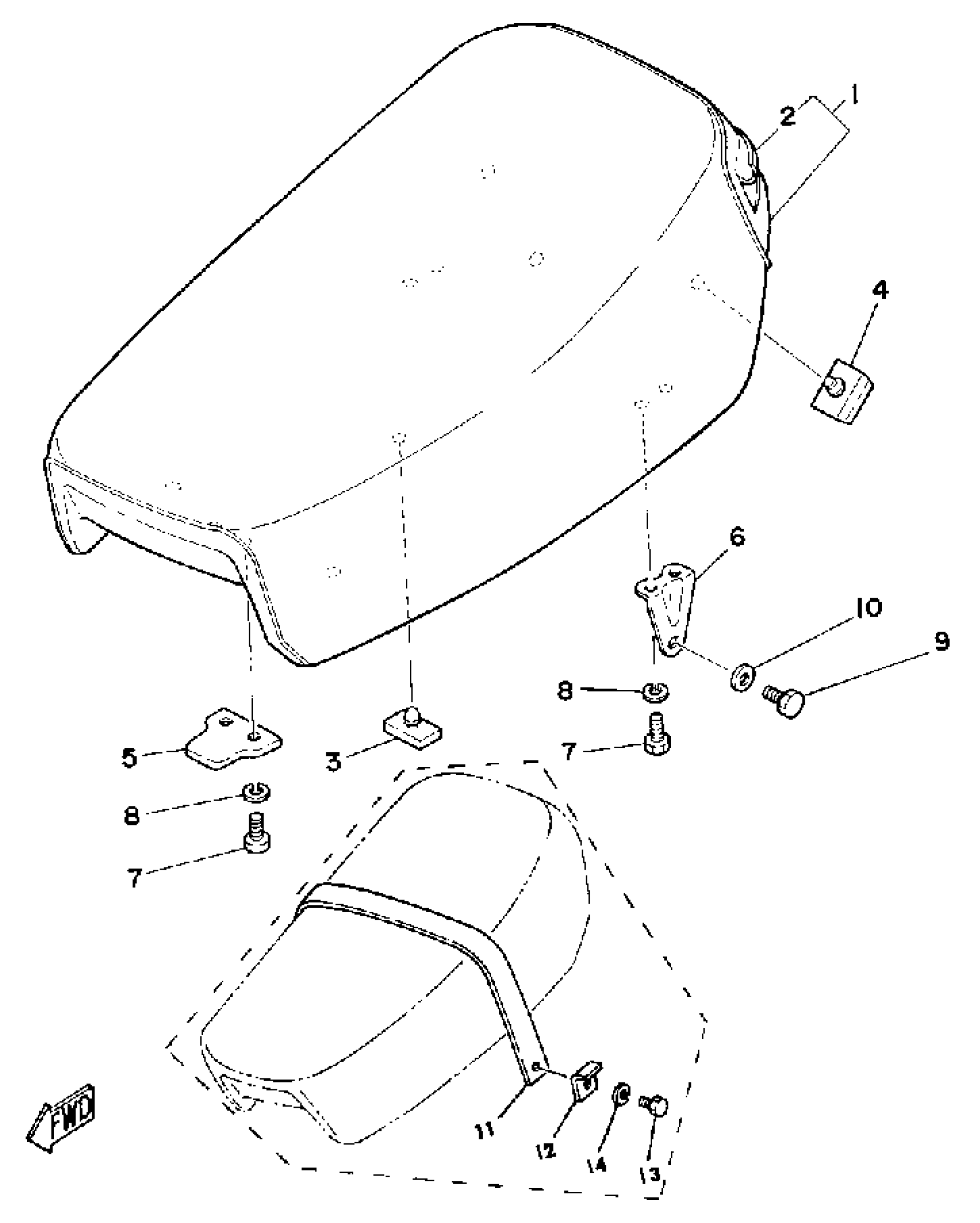

Yamaha DT125H (DT125H) 1981 SEAT Diagram

SEMI-DBL-SEAT ASSEMBLY (2N4-24770-90)

. COVER, SM-DBL SEAT

DAMPER, SEAT

DAMPER, SEAT

BRACKET, SEAT

BRACKET, SEAT REAR

BOLT (661)

WASHER, SPRING

BOLT(62E)

.. WASHER, PLATE

BAND, SEAT

WASHER

BOLT, HEXAGON

YBS67-8 WASHER, SPRING
