Description

Price

1

KICK AXLE ASSEMBLY

2A6-15660-01-00

Unavailable

2

GEAR, KICK

1W1-15641-00-00

Unavailable

3

CLIP 315156870000

90468-26048-00

$8.49

4

HOLDER, KICK GEAR

248-15654-00-00

$8.99

5

CIRCLIP(4A6)

99009-30400-00

$8.49

6

COVER, SPRING

401-15676-00-00

$7.99

7

SPRING, TORSION (1W1)

90508-26346-00

Unavailable

8

SPACER, KICK AXLE SPRING

1W1-15666-00-00

$16.49

9

GEAR, KICK IDLE

525-15651-00-00

$68.99

10

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

$4.78

11

CIRCLIP

93440-15012-00

$8.49

12

KICK CRANK ASSY

2A6-15620-02-00

Unavailable

13

BOSS, KICK CRANK

1W1-15621-01-00

Unavailable

14

SPRING, COMPRESSION (1W1)

90501-10459-00

$7.49

15

BALL

93503-16003-00

$2.72

16

WASHER, PLATE (525)

90201-12541-00

Unavailable

17

CIRCLIP (137)

93430-08007-00

Unavailable

18

COVER, KICK LEVER

156-15618-01-00

Unavailable

19

COVER, KICK CRANK BOSS

1W1-15618-01-00

Unavailable

20

BOLT, SOCKET

91317-08025-00

Unavailable

21

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

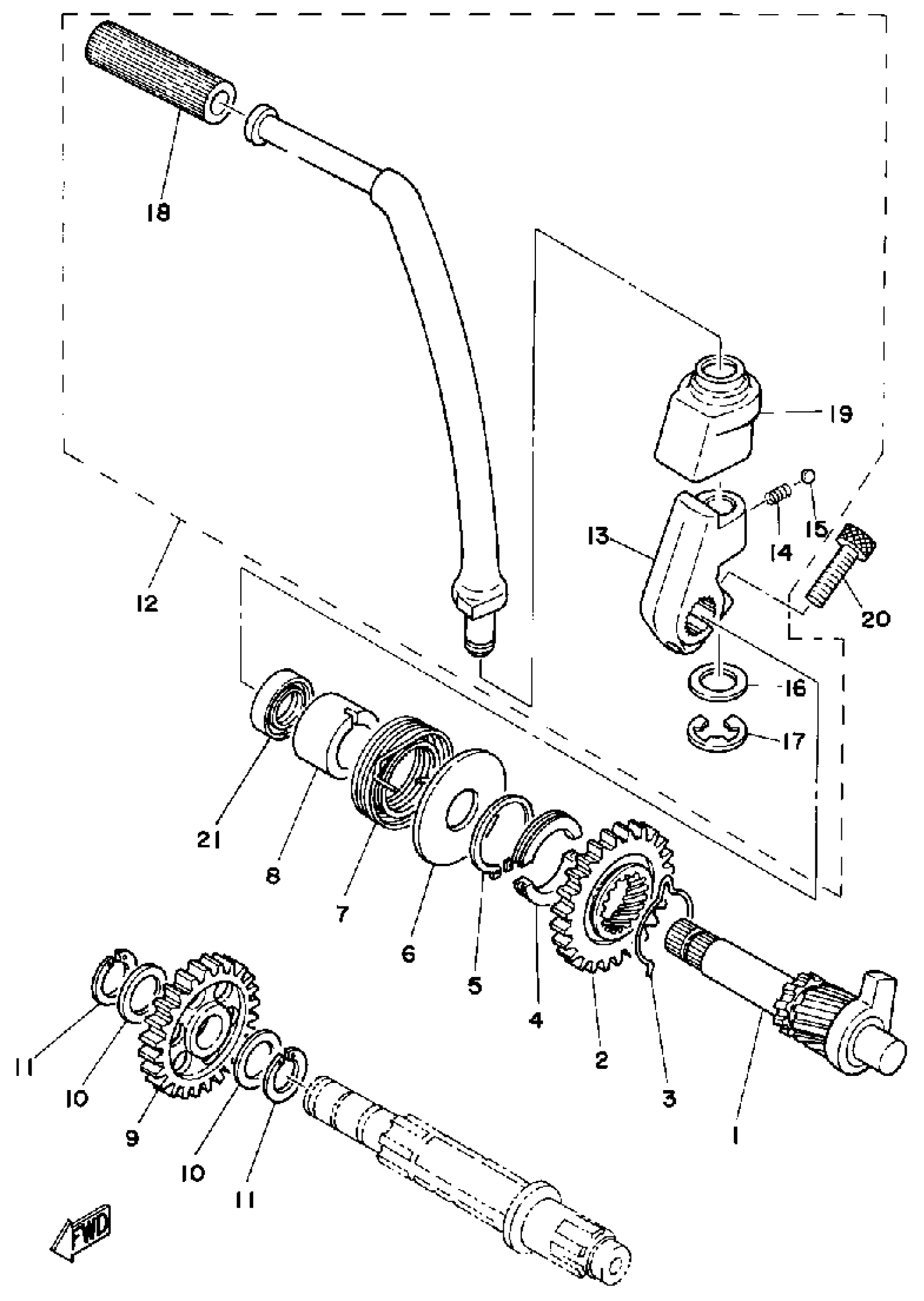

Yamaha DT125H (DT125H) 1981 KICK STARTER Diagram

KICK AXLE ASSEMBLY

GEAR, KICK

CLIP 315156870000

HOLDER, KICK GEAR

CIRCLIP(4A6)

COVER, SPRING

SPRING, TORSION (1W1)

SPACER, KICK AXLE SPRING

GEAR, KICK IDLE

SHIM, MAIN AXLE 0.5MM

CIRCLIP

KICK CRANK ASSY

BOSS, KICK CRANK

SPRING, COMPRESSION (1W1)

BALL

WASHER, PLATE (525)

CIRCLIP (137)

COVER, KICK LEVER

COVER, KICK CRANK BOSS

BOLT, SOCKET

OIL SEAL (17X25X4-401)
