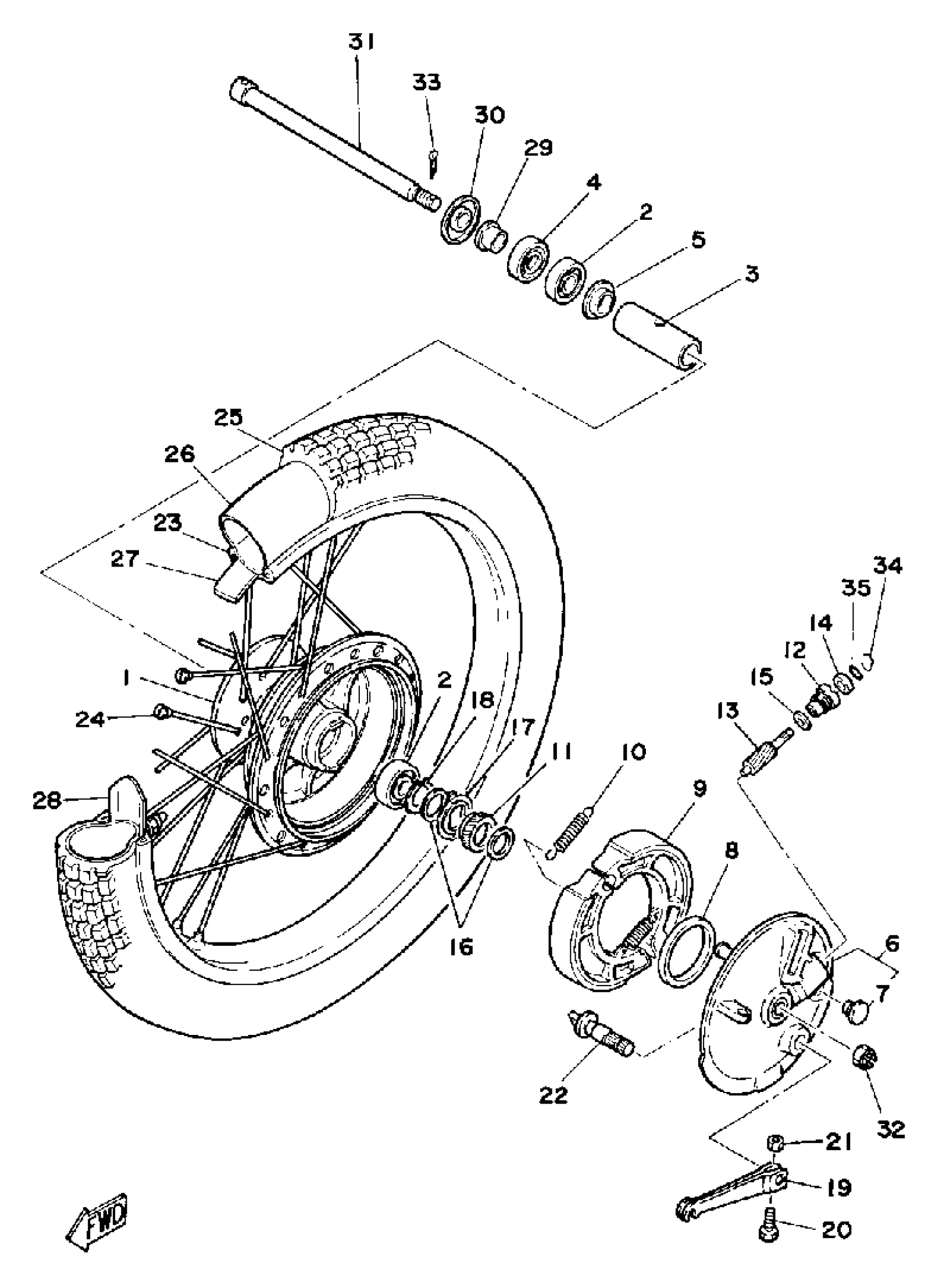

Yamaha DT125H (DT125H) 1981 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

2A6-25111-00-98

Unavailable

2

BEARING

93306-30102-00

$39.99

3

SPACER

90560-12138-00

Unavailable

4

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

5

FLANGE, SPACER

109-25315-00-00

$7.99

6

BRAKE SHOE PLT ASSEMBLY (2N4-25120-00-98)

2N4-25016-01-98

Unavailable

7

GROMMET (397)

90480-10068-00

$8.49

8

SEAL,OIL

93105-47007-00

$15.99

9

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

10

SPRING (5T9)

90506-17328-00

Unavailable

11

GEAR, DRIVE

248-25135-11-00

Unavailable

12

BUSHING

109-25136-00-00

$10.99

13

GEAR, METER

(248-25138-11-00)

Unavailable

14

OIL SEAL (7X14X4-136)

93104-07003-00

$8.49

15

WASHER, PLATE 1832514600

90201-07076-00

$7.49

16

WASHER, PLATE 1832514700

90201-20269-00

Unavailable

17

CLUTCH, METER

183-25149-00-00

Unavailable

18

CIRCLIP(1AR)

99009-20400-00

Unavailable

19

LEVER, CAMSHAFT 1

5H0-25155-00-00

Unavailable

20

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

CAMSHAFT

2RH-25351-00-00

Unavailable

23

RIM

94416-21006-00

Unavailable

24

SPOKE SET

2A6-25104-01-00

Unavailable

25

275X21 NT107DT125G

(94127-21392-00)

Unavailable

26

TUBE, FRONT (2A6)

94227-21123-00

Unavailable

27

BAND, RIM (2A6)

94330-21084-00

Unavailable

28

SPACER, BEAD

1T1-25194-00-00

Unavailable

29

COLLAR (462)

90387-12265-00

Unavailable

30

COVER, HUB DUST

2K5-25118-00-00

Unavailable

31

SHAFT, WHEEL

353-25381-00-00

Unavailable

32

NUT 3532518200

90171-10004-00

Unavailable

33

PIN, COTTER

91490-20025-00

Unavailable

34

RING, STOP

102-25137-00-00

Unavailable

35

O-RING (26H)

93210-14579-00

Unavailable
