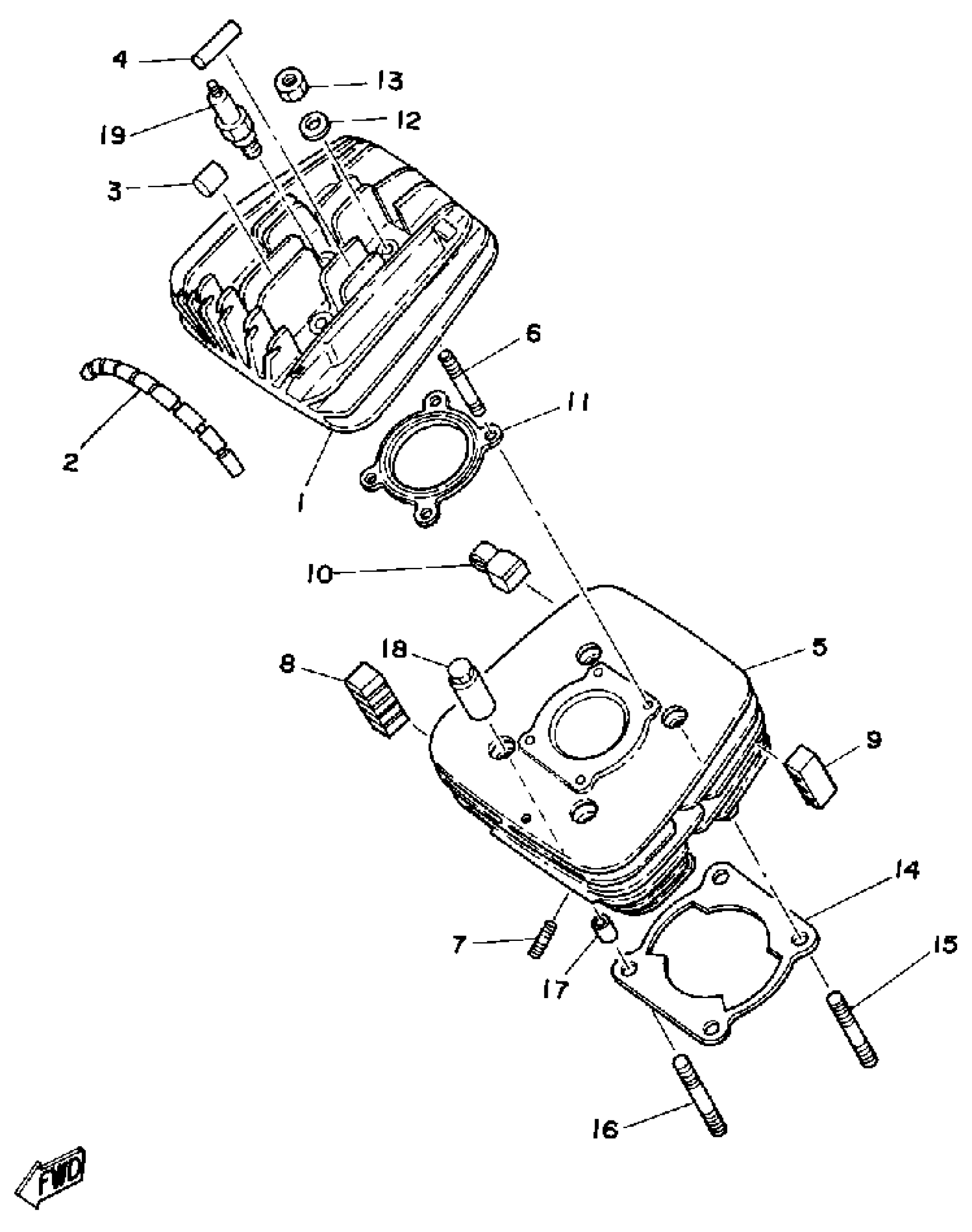

Yamaha DT125H (DT125H) 1981 CYLINDER HEAD-CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(3J0-11111-00-00)

Unavailable

2

ABSORBER 1

2A6-11161-00-00

Unavailable

3

ABSORBER 2

2A6-11162-00-00

Unavailable

4

ABSORBER 2

3LN-2139U-00-00

Unavailable

5

CYLINDER 1

2A6-11311-00-00

Unavailable

6

BOLT, STUD(3XV)

90116-08564-00

$10.49

7

BOLT STUD 306111790000

90116-06016-00

$4.14

8

ABSORBER 3

2A6-11127-00-00

Unavailable

9

ABSORBER 3

2A6-11127-00-00

Unavailable

10

ABSORBER 5

2A6-11129-00-00

Unavailable

11

GASKET, CYLINDER HEAD

2A6-11181-00-00

$9.99

12

WASHER, PLATE (397)

90201-08100-00

$8.49

13

NUT(6L2)

95333-08600-00

$2.49

14

GASKET, CYLINDER

18G-11351-02-00

$7.99

15

BOLT, STUD

95617-10630-00

Unavailable

16

BOLT,STUD

95617-10640-00

Unavailable

17

PIN, DOWEL

99530-14016-00

Unavailable

18

NUT

90179-10021-00

Unavailable

19

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable
