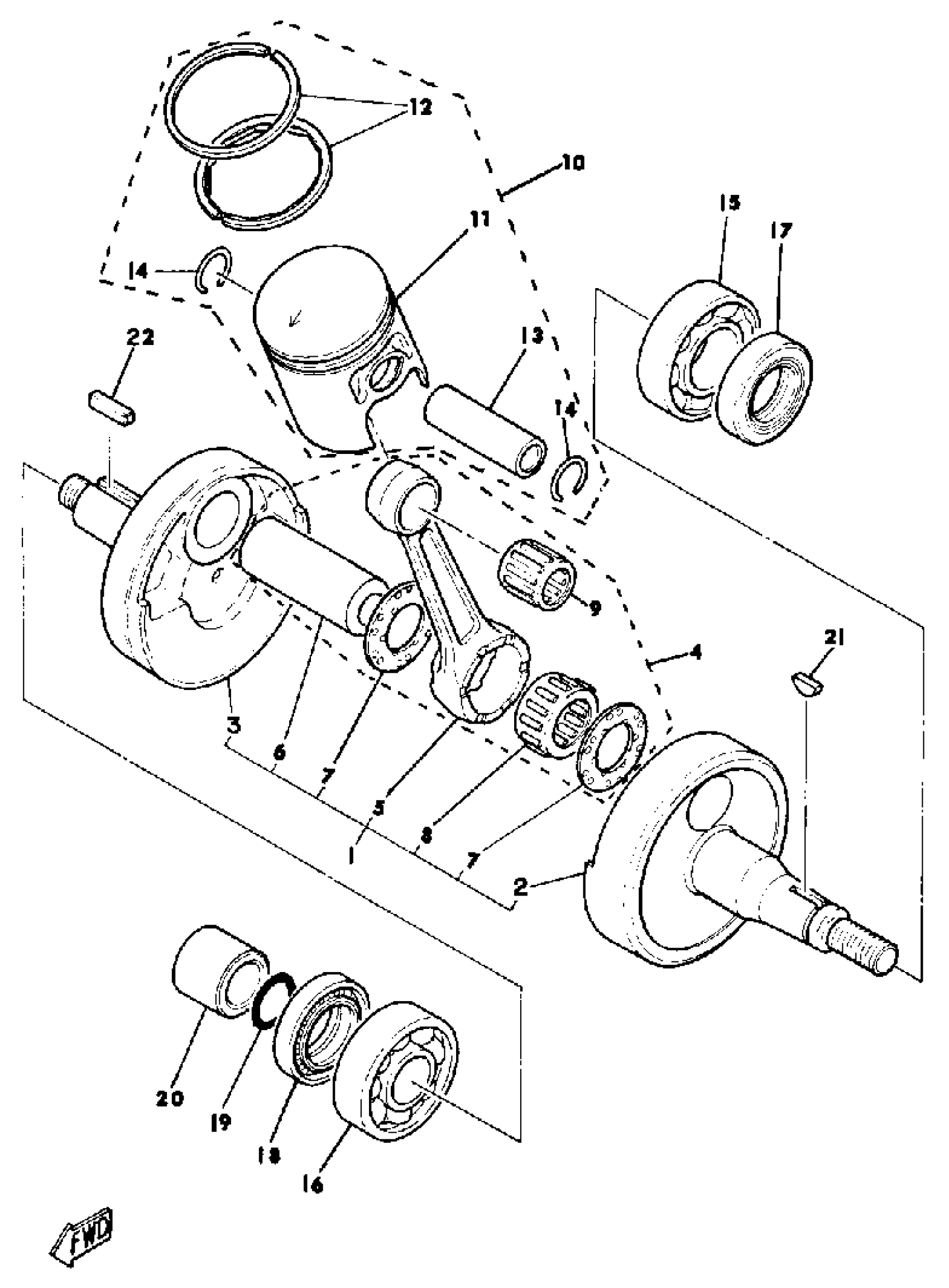

Yamaha DT125H (DT125H) 1981 CRANKSHAFT-PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

2N4-11400-00-00

Unavailable

2

CRANK (L.H)

1W1-11412-01-00

Unavailable

3

CRANK (R.H)

1W1-11422-01-00

Unavailable

4

.. CONNECTING ROD ASSEMBLY

2N4-11650-00-00

Unavailable

5

. ROD, CONNECTING 1

25V-11651-00-00

Unavailable

6

PIN, CRANK 1

3M5-11681-00-00

$24.99

7

WASHER (29L)

90209-22248-00

Unavailable

8

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

9

BEARING, NEEDLE (24X)

93310-216L2-00

$33.99

10

PISTON KIT STD

(2N4-11630-00-00)

Unavailable

11

. PISTON STD

2A6-11631-00-96

Unavailable

12

PISTON RING SET (STD)

2N4-11610-00-00

$65.99

13

PIN, PISTON

137-11633-10-00

$27.99

14

CIRCLIP (1L9)

93450-17044-00

$8.49

15

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

16

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

17

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

18

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

19

O-RING(3KX)

93210-180A6-00

Unavailable

20

COLLAR, DISTANCE (525)

90387-20488-00

Unavailable

21

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

22

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
