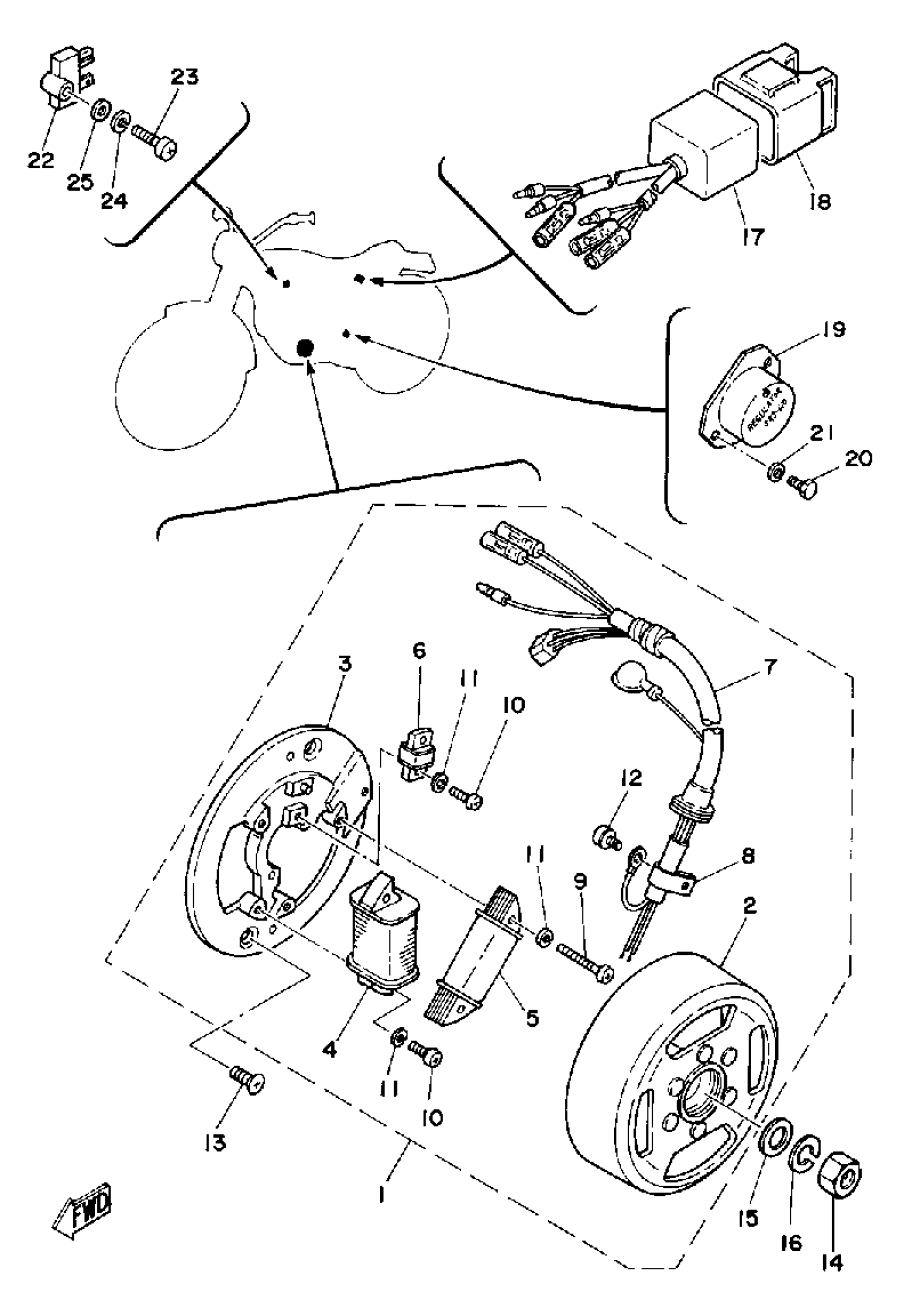

Yamaha DT125H (DT125H) 1981 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

3J0-85500-21-00

Unavailable

2

ROTOR ASSEMBLY

(3J0-85550-20-00)

Unavailable

3

. MAGNETO BASE KIT

99999-01515-00

Unavailable

4

COIL, SOURCE

3J0-85512-20-00

Unavailable

5

. COIL, LIGHTING 1

3J0-85513-20-00

Unavailable

6

. COIL, PULSER

3M2-85580-20-00

Unavailable

7

. LEAD WIRE ASSEMBLY

3J0-85515-20-00

Unavailable

8

CLAMP, LEAD

104-81328-20-00

$6.99

9

SCREW, PAN

98507-04030-00

Unavailable

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

13

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

14

NUT(55K)

90170-12347-00

$10.49

15

WASHER, PLATE (583)

90201-12593-00

$9.49

16

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

17

C.D.I, UNIT ASSY

3J0-85540-20-00

Unavailable

18

BAND

2A7-85546-00-00

Unavailable

19

VOLTAGE REG ASY

443-81910-62-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

RECTIFIRE ASSY

1M1-81970-60-00

Unavailable

23

SCREW, PAN HEAD

98517-05020-00

Unavailable

23

SCREW, PAN HEAD

98580-05020-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

WASHER, PLAIN (646)

92990-05600-00

Unavailable
