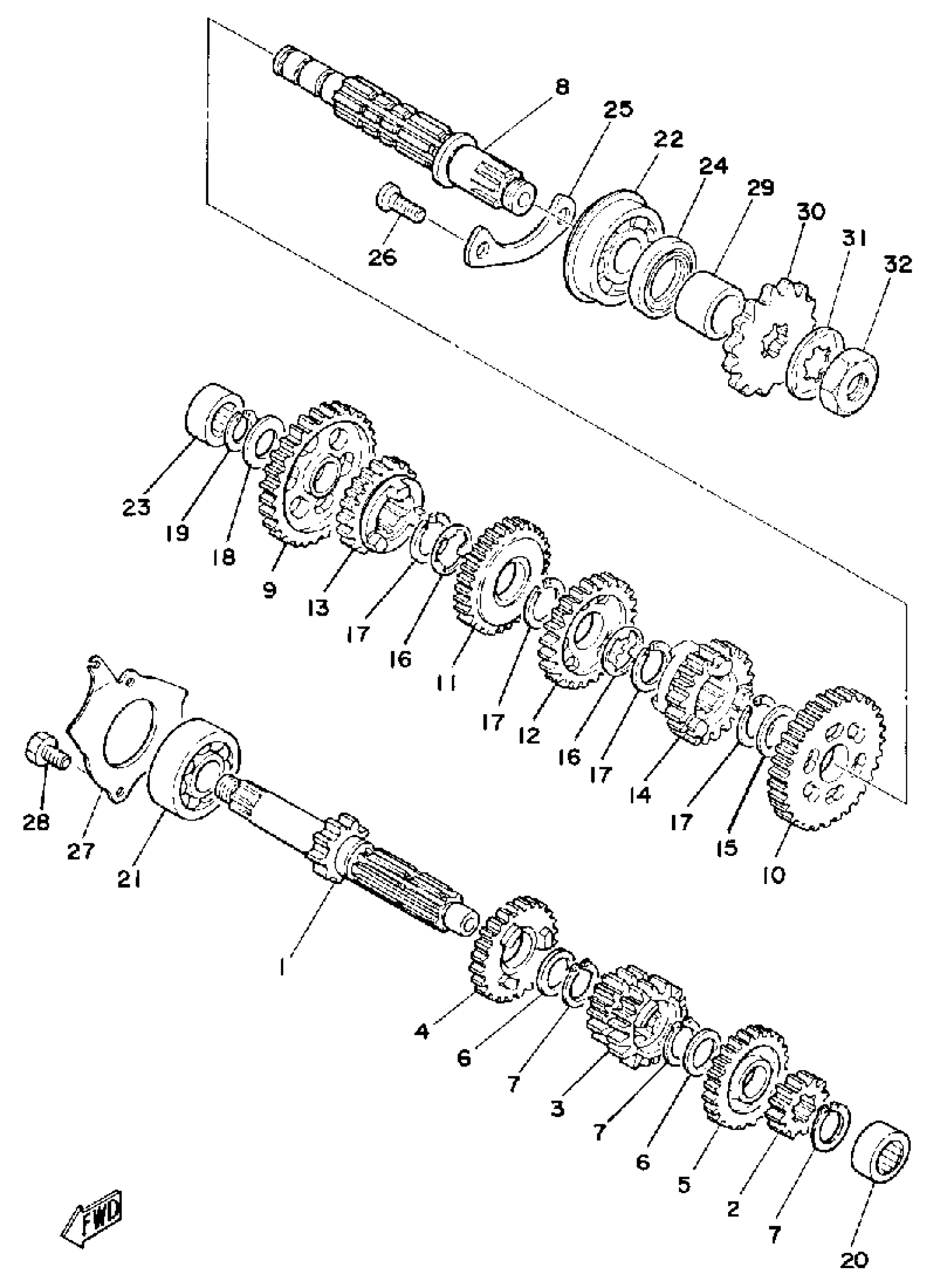

Yamaha DT125G (DT125G) 1980 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

2A6-17411-00-00

Unavailable

2

GEAR, 2ND PINION

2A6-17121-00-00

Unavailable

3

GEAR, 3RD PINION

2A6-17131-00-00

Unavailable

4

GEAR, 5TH PINION

1W2-17151-00-00

Unavailable

5

GEAR, 6TH PINION

1W2-17161-00-00

Unavailable

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

AXLE, DRIVE

2A6-17421-00-00

Unavailable

9

GEAR, 1ST WHEEL (2A6-17211-00)

2A6-17211-01-00

Unavailable

10

GEAR, 2ND WHEEL (2A6-17221-00)

2A6-17221-01-00

Unavailable

11

GEAR, 3RD WHEEL

2A6-17231-00-00

Unavailable

12

GEAR, 4TH WHEEL

1W2-17241-00-00

Unavailable

13

GEAR, 5TH WHEEL

2A6-17251-00-00

Unavailable

14

GEAR, 6TH WHEEL

2A6-17261-00-00

Unavailable

15

WASHER, PLATE (537)

90201-22555-00

$8.49

16

WASHER (537)

90209-18135-00

Unavailable

17

CIRCLIP (537)

93410-22039-00

Unavailable

18

WASHER (566)

90201-15701-00

Unavailable

19

CIRCLIP

93440-15012-00

Unavailable

20

BRG,CYL-CAL ROLLER 16G KY (1W1

93311-41530-00

Unavailable

21

BEARING(4HM)

93306-30317-00

Unavailable

22

BRG,R-B 6304 52MM 150G NT

93306-30411-00

Unavailable

23

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

24

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

25

PLATE 2, BEARING COVER

1W1-15381-00-00

Unavailable

26

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

27

PLATE, BEARING COVER

1W1-17471-01-00

Unavailable

28

BOLT (661)

97013-06012-00

Unavailable

29

COLLAR (3V3)

90387-202A0-00

Unavailable

30

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

31

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

32

NUT (1L8)

90179-16226-00

Unavailable
