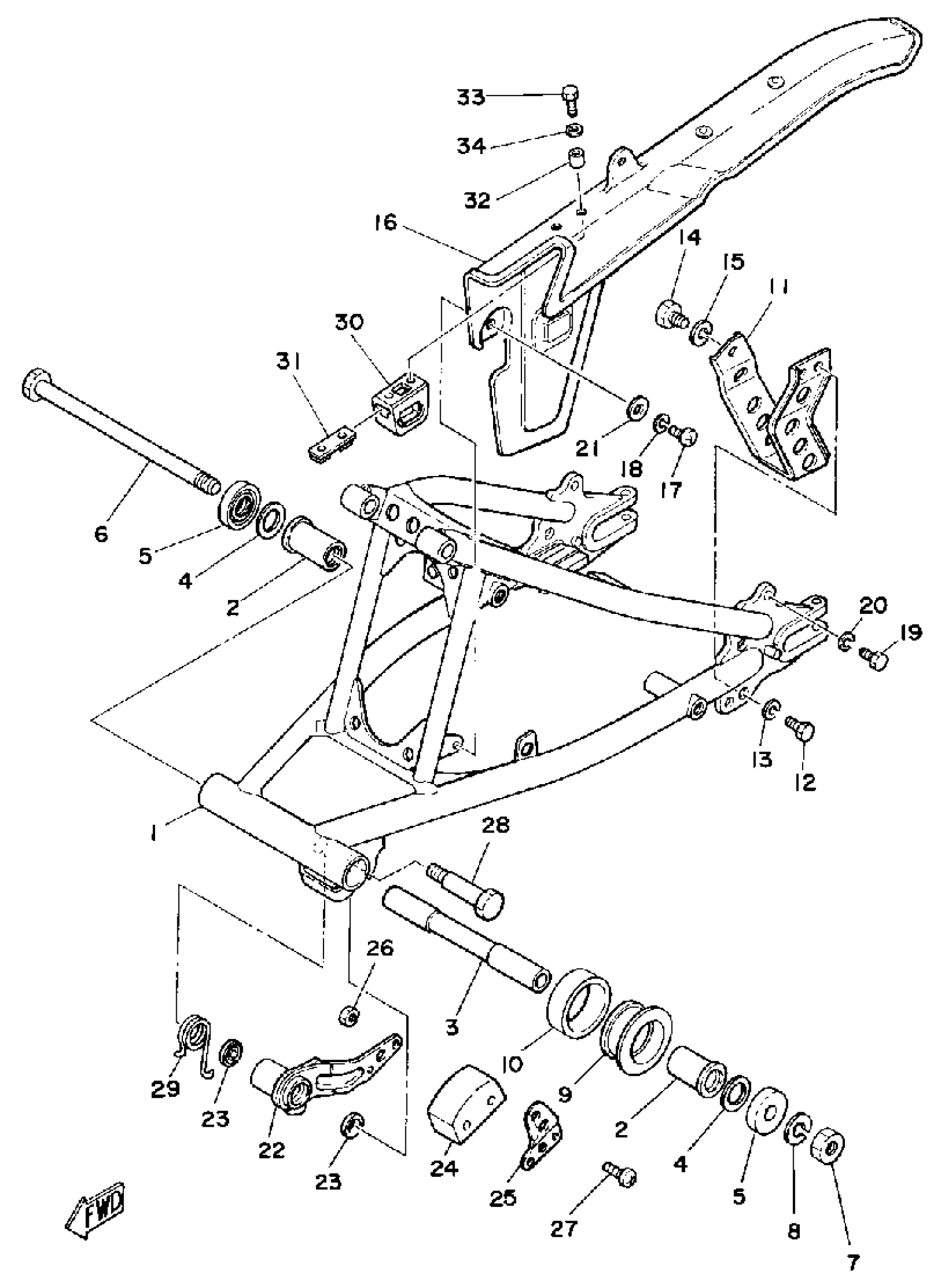

Yamaha DT125G (DT125G) 1980 REAR ARM Diagram

#

Description
Price

1

REAR ARM

(2A6-22110-01-33)

Unavailable

2

BUSHING (401-22123-00)

90386-18028-00

$26.99

3

BUSH 2

18G-22124-00-00

Unavailable

4

SHIM

401-22127-00-00

$7.99

5

COVER, THRUST 1

401-22128-01-00

$29.99

6

SHAFT, PIVOT

2N4-22141-00-00

$28.99

7

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

8

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

9

SEAL, GUARD

2A6-22151-00-00

$9.99

10

SEAL, GUARD 2

2A6-22152-00-00

$5.49

11

GUARD, CHAIN

2A6-22318-00-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BOLT(62E)

97013-08012-00

Unavailable

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

. CASE, CHAIN

2A6-22311-01-00

Unavailable

17

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

19

BOLT, HEXAGON

97013-05012-00

Unavailable

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

22

ARM, TENSIONER

2A6-22179-01-00

Unavailable

23

OIL SEAL (2K8)

93109-14021-00

Unavailable

24

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

25

GUIDE, CHAIN

1W1-22187-00-00

Unavailable

26

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

27

SCREW, PAN

98507-05035-00

Unavailable

28

BOLT (1J4)

90109-10483-00

Unavailable

29

SPRING, TORSION (1J4)

90508-35350-00

Unavailable

30

PROTECTOR, CHAIN

3J0-22147-00-00

Unavailable

31

STAY, CHAIN PROTECTOR

3J0-22131-00-00

Unavailable

32

COLLAR (3J0)

90387-05682-00

Unavailable

33

BOLT, HEXAGON

97313-05016-00

Unavailable

34

WASHER, PLAIN (646)

92990-05600-00

Unavailable
