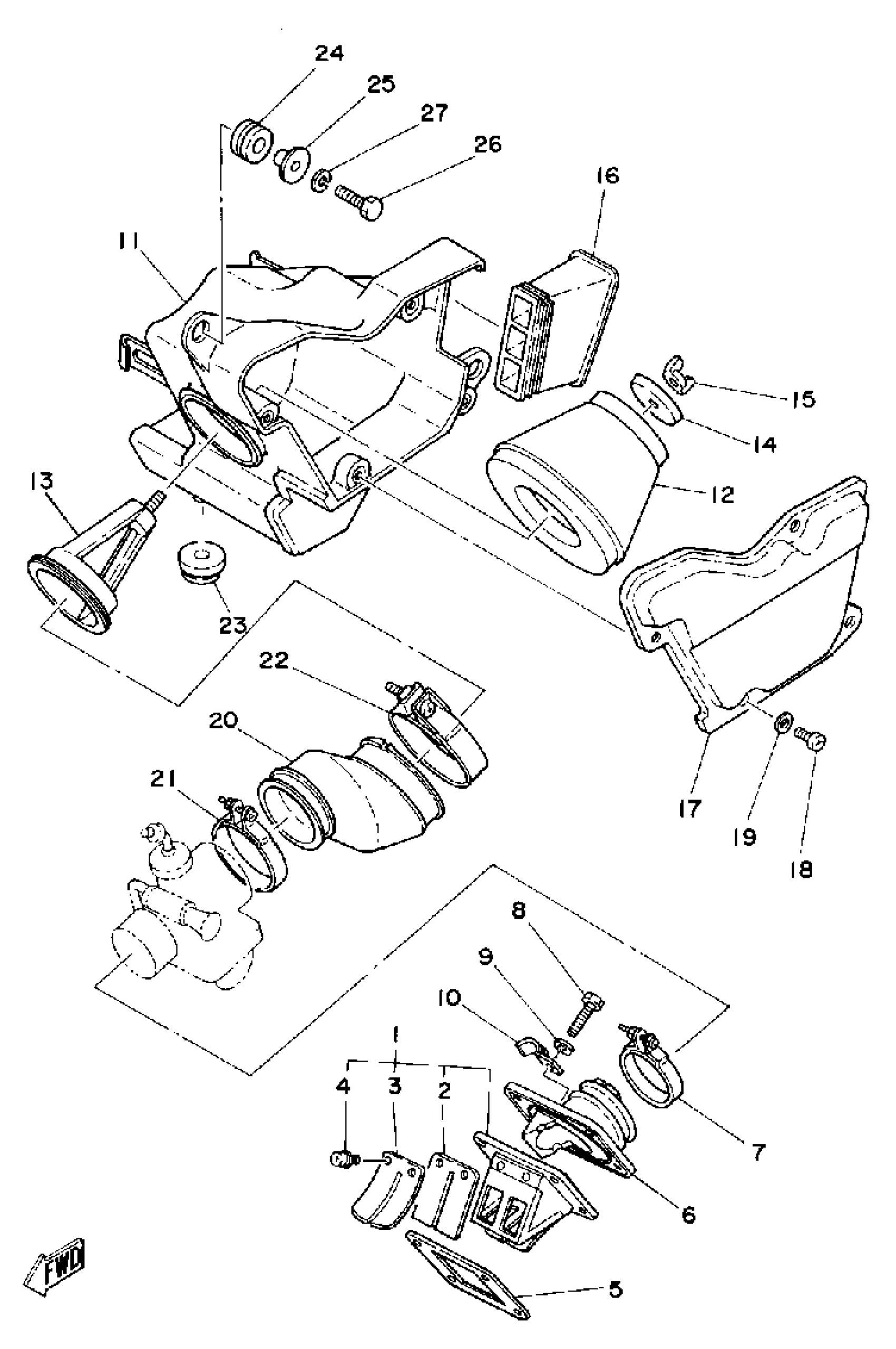

Yamaha DT125G (DT125G) 1980 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

(3J0-13610-00-00)

Unavailable

2

REED, VALVE

345-13613-70-00

$72.99

3

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

6

JOINT, CARBURETOR

401-13565-01-00

Unavailable

7

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

CLAMP 363154850100

90462-05005-00

Unavailable

11

CASE, AIR CLEANER 1

3J0-14411-01-00

Unavailable

12

ELEMENT, AIR CLEANER

3J0-14451-02-00

$6.99

13

UNAVAILABLE IN PRICE BOOK

(3J0-14473-00-00)

Unavailable

14

PLATE, ELEMENT FTNG

2X4-14468-00-00

Unavailable

15

NUT, WING (646)

90175-06008-00

$2.17

16

DUCT

3J0-14437-00-00

Unavailable

17

CAP, CLEANER CASE 1

3J0-14412-00-00

Unavailable

18

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

19

WASHER, PLAIN (646)

92990-05600-00

Unavailable

20

JOINT, AIR CLEANER 1

3J1-14453-00-00

Unavailable

21

CLAMP HOSE 278144550000

90460-49058-00

Unavailable

22

CLAMP, HOSE (90460-71017)

90460-71129-00

Unavailable

23

GROMMET (509)

90480-18171-00

Unavailable

24

GROMMET 839774310000

90480-14023-00

Unavailable

25

COLLAR 437216330000

90387-07391-00

Unavailable

26

BOLT, HEXAGON

97017-06025-00

$4.24

27

WASHER, SPRING

92995-06100-00

Unavailable
