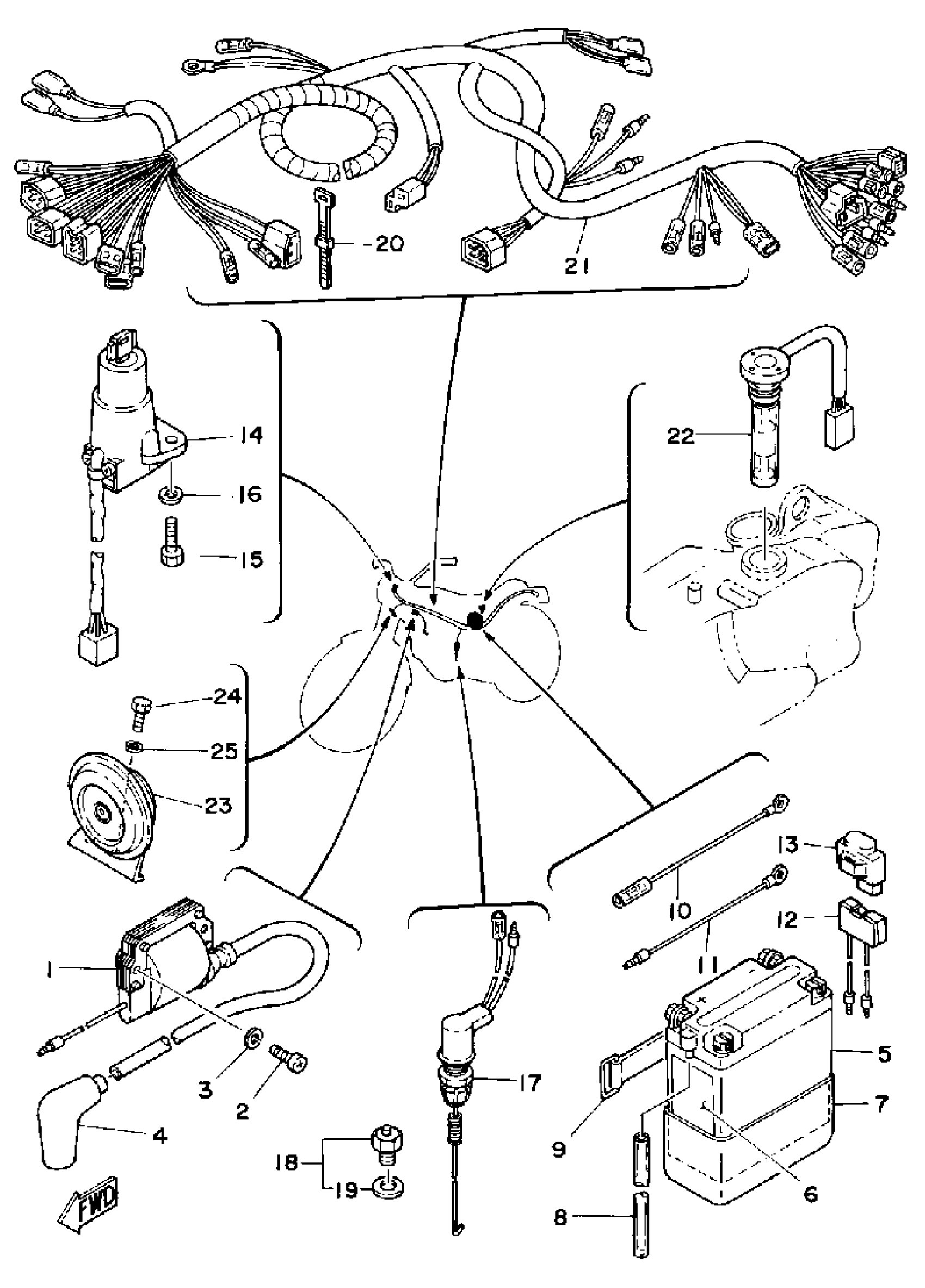

Yamaha DT125G (DT125G) 1980 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

355-82310-40-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

PLUG CAP ASSY

8DG-82370-00-00

$49.99

4

PLUG CAP ASSY

7KA-82370-00-00

$67.99

5

6N6-3B-1 YUASA BATTERY

6N6-3B1Y0-00-00

Unavailable

6

LABEL, BATTERY

40A-82141-G0-00

Unavailable

7

SEAT, BATTERY

(3J0-82122-00-00)

Unavailable

8

HOSE

(90445-08357-00)

Unavailable

9

BAND,BATTERY

7H3-82131-00-00

$17.49

10

WIRE, SUB-LEAD

J42-82318-00-00

Unavailable

11

CORD

1H2-83346-00-00

Unavailable

12

CIRCUIT BREAKER

3J0-82180-00-00

Unavailable

13

COVER, CIRCUIT BREAKER

3J0-82182-00-00

Unavailable

14

MAIN SWCH STRGLCK

5R2-82501-01-00

Unavailable

15

BOLT, HEXAGON

97017-06025-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

STOP SWITCH ASSY

3J0-82530-02-00

Unavailable

18

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

19

WASHER, PLATE

90201-12790-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

WIRE HARNESS ASSEMBLY

3J0-82590-50-00

Unavailable

22

OIL LEVEL GAUGE ASSY

5GP-85720-00-00

Unavailable

23

HORN

1N5-83371-20-00

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable
