Description

Price

1

CRANKCASE 1

(2A6-15111-02-00)

Unavailable

2

CRANKCASE 2

2A6-15121-01-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

PIN, DOWEL

99530-20020-00

Unavailable

5

DAMPER

90388-08003-00

$17.99

6

SPACER, ENGINE MOUNT

401-15317-00-00

$14.49

7

O-RING (P95)

93210-11073-00

$7.49

8

SCREW PAN HEAD

98580-06550-00

$8.49

9

SCREW, BIND (JH1)

98580-06560-00

Unavailable

10

SCREW PAN HEAD

98580-06570-00

$18.99

11

SCREW PAN HEAD

98580-06575-00

$12.49

12

BREATHER

5UG-15371-00-00

$40.99

13

HOSE (L1050)

90445-072G8-00

$29.99

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

HOLDER (R.H)

304-15128-00-00

Unavailable

17

SCREW, PAN

98507-08010-00

Unavailable

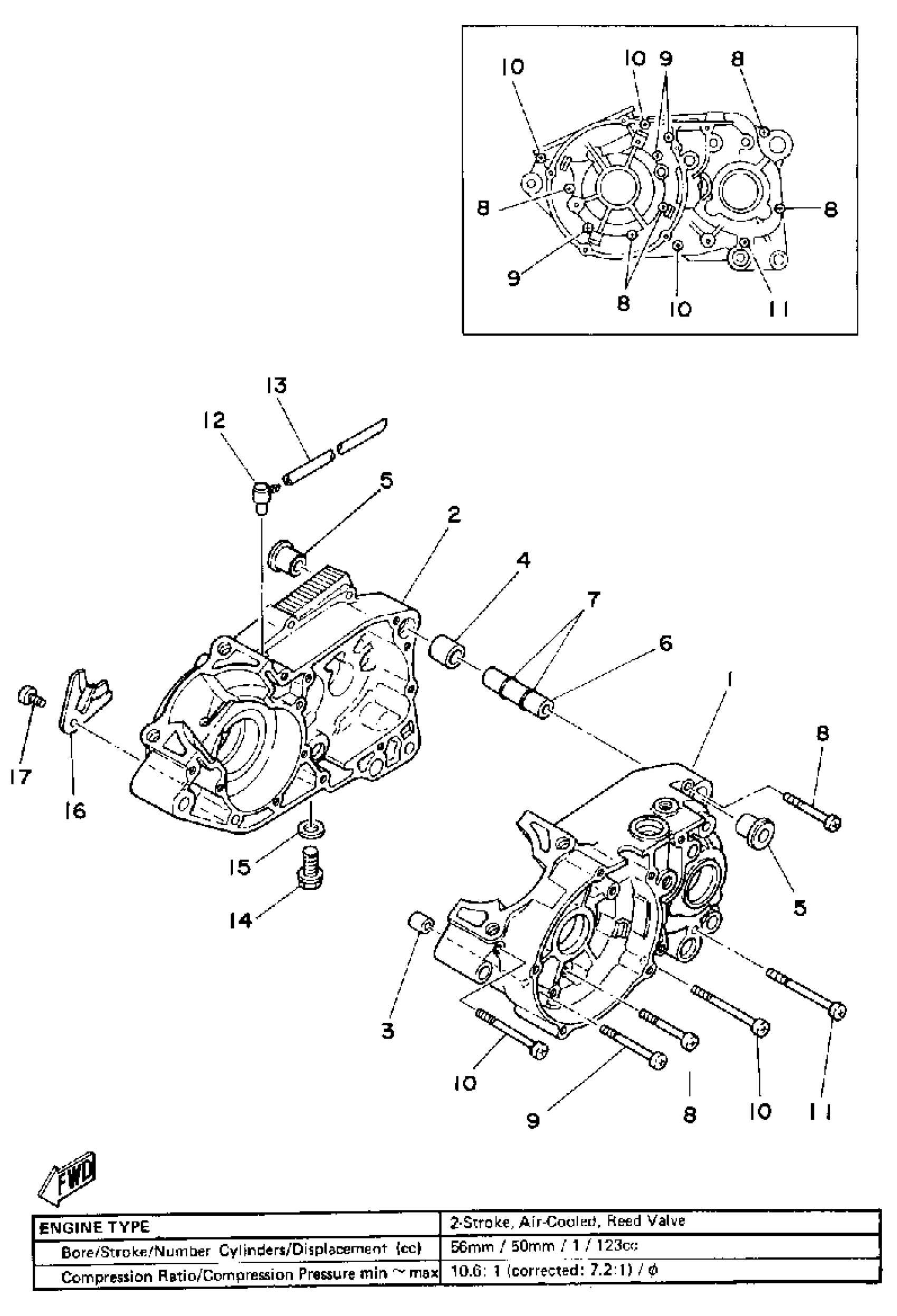

Yamaha DT125G (DT125G) 1980 CRANKCASE Diagram

CRANKCASE 1

CRANKCASE 2

PIN, DOWEL(3VD)

PIN, DOWEL

DAMPER

SPACER, ENGINE MOUNT

O-RING (P95)

SCREW PAN HEAD

SCREW, BIND (JH1)

SCREW PAN HEAD

SCREW PAN HEAD

BREATHER

HOSE (L1050)

PLUG STRAIGTSCREW 132153510000

GASKET (3JD1)

HOLDER (R.H)

SCREW, PAN
