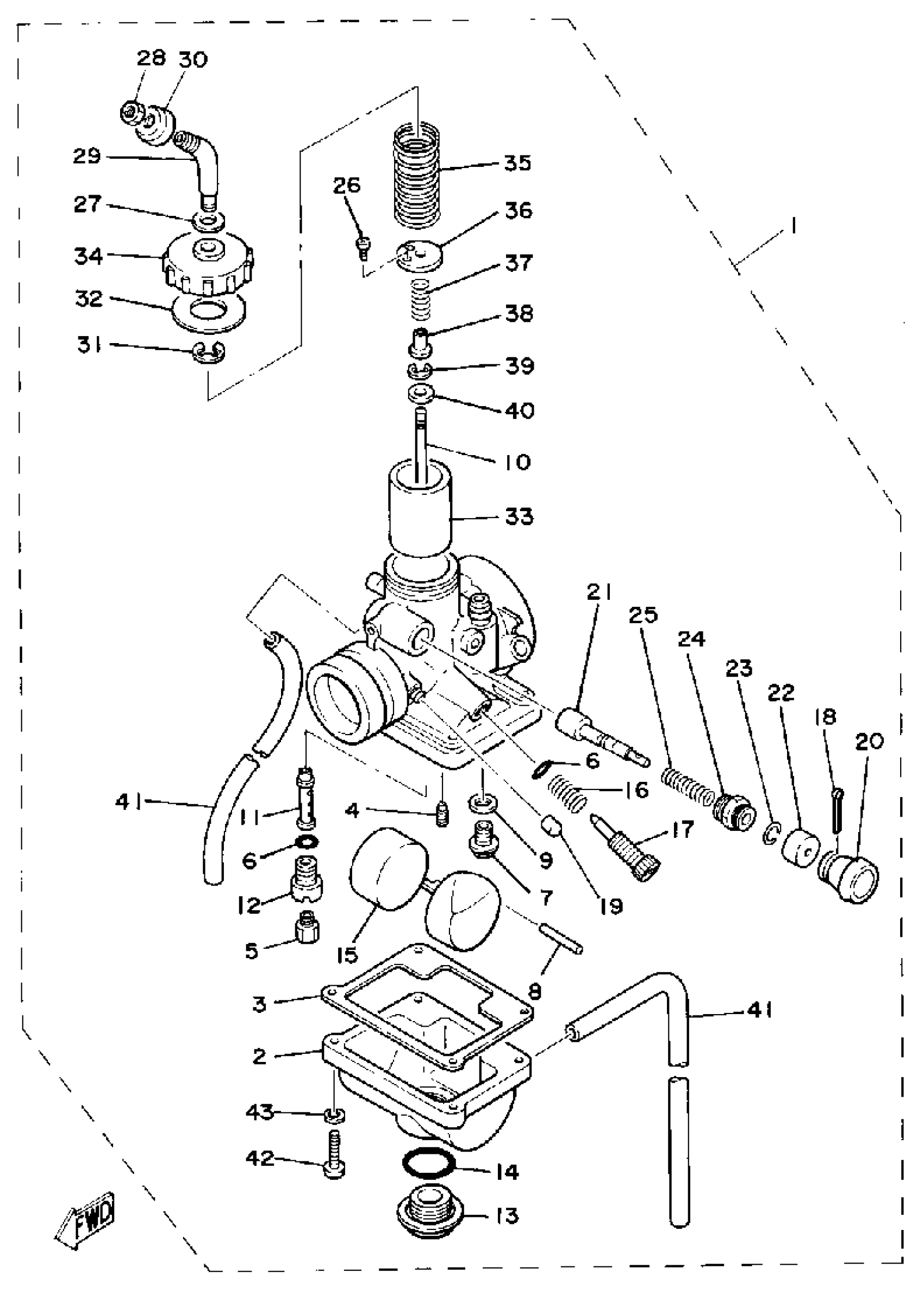

Yamaha DT125G (DT125G) 1980 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

3J0-14101-00-00

Unavailable

2

. BODY, FLOAT CHMBR 1

539-14181-04-00

Unavailable

3

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

4

JET, PILOT (# 20)

260-14142-20-A0

$11.99

5

. JET, MAIN #120

137-14143-24-00

Unavailable

6

O-RING

214-14147-00-00

$7.99

7

NEEDLE VALVE SET

31J-14107-20-00

$40.99

8

PIN, FLOAT

127-14186-00-00

$6.65

9

WASHER, VALVE SEAT

127-14195-00-00

$7.99

10

NEEDLE

(452-14116-11-00)

Unavailable

11

NOZZLE, MAIN

(3J0-14141-28-00)

Unavailable

12

HOLDER

2N4-14145-00-00

Unavailable

13

PLUG, SCREW

500-14115-00-00

$29.99

14

O-RING (541)

558-14147-00-00

$9.99

15

FLOAT

4NR-14185-00-00

$41.99

16

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

17

. SCREW, THROTTLE

493-14122-00-00

Unavailable

18

PIN, COTTER

91490-16020-00

Unavailable

19

CAP

895-14169-00-00

Unavailable

20

HOLDER

304-14261-00-00

Unavailable

21

. PLUNGER, STARTER

304-14171-00-00

Unavailable

22

. COVER, PLUNGER

3A3-14173-00-00

Unavailable

23

. CLIP, PLUNGER

152-14138-00-00

Unavailable

24

CAP, PLUNGER

152-14174-00-00

Unavailable

25

SPRING, PLUNGER

156-14135-00-00

Unavailable

26

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

27

GASKET

509-14198-00-00

Unavailable

28

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

29

CABLE ADJUST SCREW SET

10X-14106-00-00

Unavailable

30

CAP

3X3-14169-00-00

Unavailable

31

CLIP

363-14137-00-00

Unavailable

32

. GASKET

3A3-14126-00-00

Unavailable

33

VALVE, THROTTLE 1

(3A3-14112-25-00)

Unavailable

34

. TOP, MIXING CHAMBER

1T9-14158-00-00

Unavailable

35

SPRING, THROTTLE VALVE

3X3-14131-00-00

Unavailable

36

SEAT, SPRING

(3A3-14136-00-00)

Unavailable

37

. SPRING

2N6-14589-01-00

Unavailable

38

. WASHER

2N6-14227-01-00

Unavailable

39

CLIP

3FA-14137-00-00

Unavailable

40

. RING

2N6-14918-01-00

Unavailable

41

PIPE

23F-14197-00-00

Unavailable

42

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

43

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable
