Description

Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

COVER BALL RACE

10V-23416-01-00

Unavailable

9

NUT

90179-25004-00

$24.99

10

CROWN, HANDLE

2N4-23435-00-98

Unavailable

11

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

12

CROWN, HANDLE

2N4-23435-00-98

Unavailable

13

BOLT, FLANGE

95817-10060-00

$7.49

14

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

15

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

16

BOLT, FLANGE

95817-08035-00

Unavailable

17

BOLT, FLANGE

95817-08055-00

Unavailable

18

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

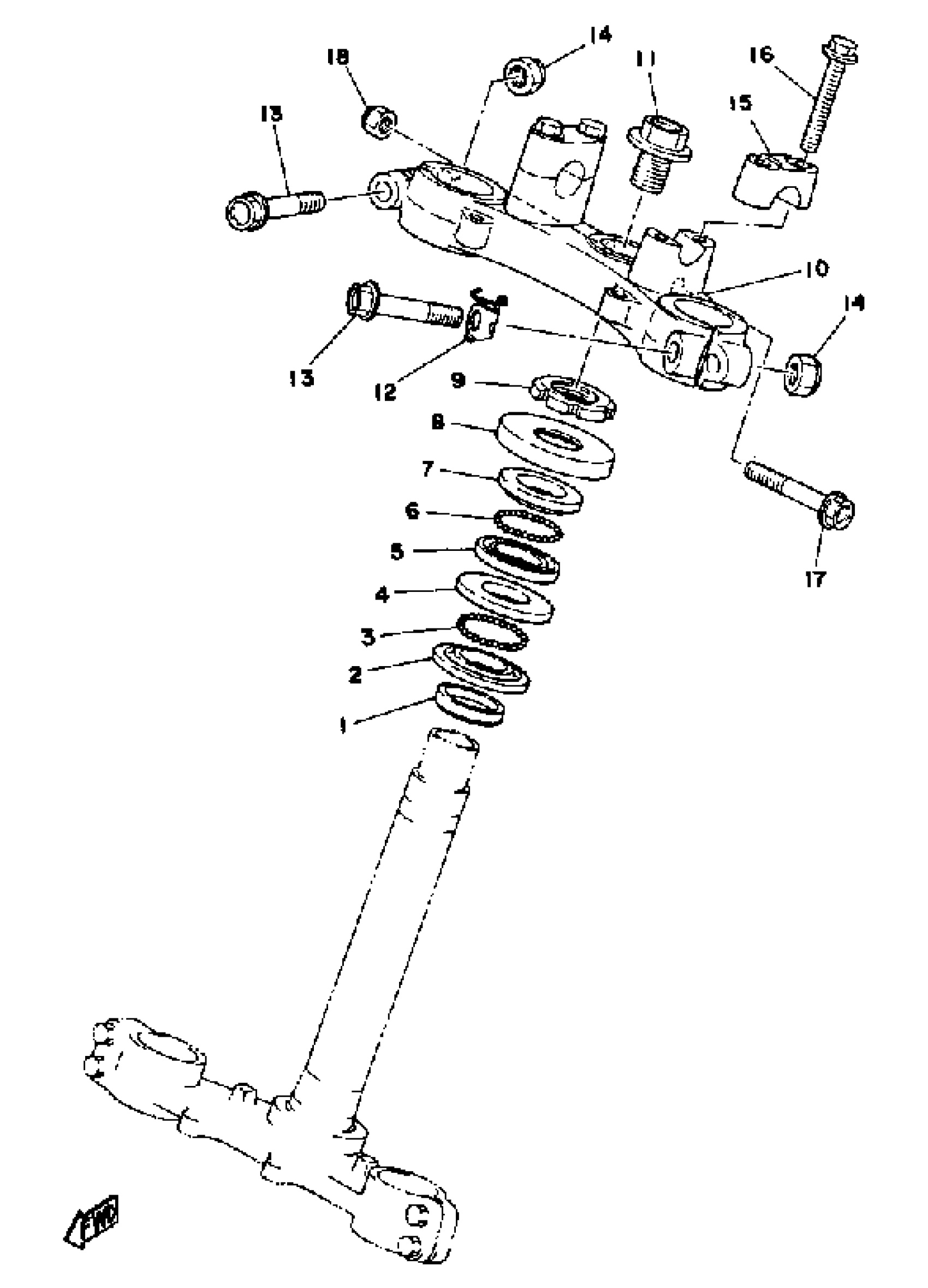

Yamaha DT125F (DT125F) 1979 STEERING Diagram

SEAL, DUST

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER BALL RACE

NUT

CROWN, HANDLE

BOLT, WASHER BASED HEAD (10V)

CROWN, HANDLE

BOLT, FLANGE

NUT, SELFLOCKING (533 FRAME)

HOLDER, HANDLE UPPER

BOLT, FLANGE

BOLT, FLANGE

NUT, SELF-LOCKING (3Y2)
