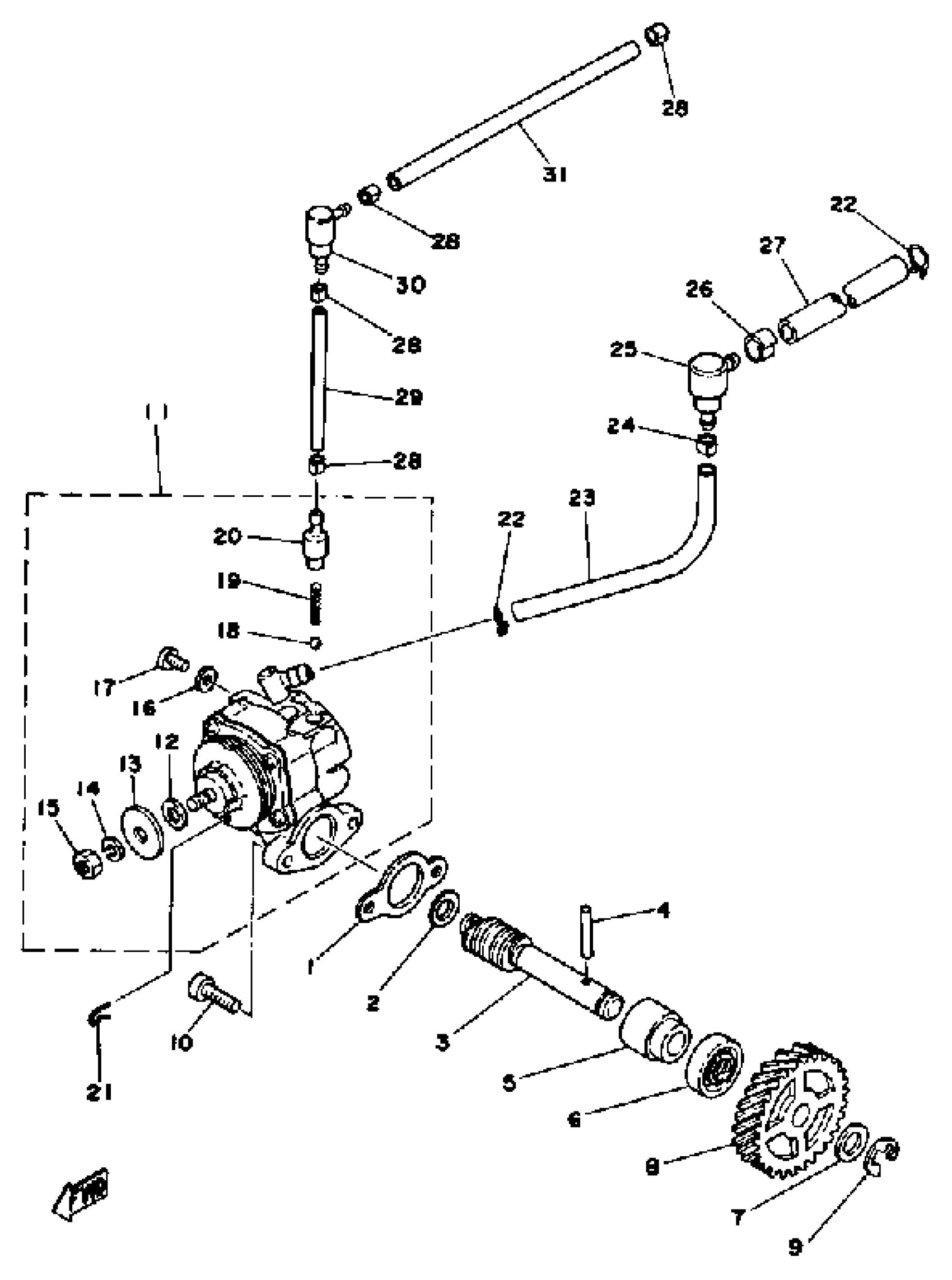

Yamaha DT125F (DT125F) 1979 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

3

SHAFT, WORM

(522-13175-01-00)

Unavailable

4

PIN,DOWEL (137)

93603-22028-00

$3.76

5

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

6

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

7

WASHER, PLATE(52H)

90201-105J4-00

$9.49

8

GEAR, DRIVE

2A6-13178-00-00

Unavailable

9

CIRCLIP(2R6)

99001-08600-00

$8.49

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

OIL PUMP ASSEMBLY

2N0-13101-00-00

Unavailable

12

SHIM,PLUNGER

137-13137-00-03

$5.49

12

SHIM,PLUNGER

137-13137-00-05

$6.99

12

SHIM,PLUNGER

137-13137-00-10

$7.99

13

PLATE, ADJUSTING

137-13138-01-00

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

15

NUT, HEXAGON (663)

95380-05600-00

Unavailable

16

GASKET 137131870000

90430-04004-00

Unavailable

17

SCREW, BIND

98980-04008-00

Unavailable

18

BALL

93505-32002-00

Unavailable

19

SPRING (278-13169-00)

90501-02018-00

Unavailable

20

NOZZLE

402-13552-00-00

Unavailable

21

CLIP (PUMP ADJUSTING PULLEY)

363-13133-01-00

Unavailable

22

CLIP 101235600

90467-08003-00

Unavailable

23

HOSE (L200)

90445-07176-00

Unavailable

24

CLIP (2A6)

90468-02025-00

Unavailable

25

CONNECTOR, SCTN PPE

2A6-13115-01-00

Unavailable

26

CLIP (2A6)

90468-02078-00

Unavailable

27

HOSE (L420)

90445-092K1-00

Unavailable

28

CLIP (214-13164-00)

90468-02033-00

Unavailable

29

HOSE (L200)

90445-05N13-00

Unavailable

30

CONCT, DELIVERY PPE

2A6-13164-01-00

Unavailable

31

HOSE (L200)

90445-05N13-00

Unavailable
