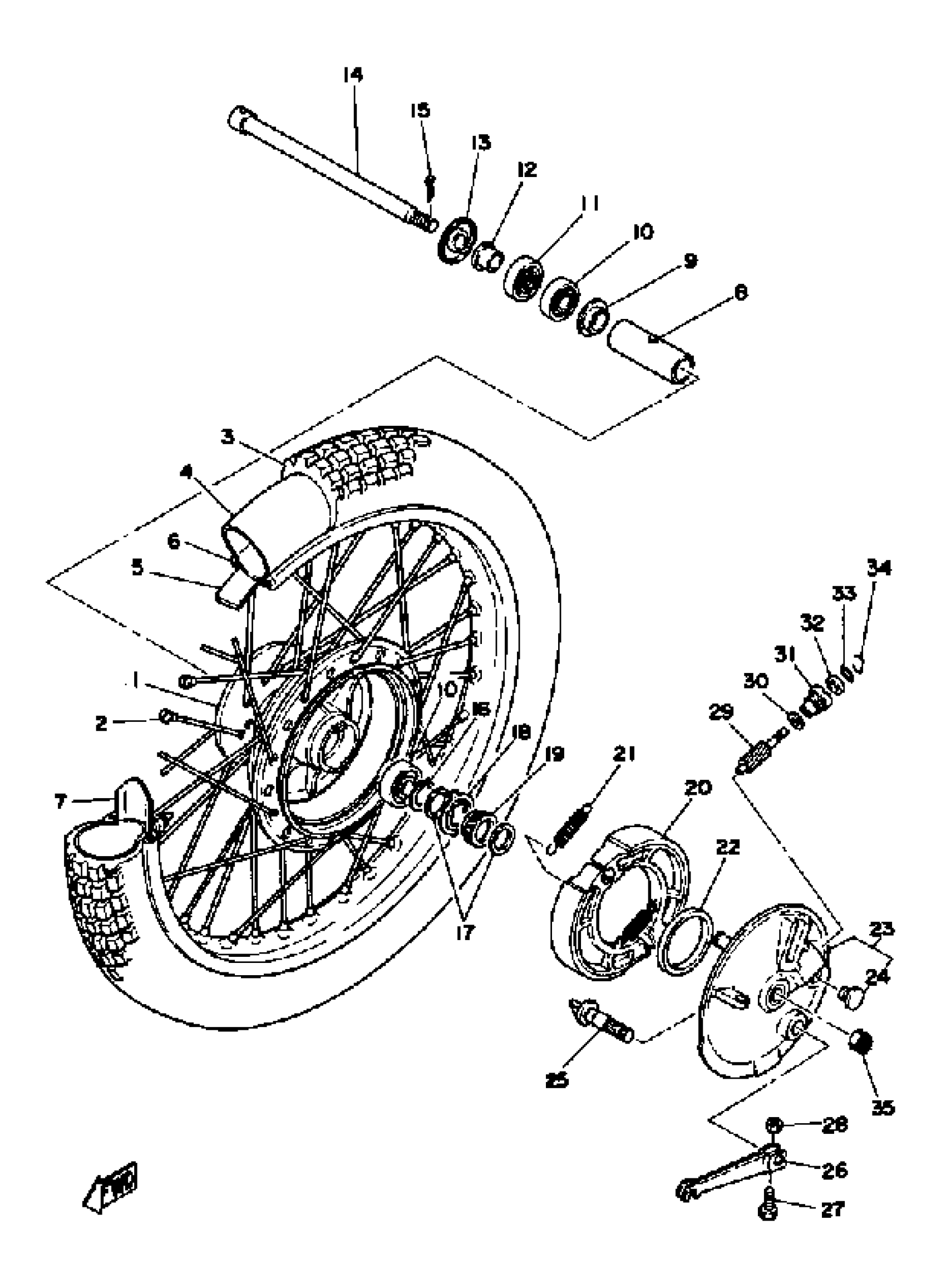

Yamaha DT125F (DT125F) 1979 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

2A6-25111-00-98

Unavailable

2

SPOKE SET

2A6-25104-01-00

Unavailable

3

TIRE (MCS 2.75-21 4PR TW27)

94127-212X0-00

Unavailable

4

TUBE, FRONT (2A6)

94227-21123-00

$47.99

5

BAND, RIM (2A6)

94330-21084-00

$16.99

6

RIM

94416-21006-00

Unavailable

7

SPACER, BEAD

1T1-25194-00-00

Unavailable

8

SPACER

90560-12138-00

Unavailable

9

FLANGE, SPACER

109-25315-00-00

$7.99

10

BEARING

93306-30102-00

$39.99

11

OIL SEAL (18X37X8-109)

93102-18008-00

$25.99

12

COLLAR (462)

90387-12265-00

$14.99

13

COVER, HUB DUST

2K5-25118-00-00

$8.99

14

SHAFT, WHEEL

353-25381-00-00

$25.99

15

PIN, COTTER

91490-20025-00

$1.99

16

CIRCLIP(1AR)

99009-20400-00

Unavailable

17

WASHER, PLATE 1832514700

90201-20269-00

Unavailable

18

CLUTCH, METER

183-25149-00-00

Unavailable

19

GEAR, DRIVE

37A-25135-00-00

Unavailable

20

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

21

SPRING (5T9)

90506-17328-00

Unavailable

22

SEAL,OIL

93105-47007-00

Unavailable

23

BRAKE SHOE PLT ASSEMBLY (2N4-25120-00-98)

2N4-25016-01-98

Unavailable

24

GROMMET (397)

90480-10068-00

Unavailable

25

CAMSHAFT

2RH-25351-00-00

Unavailable

26

LEVER, CAMSHAFT 1

5H0-25155-00-00

Unavailable

27

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

28

NUT, HEXAGON

95380-06600-00

Unavailable

29

GEAR, METER

37A-25138-00-00

Unavailable

30

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

31

BUSHING

109-25136-00-00

Unavailable

32

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

33

O-RING (26H)

93210-14579-00

Unavailable

34

RING, STOP

102-25137-00-00

Unavailable

35

NUT 3532518200

90171-10004-00

Unavailable
