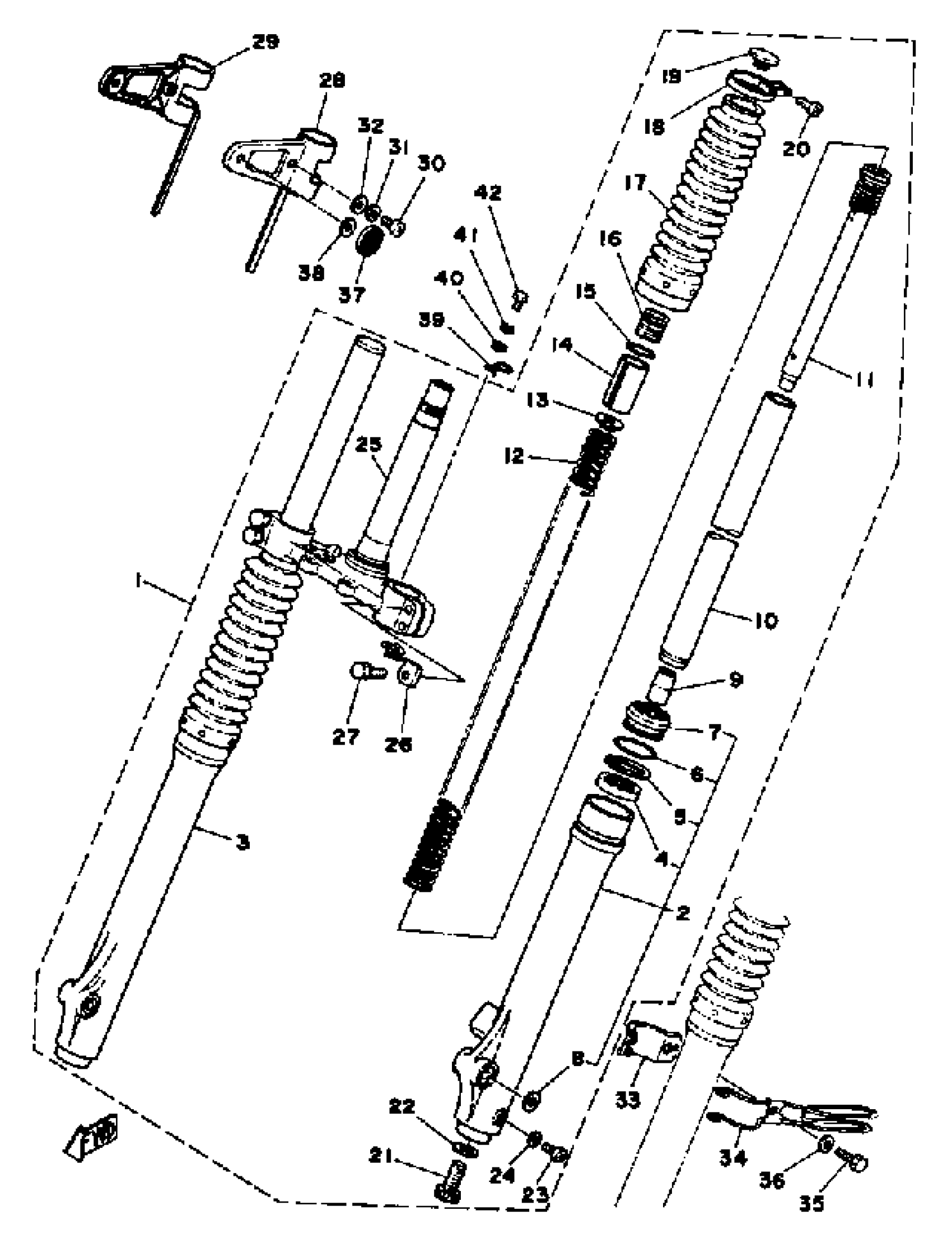

Yamaha DT125F (DT125F) 1979 FRONT FORK Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(2N4-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(2K5-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(2K5-23136-00-00)

Unavailable

4

OIL SEAL

2K5-23145-00-00

Unavailable

5

.. WASHER, OIL SEAL

2K5-23146-00-00

Unavailable

6

RING, SNAP

15E-23153-00-00

Unavailable

7

DUST SEAL

3Y6-23144-00-00

Unavailable

8

WASHER, FELT

(2K5-23165-00-00)

Unavailable

9

SPINDLE

2K5-23173-00-00

$35.99

10

. INNER TUBE 1

2N4-23110-00-00

Unavailable

11

CYLINDER, FRTFRK

(2K5-23170-00-00)

Unavailable

12

SPRING, FRONT FORK

(2N4-23141-00-00)

Unavailable

13

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

14

SPACER

(256-23118-60-00)

Unavailable

15

PACKING(O-RING)

146-23114-00-00

$18.49

16

BOLT, CAP

1X0-23111-00-00

Unavailable

17

. BOOT, FRONT FORK

2K5-23191-M0-00

Unavailable

18

BAND, BOOT

2K5-23192-00-00

Unavailable

19

CAP

1X0-23168-00-00

Unavailable

20

SCREW

509-23194-L0-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

22

GASKET

509-23158-L0-00

Unavailable

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

23

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

24

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

25

UNDER BRACKET

(2N4-23340-00-33)

Unavailable

26

HOLDER, CABLE

(2N4-23317-00-00)

Unavailable

27

. BOLT, HEXAGON SOCKET HEAD

5X6-23181-L0-00

Unavailable

28

STAY, HEADLIGHT 1

2N4-84118-00-00

Unavailable

29

STAY, HEADLIGHT 2

2N4-84119-00-00

Unavailable

30

SCREW PAN HEAD

98580-06020-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

33

HOLDER, CABLE 2

2A6-23319-00-00

Unavailable

34

HOLDER, CABLE 1

2A6-23318-00-00

Unavailable

35

BOLT, HEXAGON

97017-06025-00

Unavailable

36

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

37

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

38

WASHER, PLATE(3AJ)

90202-05191-00

Unavailable

39

CLAMP

(2A6-83595-00-00)

Unavailable

40

WASHER, PLAIN (646)

92990-06600-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

BOLT (661)

97013-06012-00

Unavailable
