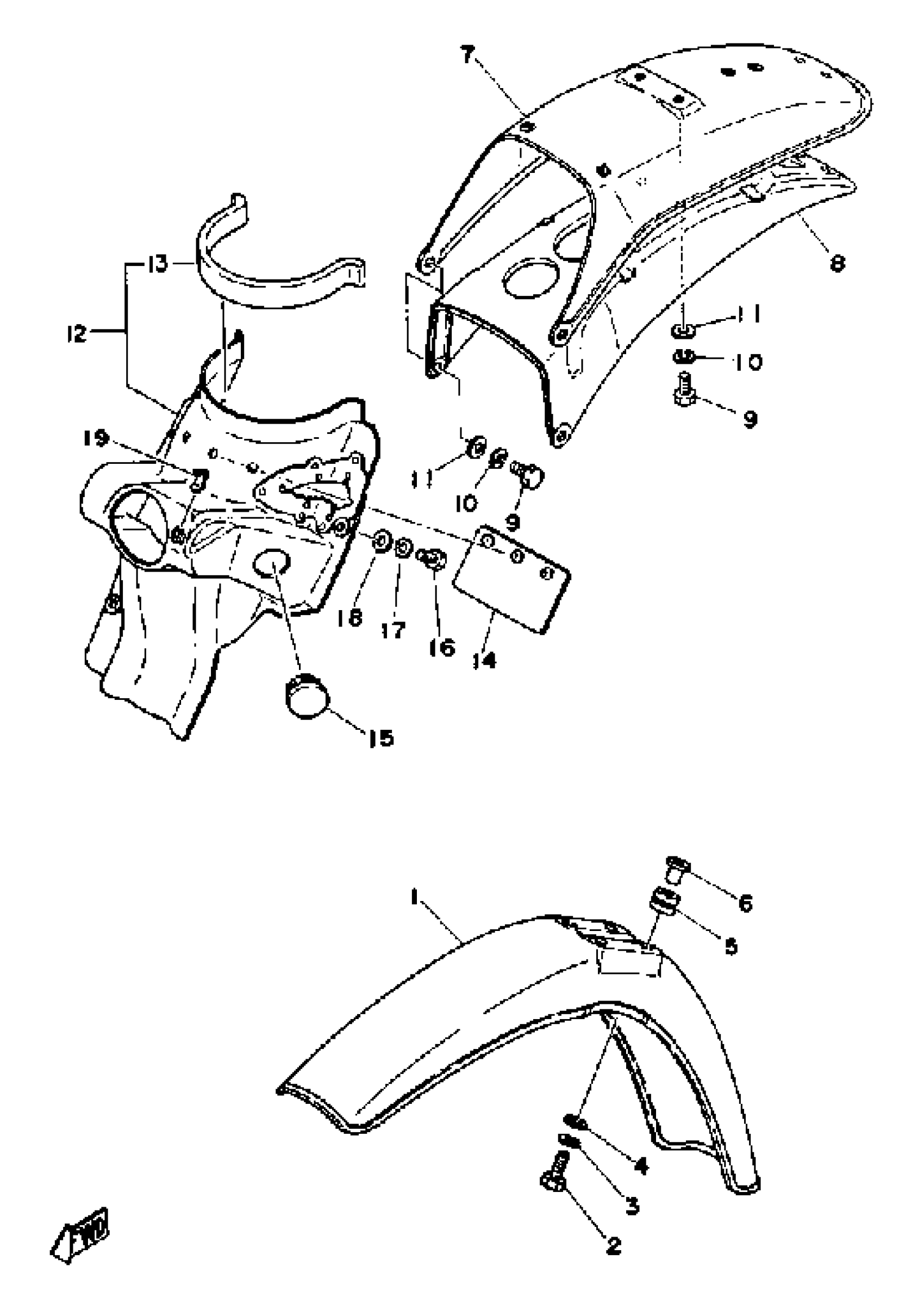

Yamaha DT125F (DT125F) 1979 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(2N4-21511-01-00)

Unavailable

1

FENDER, FRONT

(2N4-21511-10-00)

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

GROMMET

90480-14198-00

$9.49

6

COLLAR

90387-06158-00

$8.49

7

FENDER, REAR

2A8-21611-80-00

Unavailable

7

FENDER, REAR

(2N4-21611-00-00)

Unavailable

7

FENDER, REAR

(2N4-21611-10-00)

Unavailable

8

BRACKET,FENDER

4J3-21617-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

GUARD, MUD

(2A6-21620-01-00)

Unavailable

13

DAMPER

2A6-21639-00-00

Unavailable

14

FLAP

1M1-21621-00-00

Unavailable

15

GROMMET

(90480-01230-00)

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE

90201-06380-00

$0.60

19

CLAMP, WIRE

(2A6-21637-00-00)

Unavailable
