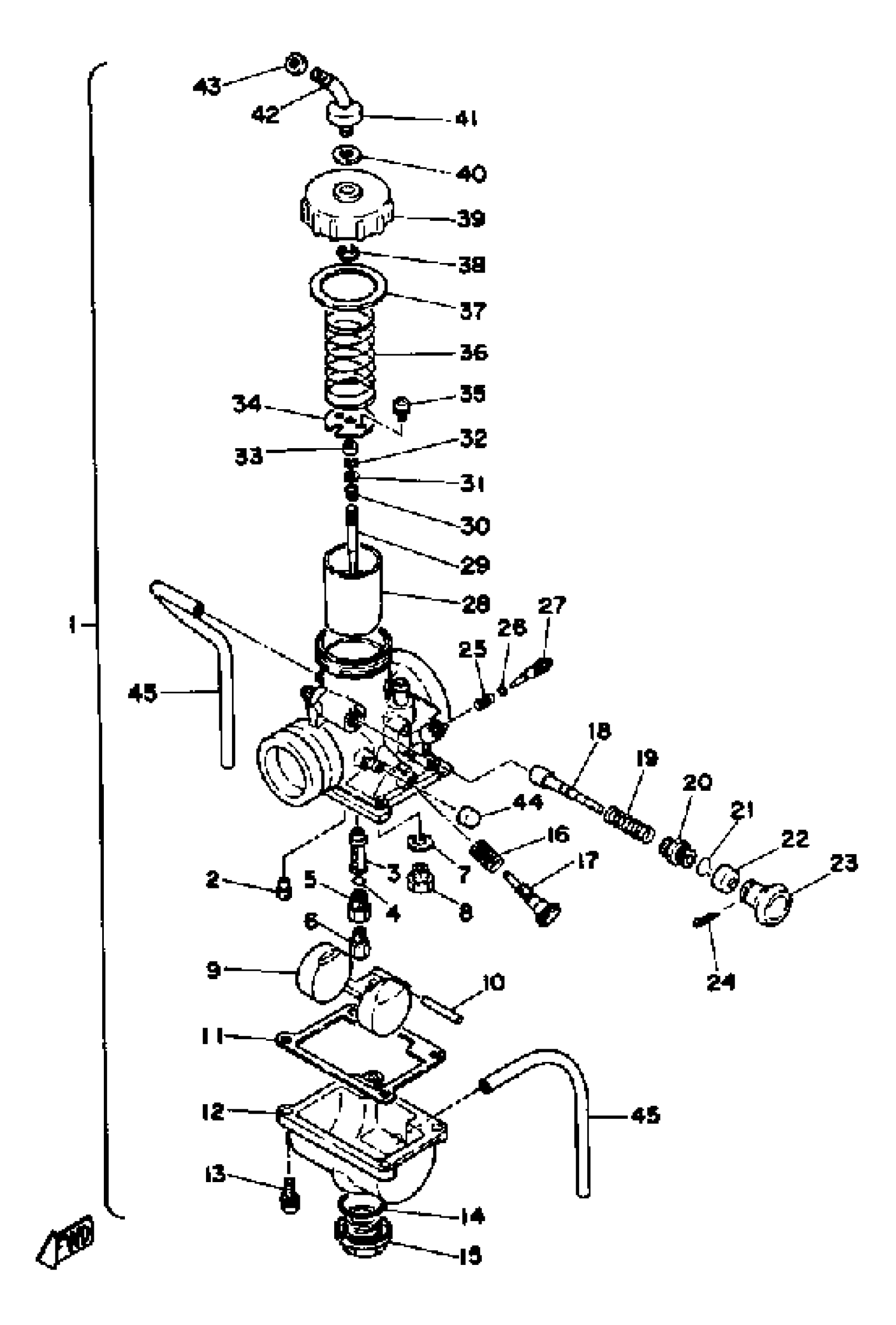

Yamaha DT125F (DT125F) 1979 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(2N4-14101-00-00)

Unavailable

2

JET, PILOT (# 22.5)

260-14142-22-A0

$9.99

3

. NOZZLE, MAIN (N-4)

2F5-14141-24-00

Unavailable

4

O-RING

214-14147-00-00

$7.99

5

HOLDER

2N4-14145-00-00

Unavailable

6

JET, MAIN #125

137-14143-25-A0

Unavailable

6

JET, MAIN #130

137-14143-26-A0

$7.99

7

WASHER, VALVE SEAT

214-14195-00-00

$7.99

8

NEEDLE VALVE SET

23L-14107-25-00

$42.99

9

FLOAT

314-14185-00-00

$66.99

10

PIN, FLOAT

127-14186-00-00

$6.65

11

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

12

. BODY, FLOAT CHMBR 1

539-14181-04-00

Unavailable

13

SCREW, PN/HD.W/WSHR

(97602-04116-00)

Unavailable

14

O-RING (541)

558-14147-00-00

$9.99

15

PLUG, SCREW

500-14115-00-00

Unavailable

16

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

17

. SCREW, THROTTLE

493-14122-00-00

Unavailable

18

. PLUNGER, STARTER

304-14171-00-00

Unavailable

19

SPRING, PLUNGER

156-14135-00-00

Unavailable

20

CAP, PLUNGER

152-14174-00-00

Unavailable

21

CLIP, PLUNGER

353-14138-00-00

Unavailable

22

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

23

HOLDER

304-14261-00-00

Unavailable

24

PIN, COTTER

91490-16020-00

Unavailable

25

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

26

O-RING (493-CARB.)

354-14147-00-00

Unavailable

27

AIR SCREW SET

10W-14104-00-00

Unavailable

28

VALVE, THROTTLE 1

(2N4-14112-20-00)

Unavailable

29

NEEDLE

(452-14116-08-00)

Unavailable

30

. SPRING, THRTL VALVE

2H0-14131-00-00

Unavailable

31

. WASHER, NEEDLE

2H0-14235-00-00

Unavailable

32

CLIP

363-14137-00-00

Unavailable

33

. RING

2H0-14194-00-00

Unavailable

34

SEAT, SPRING

(2N4-14936-00-00)

Unavailable

35

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

36

SPRING, THROTTLE VALVE

2N4-14131-00-00

Unavailable

37

GASKET

2A6-14126-00-00

Unavailable

38

CLIP

3FA-14137-00-00

Unavailable

39

. TOP, MIXING CHAMBER

2A6-14158-00-00

Unavailable

40

GASKET

509-14198-00-00

Unavailable

41

CAP

3X3-14169-00-00

Unavailable

42

CABLE ADJUST SCREW SET

10X-14106-00-00

Unavailable

43

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

44

CAP

895-14169-00-00

Unavailable

45

PIPE

23F-14197-00-00

Unavailable
