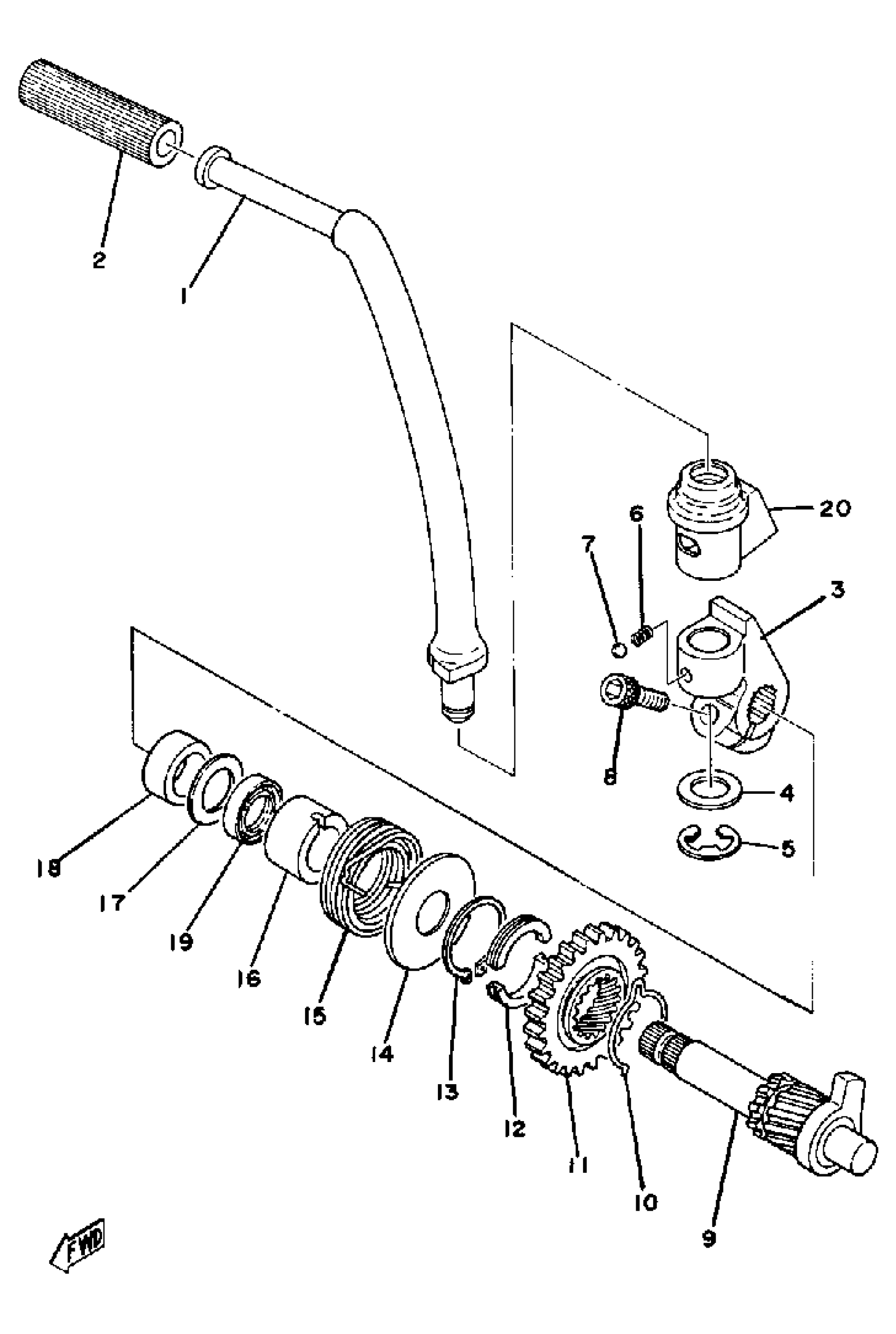

Yamaha DT125E (DT125E) 1978 STARTER Diagram

KICK CRANK ASSY

2A6-15620-02-00

Unavailable

COVER, KICK LEVER

156-15618-01-00

$7.99

BOSS, KICK CRANK

1W1-15621-01-00

Unavailable

WASHER, PLATE (525)

90201-12541-00

$7.49

CIRCLIP (137)

93430-08007-00

$8.49

SPRING, COMPRESSION (1W1)

90501-10459-00

$7.49

BALL

93503-16003-00

$2.72

BOLT, SOCKET

91317-08025-00

$8.49

KICK AXLE ASSEMBLY

2A6-15660-01-00

Unavailable

CLIP 315156870000

90468-26048-00

$8.49

GEAR, KICK

1W1-15641-00-00

Unavailable

HOLDER, KICK GEAR

248-15654-00-00

$8.99

CIRCLIP(4A6)

99009-30400-00

$8.49

COVER, SPRING

401-15676-00-00

$7.99

SPRING, TORSION (1W1)

90508-26346-00

Unavailable

SPACER, KICK AXLE SPRING

1W1-15666-00-00

Unavailable

WASHER PLATE 168217580000

90201-18262-00

Unavailable

SPACER

90560-17032-00

Unavailable

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

COVER, KICK CRANK BOSS

1W1-15618-01-00

Unavailable
