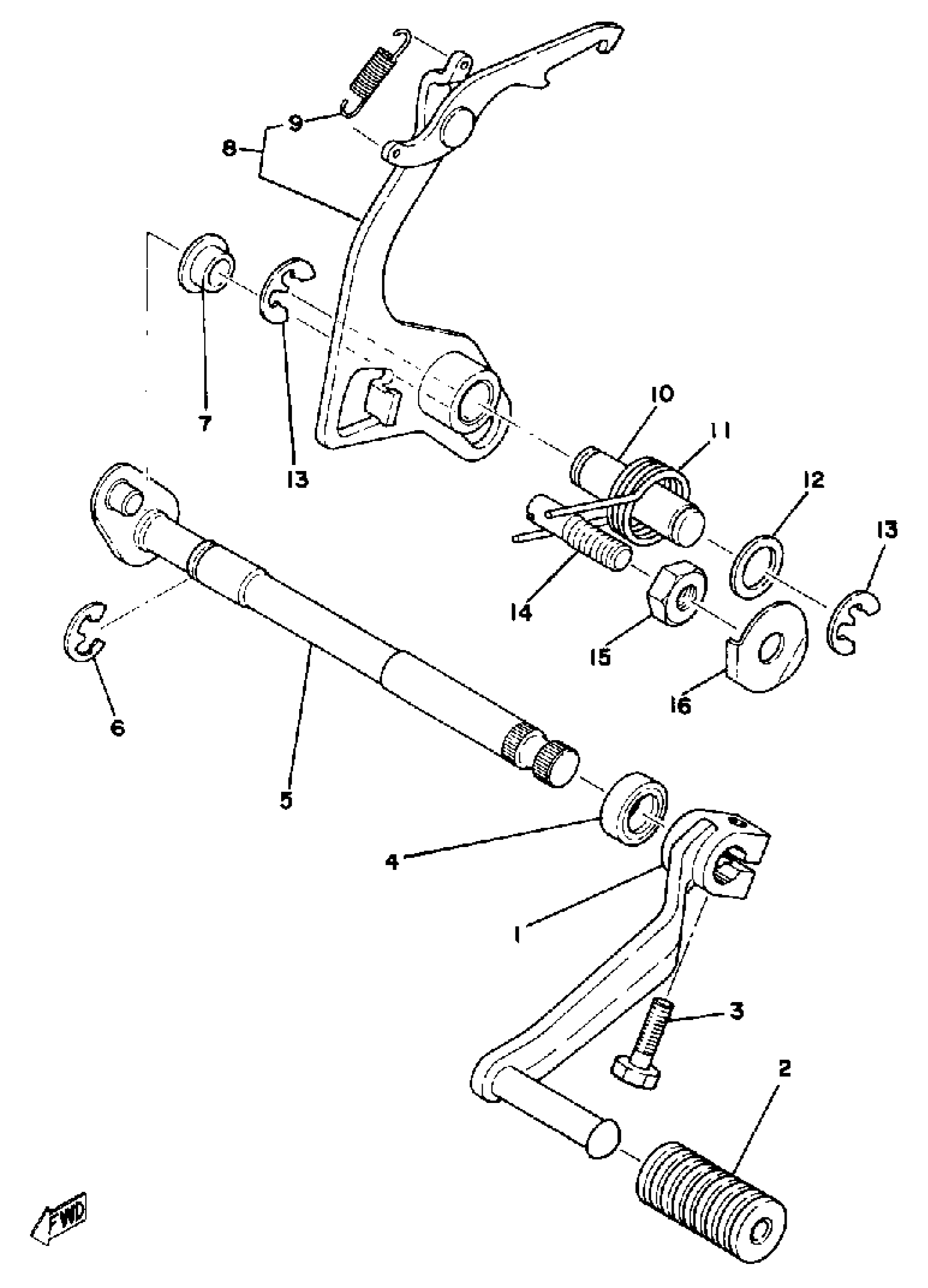

Yamaha DT125E (DT125E) 1978 SHIFT SHAFT PEDAL Diagram

SHIFT PEDAL ASSY

2A6-18110-00-00

Unavailable

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

BOLT, HEXAGON

97017-06020-00

$4.06

OIL SEAL

93101-12173-00

$13.49

CHANGE SHAFT1W101 (1W1-18101-01)

99999-01086-00

Unavailable

CIRCLIP

99006-10600-00

$9.49

ROLLER, CHANGE LEVER

401-18178-00-00

$19.99

SHIFT LEVER ASSY

4F2-18120-00-00

Unavailable

SPRING, TENSION (1W1)

90506-08155-00

$10.49

SHAFT, CHANGE STOPPER SPRING

1W1-18197-01-00

Unavailable

SPRING, TORSION (1W1)

90508-32349-00

$10.49

WASHER (692)

90201-12M34-00

Unavailable

CIRCLIP

99006-10600-00

$9.49

SCREW (1W1)

90149-08111-00

Unavailable

NUT (583)

90170-08193-00

$4.29

WASHER LOCK 248181390000

90215-08014-00

Unavailable
