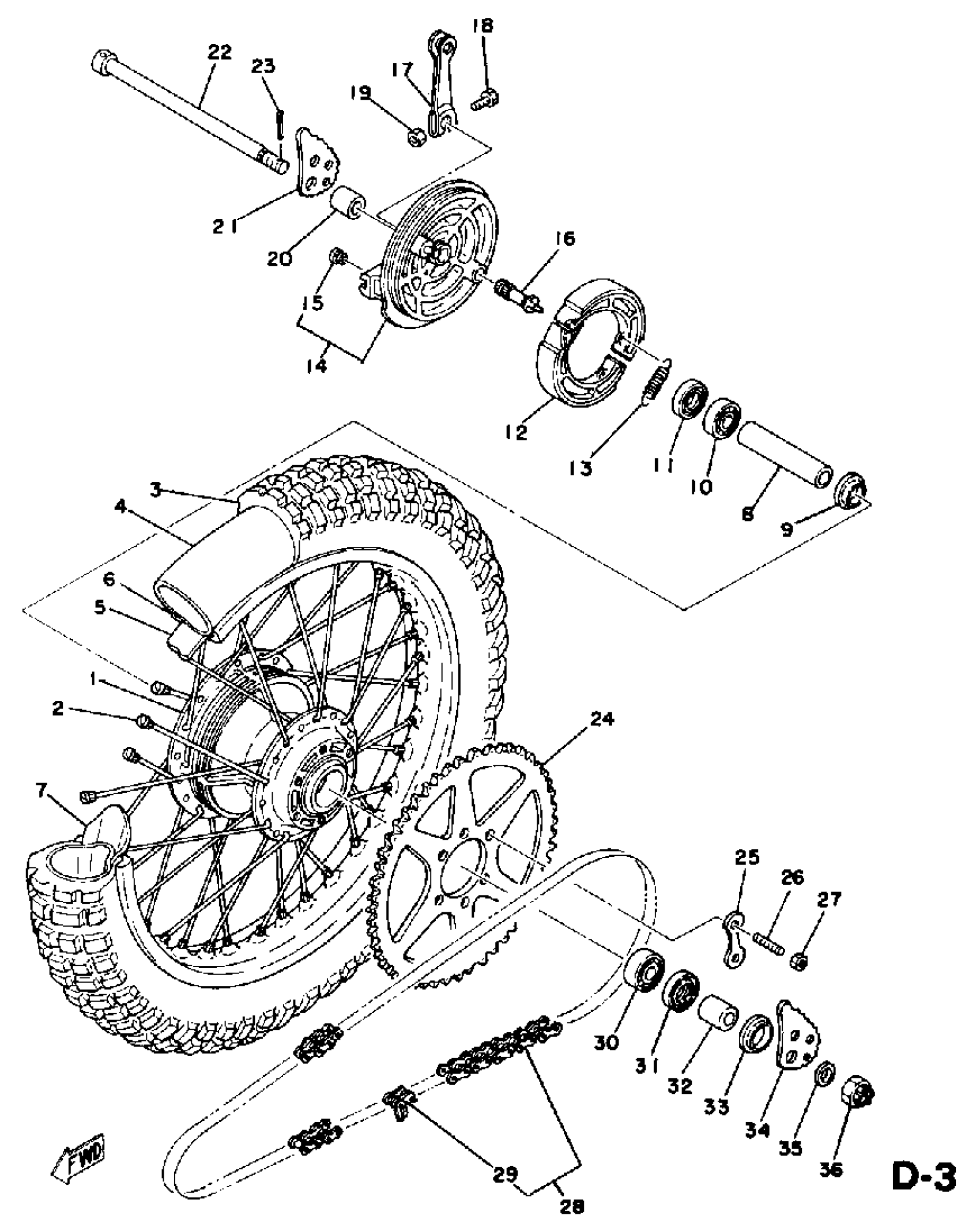

Yamaha DT125E (DT125E) 1978 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

1W1-25311-00-98

Unavailable

2

REAR SPOKE SET

401-25304-20-00

Unavailable

3

BS 350X18 TW5

(94135-18378-00)

Unavailable

4

TUBE (5H5)

94227-18195-00

$35.99

5

BAND, RIM (2J4)

94340-18086-00

$17.99

6

RIM (1.85-18)

94418-18007-00

Unavailable

7

SPACER, BEAD

1T2-25394-00-00

Unavailable

8

SPACER

90560-15313-00

$46.99

9

FLANGE, SPACER

146-25115-00-00

$6.99

10

BEARING(3DL)

93306-20226-00

$38.99

11

OIL SEAL (22X35X5)

93104-22018-00

$11.49

12

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

13

SPRING (5T9)

90506-17328-00

Unavailable

14

BRAKE SHOE PLATE ASSEMBLY (2A6-25026-00-98)BRAKE SHOE PLAT

99999-02024-00

Unavailable

15

GROMMET (397)

90480-10068-00

$8.49

16

CAMSHAFT

2RH-25351-00-00

Unavailable

17

LEVER, CAM SHAFT

1E2-25155-00-00

Unavailable

18

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

COLLAR

90387-15524-00

Unavailable

21

PULLER, CHAIN (R.H)

1W2-25389-01-00

Unavailable

22

AXLE, WHEEL

5X3-25381-00-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable

24

SPROCKET, DRIVEN 49T

18L-25449-20-00

Unavailable

25

WASHER, SPECIAL.

1G8-25412-00-00

Unavailable

26

BOLT, STUD (537 HUB)

90116-10221-00

Unavailable

27

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

28

CHAIN

9Y582-51117-00

Unavailable

29

JOINT, CHAIN

94682-51001-00

Unavailable

30

BEARING

93306-30212-00

Unavailable

31

SEAL,OIL

93106-26005-00

Unavailable

32

COLLAR

90387-15524-00

Unavailable

33

COVER, DUST

401-25367-00-00

Unavailable

34

PULLER, CHAIN (L.H)

1W2-25388-01-00

Unavailable

35

WASHER (525)

90201-15238-00

Unavailable

36

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable
