1978 Yamaha DT125E (DT125E) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1978 Yamaha DT125E (DT125E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

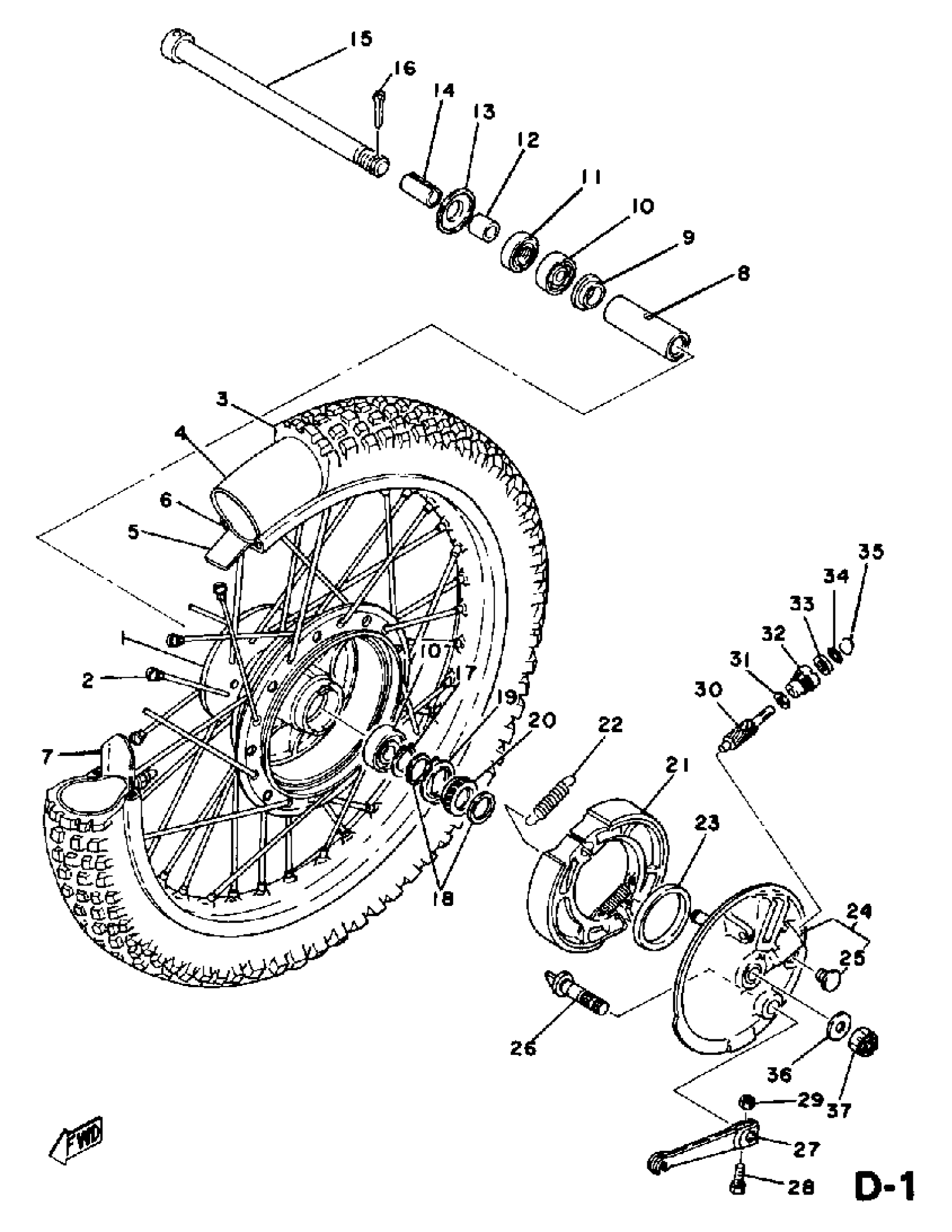

1978 Yamaha DT125E (DT125E) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

2A6-25111-00-98

1
Out of stock

2

SPOKE SET

2A6-25104-01-00

—

$107.49

In stock

3

TIRE (MCS 2.75-21 4PR TW27)

94127-212X0-00

1
Out of stock

4

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

5

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

6

RIM

94416-21006-00

—

$134.94

In stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

10

BEARING

93306-30102-00

1
Out of stock

11

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

12

COLLAR 1832518300

90387-12095-00

1

$4.63

In stock

13

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

14

COLLAR

90387-12100-00

1
Out of stock

15

SHAFT, WHEEL

401-25181-01-00

—

$58.12

In stock

16

PIN, COTTER

91490-30030-00

—

$7.15

In stock

17

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

18

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

19

CLUTCH, METER

183-25149-00-00

—
Out of stock

20

GEAR, DRIVE

37A-25135-00-00

1
Out of stock

21

BRAKE SHOE SET-2PCS

437-W2536-00-00

1
Out of stock

22

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

23

SEAL,OIL

93105-47007-00

—
Out of stock

24

BRAKE SHOE PLT ASSEMBLY (2A6-25120-00-98)

2A6-25016-00-98

1
Out of stock

25

GROMMET (397)

90480-10068-00

—

$6.77

In stock

26

CAMSHAFT

2RH-25351-00-00

—

$29.14

In stock

27

LEVER, CAM SHAFT

2N6-25155-00-00

—

$199.85

In stock

28

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

29

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

30

GEAR, METER

37A-25138-00-00

1
Out of stock

31

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

32

BUSHING

109-25136-00-00

—

$8.78

In stock

33

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

34

O-RING (26H)

93210-14579-00

—

$5.69

In stock

35

RING, STOP

102-25137-00-00

—
Out of stock

36

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

37

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock
