1978 Yamaha DT125E (DT125E) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1978 Yamaha DT125E (DT125E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

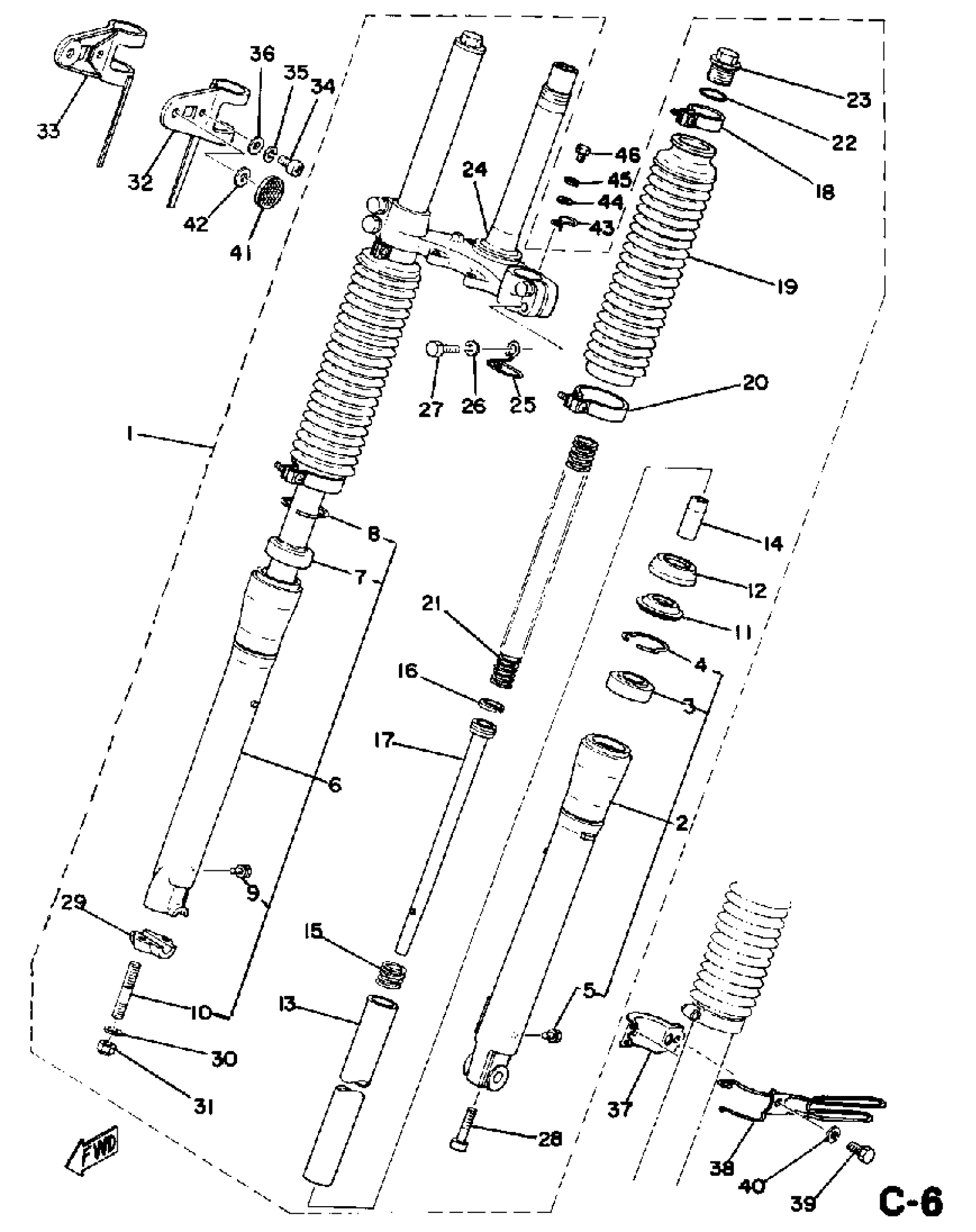

1978 Yamaha DT125E (DT125E) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

2A8-23101-40-00

1
Out of stock

2

TUBE, OUTER 1

(2A6-23126-00-38)

1
Out of stock

3

OIL SEAL

2A6-23145-00-00

1

$26.42

In stock

4

CLIP, OIL SEAL

2A6-23156-00-00

1

$8.70

In stock

5

PLUG, DRAIN

2A6-23119-00-00

1

$7.51

In stock

6

TUBE, OUTER 2

(2A6-23136-00-38)

1
Out of stock

7

OIL SEAL

2A6-23145-00-00

1

$26.42

In stock

8

CLIP, OIL SEAL

2A6-23156-00-00

1

$8.70

In stock

9

PLUG, DRAIN

2A6-23119-00-00

1

$7.51

In stock

10

.. BOLT, STUD

90116-08260-00

1
Out of stock

11

SEAL, DUST

2A6-23144-00-00

1

$22.96

In stock

12

. GUIDE, BOOT

2A6-23193-00-00

1
Out of stock

13

. TUBE, INNER 1

2A6-23124-00-00

1
Out of stock

14

. SPACER, OIL LOCK

1L9-23166-00-00

1
Out of stock

15

SPRING, REBOUND

(2A6-23151-00-00)

1
Out of stock

16

. RING, PISTON FRTFRK

2A6-23157-00-00

1
Out of stock

17

CYLINDER, FRTFRK

(2A6-23170-00-00)

1
Out of stock

18

BAND

3RW-23192-00-00

—

$21.34

In stock

19

. BOOT, FRONT FORK

2A6-23191-00-00

1
Out of stock

20

. BAND

2A6-23489-01-00

1
Out of stock

21

. SPRING, FRONT FORK

2A6-23141-00-00

1
Out of stock

22

O-RING

(2A6-23147-00-00)

1
Out of stock

23

BOLT, CAP

(2A6-23111-00-00)

1
Out of stock

24

. UNDER BRACKET (2A6-23340-00-33)

2A6-23340-00-90

1
Out of stock

25

. HOLDER, CABLE

2A6-23317-00-00

1
Out of stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

BOLT(3JP)

97024-08035-00

—
Out of stock

28

BOLT

3M7-23181-00-00

—

$7.75

In stock

29

HOLDER, AXLE

(2A6-23167-01-00)

1
Out of stock

30

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

31

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

32

STAY, HEADLIGHT 1

2A6-84118-00-00

1
Out of stock

33

STAY, HEADLIGHT 2

2A6-84119-00-00

1
Out of stock

34

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

37

HOLDER, CABLE 2

2A6-23319-00-00

1
Out of stock

38

HOLDER, CABLE 1

2A6-23318-00-00

1
Out of stock

39

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

40

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

41

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

42

WASHER, PLATE(3AJ)

90202-05191-00

—

$6.01

In stock

43

CLAMP

(2A6-83595-00-00)

1
Out of stock

44

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

45

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

46

BOLT (661)

97013-06012-00

—

$4.71

In stock
