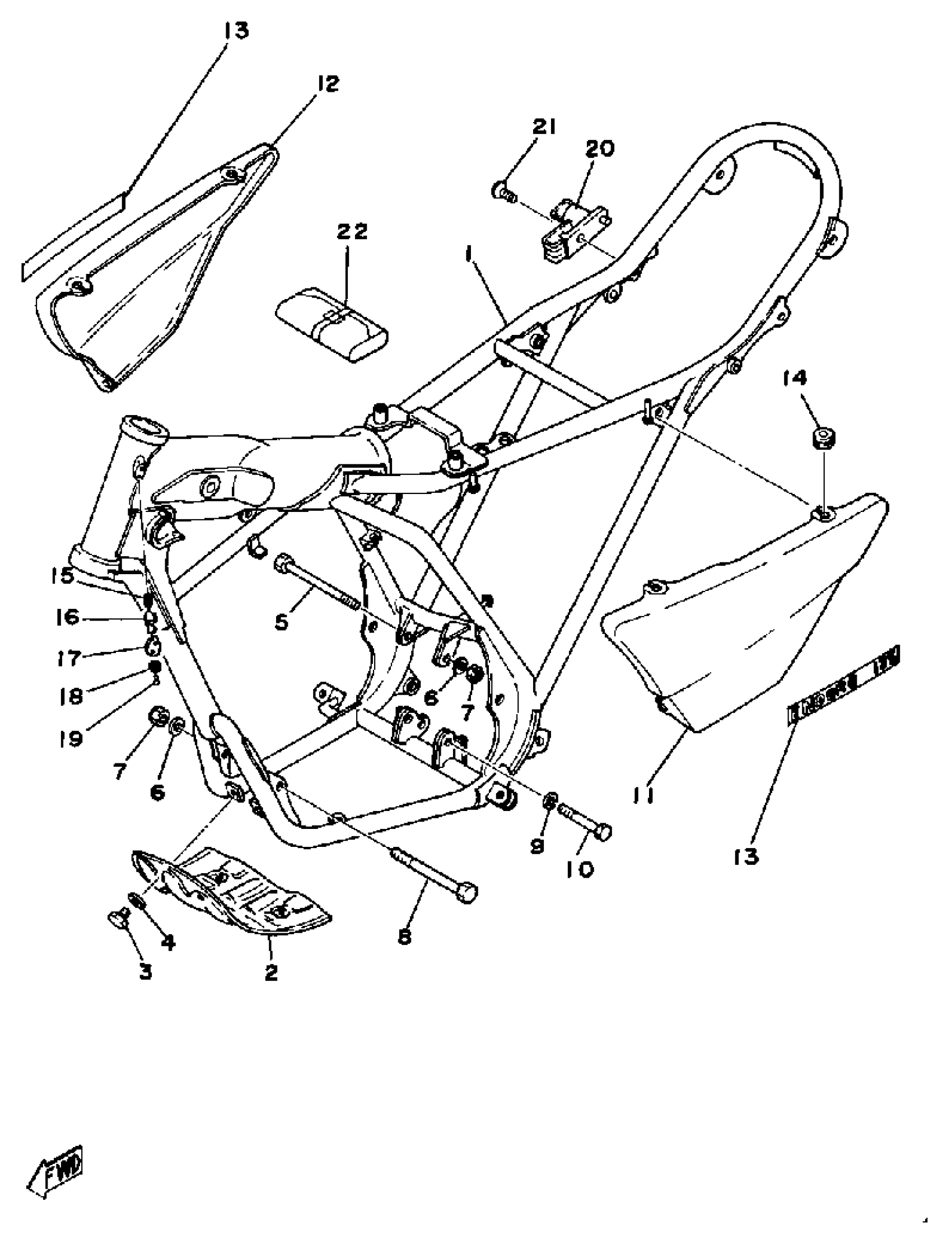

Yamaha DT125E (DT125E) 1978 FRAME SIDE COVER Diagram

#

Description
Price

1

FRAME

(2A6-21110-00-33)

Unavailable

2

PROTECTOR, ENGINE

(2A6-21471-00-90)

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

6

WASHER, PLAIN

92990-08200-00

Unavailable

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

BOLT (1W1)

90105-08099-00

$5.60

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

BOLT

90105-10037-00

Unavailable

11

COVER, SIDE 1

2A6-21711-00-01

Unavailable

11

COVER, SIDE 1

2A6-21711-10-01

Unavailable

12

COVER, SIDE 2

2A6-21721-00-01

Unavailable

12

COVER, SIDE 2

2A6-21721-10-01

Unavailable

13

EMBLEM 6

2A6-21786-00-00

Unavailable

14

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

15

SPRING, CONICAL (1E6)

90502-09024-00

Unavailable

16

STEERING LOCK ASSY

2A6-23408-00-00

Unavailable

17

CAP, HANDLE LOCK

3DM-23484-00-00

Unavailable

18

WASHER, WAVE

90206-04003-00

Unavailable

19

RIVET 214234830000

90269-04003-00

Unavailable

20

HELMET HANGER ASSY

5H0-21308-01-00

Unavailable

21

SCREW, OVAL HEAD

98603-06018-00

Unavailable

22

TOOL KIT

2A6-W2810-00-00

Unavailable
